Home > products > Hybrid Stepper Motor > 57x57x76mm Nema 23 Stepper Motor 1.8 Degree 2 Phase 2N.M High Torque

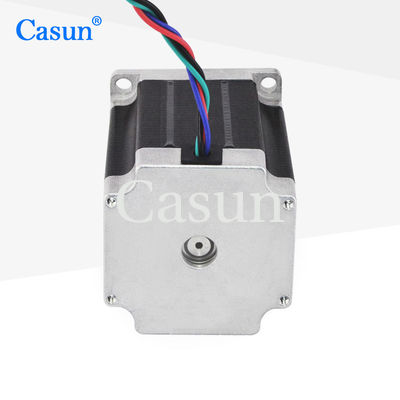

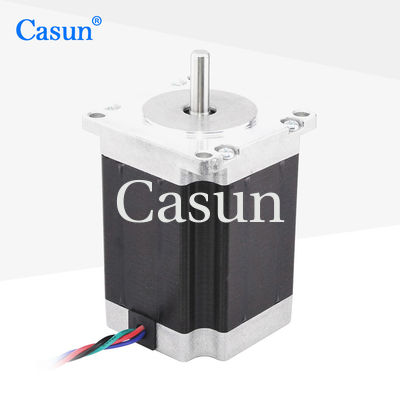

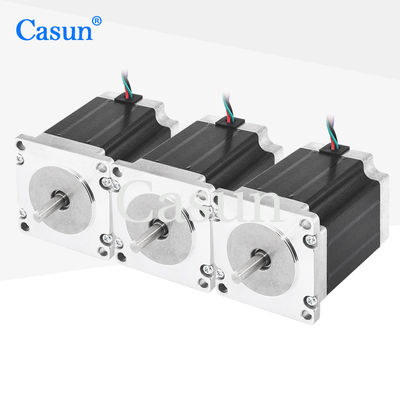

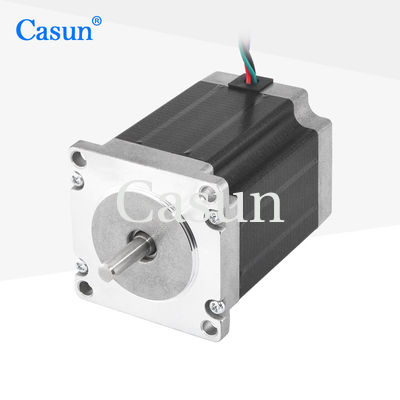

57x57x76mm Nema 23 Stepper Motor 1.8 Degree 2 Phase 2N.M High Torque
57x57x76mm Nema 23 Stepper Motor 1.8 Degree 2 Phase 2N.M High Torque
57x57x76mm Nema 23 Stepper Motor 1.8 Degree 2 Phase 2N.M High Torque
57x57x76mm Nema 23 Stepper Motor 1.8 Degree 2 Phase 2N.M High Torque
57x57x76mm Nema 23 Stepper Motor 1.8 Degree 2 Phase 2N.M High Torque

57x57x76mm Nema 23 Stepper Motor 1.8 Degree 2 Phase 2N.M High Torque

Product Details

Place of Origin: CHINA

Brand Name: Casun

Certification: CE,ROHS,ISO

Model Number: 57SHD4816-21B

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: $3.14-$5

Packaging Details: Carton:36x29x14cm

Delivery Time: 7-15 days

Payment Terms: D/A, T/T, L/C, D/P

Supply Ability: 40000+PCS+Month

Get Best Price

Product Details

Product Description
Product Details
Highlight:

2 Phase Nema 23 Stepper Motor

,

High Torque Nema 23 Stepper Motor

Step Angel:
1.8°
Holding Torque:
2.0N.m
Current:
3.0A
Motor Length:
76mm
Shaft:
Milling Flat Shaft 21mm Length
Shaft Diameter:
8mm
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Step Angel:
1.8°
Holding Torque:
2.0N.m
Current:
3.0A
Motor Length:
76mm
Shaft:
Milling Flat Shaft 21mm Length
Shaft Diameter:
8mm
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Product Description

57x57x76mm Nema 23 Stepper Motor 1.8 Degree 2 Phase 2N.M High Torque

The stepper motor has good controllability and can be driven by appropriate current and voltage.

3D printers, machine tools, CNC robots.



Features:

  • High torque and high precision

  • Each model of our stepper motor is suitable for various applications

  • We possess expertise in drivetrain solutions

  • With 12 years of operation in China, we have served over 800 customers

  • Your purchase includes a ten-year warranty, ensuring confidence





Motor Specifications



Step Angel

1.8 °

Fram Size

57 mm

Number of Phase

2 Phase

Rated Current

3.1 A

Holding Torque

2.3 N.m

Resistance

1.4 ohm

Inductance

3.6 mH

Rotor Inertia

460 g-cm²

Motor weight1

1 kg

Number of leads

4

Connection

Bipolar

Appearance

57x57x76mm Nema 23 Stepper Motor 1.8 Degree 2 Phase 2N.M High Torque 0

Dimensions

57x57x76mm Nema 23 Stepper Motor 1.8 Degree 2 Phase 2N.M High Torque 1


Operating Specifications

Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min







Torque Curves













Submodels



Model Holding Torque Step Angle Length Type of Shaft Rated Current
57SHD4013-21B 0.6N.m 1.8° 41mm D Shaft-21mm 1.0A
57SHD4415-21B 1.1N.m 1.8° 54mm D Shaft-21mm 3.0A
57SHD4816-21B 2.0N.m 1.8° 76mm D Shaft-21mm 3.0A
57SHD4913-21B 2.5N.m 1.8° 83mm D Shaft-21mm 3.0A
57SHD4934-20B 3.0N.m 1.8° 100mm D Shaft-20mm 3.0A



Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder

Brake

Gearbox

Shaft
57x57x76mm Nema 23 Stepper Motor 1.8 Degree 2 Phase 2N.M High Torque 2 57x57x76mm Nema 23 Stepper Motor 1.8 Degree 2 Phase 2N.M High Torque 3 57x57x76mm Nema 23 Stepper Motor 1.8 Degree 2 Phase 2N.M High Torque 4 57x57x76mm Nema 23 Stepper Motor 1.8 Degree 2 Phase 2N.M High Torque 5



Please click the "Get a quote" button below to tell us your requirements.
