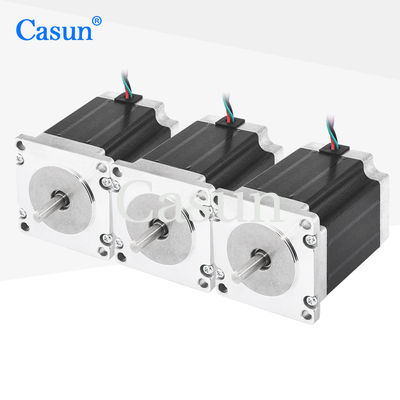

2 Phase 1.8 Degree Hybrid Stepper Motor NEMA 23 Torque 2.3Nm

name

2 Phase 1.8 Degree Hybrid Stepper Motor NEMA 23 Torque 2.3Nm

Brand Name: Casun
Model Number: 57SHD4834-20B
MOQ: 1PC
Price: $3.14-$5
Payment Terms: D/A, T/T, L/C, D/P
Supply Ability: 40000+PCS+Month
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE,ROHS,ISO
Step Angel:
1.8°
Holding Torque:
2.3N.m
Current:
4.4A
Motor Length:
76mm
Shaft:
Milling Flat Shaft 20mm Length
Shaft Diameter:
6.35mm
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Packaging Details:
Carton:36x29x14cm
Highlight:

1.8 Degree Hybrid Stepper Motor

,

NEMA 23 Hybrid Stepper Motor

,

2.3Nm Torque Hybrid Stepper Motor

Product Description

Hybrid Motor 2 Phase 1.8 Degree Stepper Motor NEMA 23 Torque 2.3Nm

The NEMA23 stepper motor uses step-by-step motion technology, which produces lower sound and is more suitable for noise sensitive environments.
Involving robots, automation equipment, medical equipment, textile machines.



Features:

  • High torque and high precision

  • We are actively seeking dealers

  • We provide customized services and are open to contract manufacturing

  • Each model of our stepper motor is suitable for diverse applications

  • Your purchase includes a ten-year warranty, ensuring confidence





Motor Specifications



Step Angel

1.8 °

Fram Size

57 mm

Number of Phase

2 Phase

Rated Current

4.4 A

Holding Torque

2.3 N.m

Resistance

0.76 ohm

Inductance

2.5 mH

Rotor Inertia

460 g-cm²

Motor weight1

1 kg

Number of leads

4

Connection

Bipolar

Appearance

2 Phase 1.8 Degree Hybrid Stepper Motor NEMA 23 Torque 2.3Nm 0

Dimensions

2 Phase 1.8 Degree Hybrid Stepper Motor NEMA 23 Torque 2.3Nm 1


Operating Specifications

Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min







Torque Curves













Submodels



Model Holding Torque Step Angle Length Type of Shaft Rated Current
57SHD4013-21B 0.6N.m 1.8° 41mm D Shaft-21mm 1.0A
57SHD4415-21B 1.1N.m 1.8° 54mm D Shaft-21mm 3.0A
57SHD4816-21B 2.0N.m 1.8° 76mm D Shaft-21mm 3.0A
57SHD4913-21B 2.5N.m 1.8° 83mm D Shaft-21mm 3.0A
57SHD4934-20B 3.0N.m 1.8° 100mm D Shaft-20mm 3.0A



Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder

Brake

Gearbox

Shaft
2 Phase 1.8 Degree Hybrid Stepper Motor NEMA 23 Torque 2.3Nm 2 2 Phase 1.8 Degree Hybrid Stepper Motor NEMA 23 Torque 2.3Nm 3 2 Phase 1.8 Degree Hybrid Stepper Motor NEMA 23 Torque 2.3Nm 4 2 Phase 1.8 Degree Hybrid Stepper Motor NEMA 23 Torque 2.3Nm 5



Please click the "Get a quote" button below to tell us your requirements.



Tags:

2 Phase Bipolar Stepper Motor

Nema 6 Bipolar Stepper Motor

1.8 Degree Hybrid Stepper Motor
