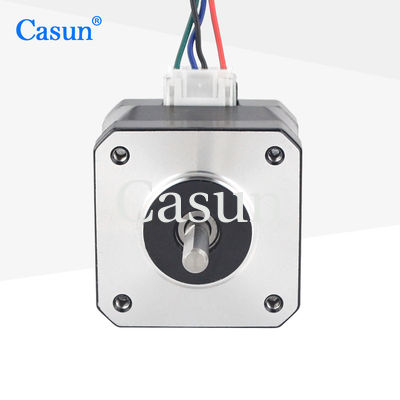

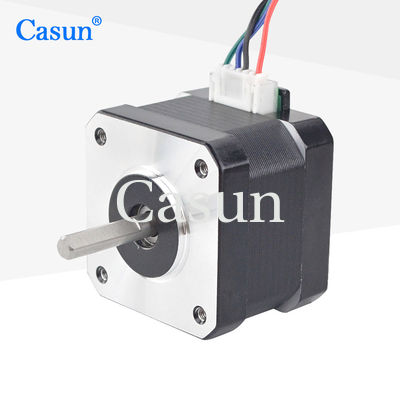

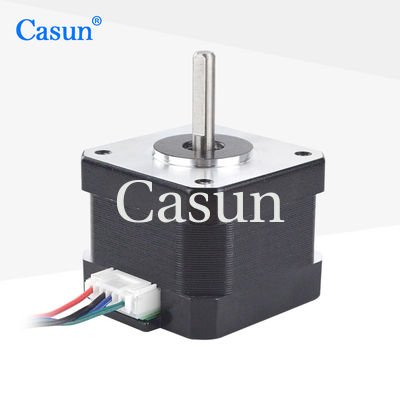

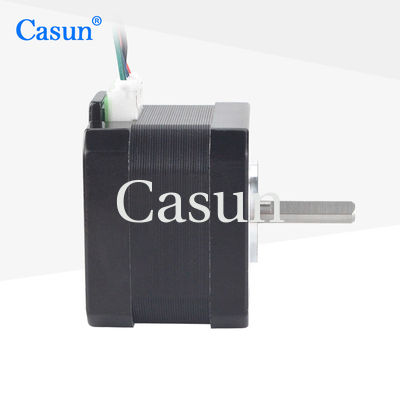

4 Wire DC Motor NEMA 17 Step Motor 34mm Body For Security Systems

name

4 Wire DC Motor NEMA 17 Step Motor 34mm Body For Security Systems

Brand Name: Casun
Model Number: 42SHD0034-20BH
MOQ: 1PC
Price: $3.14-$5
Payment Terms: D/A, T/T, L/C, D/P
Supply Ability: 40000+PCS+Month
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE,ROHS,ISO
Step Angel:
1.8°
Holding Torque:
300mN.m
Current:
1.0A
Motor Length:
34mm
Shaft:
Milling Flat Shaft 20mm Length
Rated Voltage:
5.0V
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Packaging Details:
Carton:36x29x14cm
Highlight:

DC Motor NEMA 17 Step Motor

,

34mm Body NEMA 17 Step Motor

Product Description
4 Wire DC Motor NEMA 17 Step Motor 34mm Body For Security Systems
The NEMA 17 stepper motor has a small size but can generate considerable torque. Ideal for scientific instruments, automation equipment, medical equipment, and security systems.
Key Features
  • High torque and high precision
  • Every model adapts to various situations
  • Available in single or double shaft versions
  • Engineering support within two days for effective solutions
  • Dealer partnerships actively pursued
Motor Specifications
Step Angle 1.8°
Frame Size 42 mm
Number of Phase 2 Phase
Rated Current 1.0 A
Holding Torque 300 mN.m
Resistance 5.0 ohm
Inductance 6.2 mH
Rotor Inertia 38 g-cm²
Motor Weight 0.2 kg
Number of Leads 4
Connection Bipolar
Appearance
4 Wire DC Motor NEMA 17 Step Motor 34mm Body For Security Systems 0
Dimensions
4 Wire DC Motor NEMA 17 Step Motor 34mm Body For Security Systems 1
Operating Specifications
Step Angle: 1.8°
Maximum Temperature: 80°C maximum
Ambient Temperature: -20°C to 50°C
Storage Temperature: -20°C to 100°C
Humidity Range: 85% or less, non-condensing
Magnet Wire Insulation: Class B 130°C
Insulation Resistance: 100M Ohm at 500 VDC
Dielectric Strength: 500 VDC for 1 min
Available Models
Model Holding Torque Step Angle Motor Length Type of Shaft Rated Current
42SHD4950 0.13N.m 1.8° 20mm D Shaft-20mm 1.0A
42SHD4003 0.26N.m 1.8° 34mm D Shaft-20mm 0.4A
42SHD0261 0.45N.m 1.8° 40mm D Shaft-20mm 1.68A
42SHD4425 0.59N.m 1.8° 48mm D Shaft-24mm 2.0A
42SHD4813 0.8N.m 1.8° 60mm D Shaft-24mm 2.1A
Customization Options
If our standard motor cannot meet your needs, we can customize the motor according to your requirements. Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.
Encoder
4 Wire DC Motor NEMA 17 Step Motor 34mm Body For Security Systems 2
Brake
4 Wire DC Motor NEMA 17 Step Motor 34mm Body For Security Systems 3
Gearbox
4 Wire DC Motor NEMA 17 Step Motor 34mm Body For Security Systems 4
Shaft
4 Wire DC Motor NEMA 17 Step Motor 34mm Body For Security Systems 5
Please click the button below to tell us your requirements.
