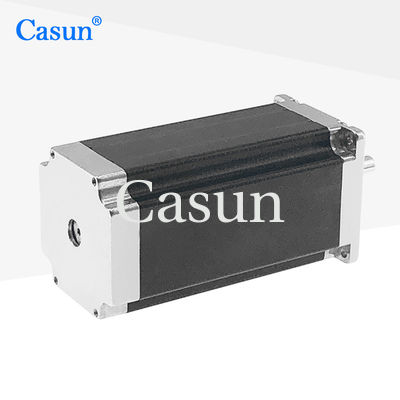

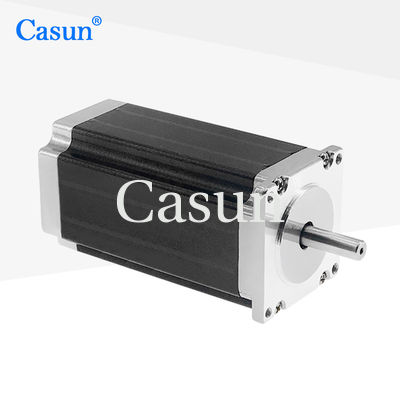

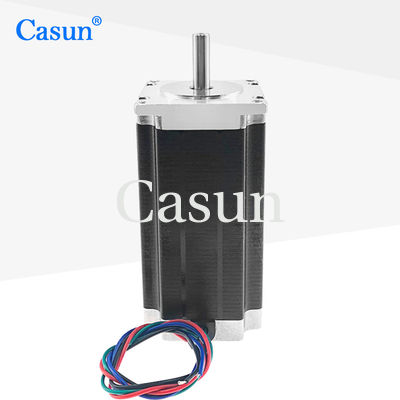

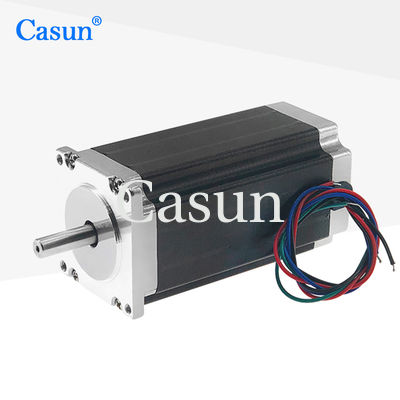

100mm body Nema 23 Stepper Motor 3.3N.M For Cnc Kit Dc Motor

100mm body Nema 23 Stepper Motor 3.3N.M For Cnc Kit Dc Motor

Brand Name:	Casun
Model Number:	57SHD4934-20B
MOQ:	10pcs
Price:	US $19.00 - 10.00/ Piece
Payment Terms:	L/C, D/A, D/P, T/T
Supply Ability:	100000/pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, ISO, ROHS

Shaft:

8mm

Torque:

3.3N.m

Current:

Voltage:

8.3V

Body:

100mm

Application:

CNC Machine

Customized:

The Motor Can Be Designed &manufactured With Customized Request.

Packaging Details:

Carton:36x29x14cm

Highlight:

100mm Body Nema 23 Stepper Motor

3.3N.M Nema 23 Stepper Motor

Product Description

100mm body Nema 23 Stepper Motor 3.3N.M For CNC Kit DC Motor

Nema 23 Stepper Motor, 57×57×100mm 1.8 Degree 2 Phase, 3.3N.m Holding Torque. High Quality Supplier Nema 23 Stepper Motors 3.3N.M For CNC Kit DC Motor.

The 57mm deceleration stepper motor combines the characteristics of stepper motors and reducers, enabling precise positioning control and being suitable for applications that require high-precision positioning. Open-loop control eliminates the need for position feedback, thereby reducing power consumption.

Features

Bipolar or unipolar versions are available
We offer custom services and accept contract manufacturing. Wanted dealers!
Available in single- or double-shaft versions
Professional drivetrain solution specialist
Customizations on request

Dimensions

Motor Specifications

Step Angle	1.8°
Frame Size	57 mm
Number of Phase	2 Phase
Rated Current	3 A
Holding Torque	3.3 N.m
Resistance	2.8 Ω
Inductance	11 mH
Rotor Inertia	650 g·cm²
Motor Weight	1.3 kg
Shaft	20 mm
Connection	Bipolar

Operating Specifications

Motor

Step Angle	1.8°
Maximum Temperature	80°C maximum
Ambient Temperature	-20°C to 50°C
Storage Temperature	-20°C to 100°C
Humidity Range	85% or less, non-condensing
Magnet Wire Insulation	Class B 130°C
Insulation Resistance	100M Ω at 500 VDC
Dielectric Strength	500 VDC for 1 min

Gear Box

Housing Material	Metal
Bearing at Output	Ball Bearings
Max. Radial Load (12mm from flange)	≤80N
Max. Shaft Axial Load	≤30N
Radial Play of Shaft (near to Flange)	≤0.06mm
Axial Play of Shaft	≤0.3mm
Backlash at No-load	1.5°

Submodels

Motor Length	Length of Gearbox	Ratio	Efficiency
34 mm	27.2 mm	3.71	90%
40 mm		5.18	90%
48 mm		13.76	80%
60 mm		19.2	80%
35 mm	26.8	42.7	70%
42.7 mm	51	71	70%
	99.5	139	70%

Customization Options

If our standard motor cannot meet your needs, we can customize the motor according to your requirements.

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options

Please click the "Get a quote" button below to tell us your requirements.
