Home > products > Hybrid Stepper Motor > Nema 17 Hybrid Driver Motor 2 Phase 1.8 Degrees 1.33A For 3D Printer

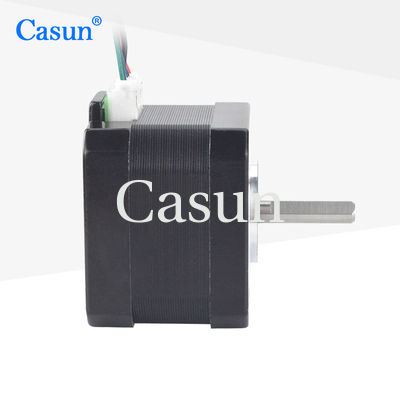

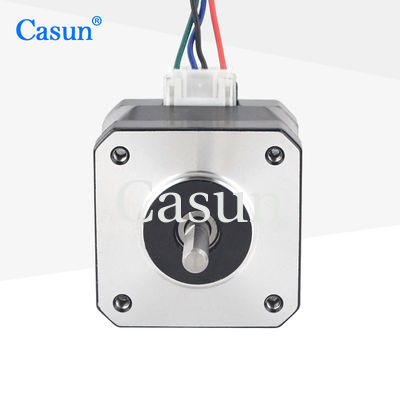

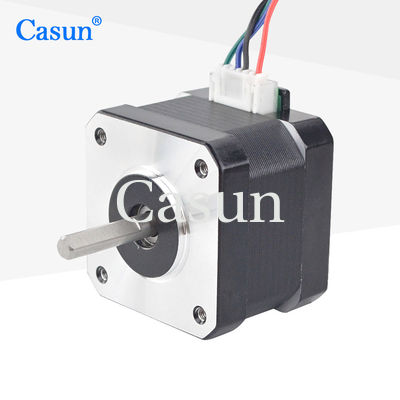

Nema 17 Hybrid Driver Motor 2 Phase 1.8 Degrees 1.33A For 3D Printer
Nema 17 Hybrid Driver Motor 2 Phase 1.8 Degrees 1.33A For 3D Printer
Nema 17 Hybrid Driver Motor 2 Phase 1.8 Degrees 1.33A For 3D Printer
Nema 17 Hybrid Driver Motor 2 Phase 1.8 Degrees 1.33A For 3D Printer
Nema 17 Hybrid Driver Motor 2 Phase 1.8 Degrees 1.33A For 3D Printer
Nema 17 Hybrid Driver Motor 2 Phase 1.8 Degrees 1.33A For 3D Printer

Nema 17 Hybrid Driver Motor 2 Phase 1.8 Degrees 1.33A For 3D Printer

Product Details

Place of Origin: CHINA

Brand Name: Casun

Certification: CE,ROHS,ISO

Model Number: 42SHD0079-24BD

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: $3.14-$5

Packaging Details: Carton:36x29x14cm

Delivery Time: 7-15 days

Payment Terms: D/A, T/T, L/C, D/P

Supply Ability: 40000+PCS+Month

Get Best Price

Product Details

Product Description
Product Details
High Light:

Nema 17 Hybrid Driver Motor

,

1.8 Degrees Hybrid Driver Motor

Step Angel:
1.8°
Holding Torque:
320mN.m
Current:
1.33A
Motor Length:
34mm
Shaft:
Milling Flat Shaft 20mm Length
Rated Voltage:
3.6V
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Step Angel:
1.8°
Holding Torque:
320mN.m
Current:
1.33A
Motor Length:
34mm
Shaft:
Milling Flat Shaft 20mm Length
Rated Voltage:
3.6V
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Product Description

Nema17 Stepper Motor 2 Phase 1.8 Degrees 1.33A 3D Printer Hybrid Driver Motor

The NEMA17 has a moderate size and is suitable for installation in devices with limited space, while also providing high power output.

Printers, engraving machines, 3D printers, and robots.



Features:

  • Our engineers will contact you within two days to offer the most effective solution

  • Customized service offerings

  • Available in single or double shaft versions

  • Wanted dealers! !

  • We actively pursue dealers!





Motor Specifications

Step Angel

1.8 °

Fram Size

42 mm

Number of Phase

2 Phase

Rated Current

1.33 A

Holding Torque

320 mN.m

Resistance

2.7 ohm

Inductance

4.2 mH

Rotor Inertia

38 g-cm²

Motor weight

0.2 kg

Number of leads

4

Connection

Bipolar

Appearance

Nema 17 Hybrid Driver Motor 2 Phase 1.8 Degrees 1.33A For 3D Printer 0

Dimensions

Nema 17 Hybrid Driver Motor 2 Phase 1.8 Degrees 1.33A For 3D Printer 1


Operating Specifications

Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min







Torque Curves













Submodels

Model Holding Torque Step Angle Motor Length Type of Shaft Rated Current
42SHD4950 0.13N.m 1.8° 20mm D Shaft-20mm 1.0A
42SHD4003 0.26N.m 1.8° 34mm D Shaft-20mm 0.4A
42SHD0261 0.45N.m 1.8° 40mm D Shaft-20mm 1.68A
42SHD4425 0.59N.m 1.8° 48mm D Shaft-24mm 2.0A
42SHD4813 0.8N.m 1.8° 60mm D Shaft-24mm 2.1A





Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder

Brake

Gearbox

Shaft
Nema 17 Hybrid Driver Motor 2 Phase 1.8 Degrees 1.33A For 3D Printer 2 Nema 17 Hybrid Driver Motor 2 Phase 1.8 Degrees 1.33A For 3D Printer 3 Nema 17 Hybrid Driver Motor 2 Phase 1.8 Degrees 1.33A For 3D Printer 4 Nema 17 Hybrid Driver Motor 2 Phase 1.8 Degrees 1.33A For 3D Printer 5



Please click the "Get a quote" button below to tell us your requirements.
