Nema 14 hybrid stepper motors 0.4 Amp 9.6 Voltage dc motor with CE

Nema 14 hybrid stepper motors 0.4 Amp 9.6 Voltage dc motor with CE

Brand Name:	Casun
Model Number:	P35SHD0111-28
MOQ:	1PC
Price:	$4.00-$6.4
Payment Terms:	D/A, T/T, L/C, D/P
Supply Ability:	40000+PCS+Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE,ROHS,ISO

Step Angel:

1.8°

Holding Torque:

220mN.m

Current:

0.4A

Rated Voltage:

9.6V

Motor Length:

34mm

Shaft:

28mm Length

Customized:

The Motor Can Be Designed &manufactured With Customized Request.

Packaging Details:

Carton:36x29x14cm

Highlight:

Casun Unipolar Nema 14 Stepper Motors

Nema 14 Stepper Motors Sliver

Product Description

Nema 14 Hybrid Stepper Motors 0.4 Amp 9.6 Voltage DC Motor with CE

Product Overview

Casun Unipolar Nema 14 Stepper Motors For 3D Printer With CE/DC Motor Sliver

Casun 0.4A 9.6V NEMA 14 Hybrid Stepper Motor for Stage Lighting, 35x35x34mm

Stepper Motor for 3D printer 35x35x34mm 1.8 Degree NEMA 14 Ordinary Model 0.20N.m

In a range of sizes, the 35mm Hybrid Stepper Motor Series provides strong holding torque. To lessen vibration and achieve a greater step resolution, use a microstepping driver. Select a standard version or ask for a specially configured version.

Key Features

Available in bipolar or unipolar forms
Hybrid design for steppers
Available in configurations with a single shaft or two shafts
Certified by RoHS and CE
On-demand customizations

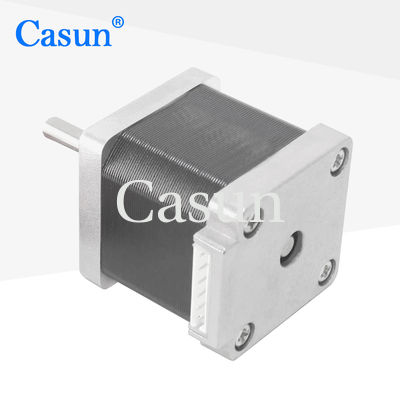

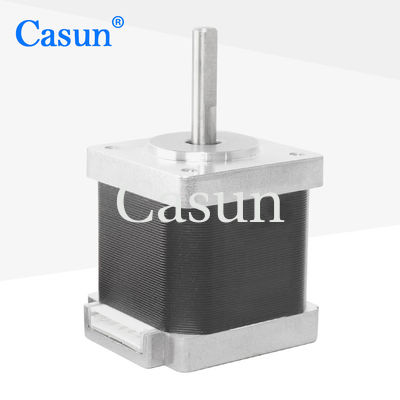

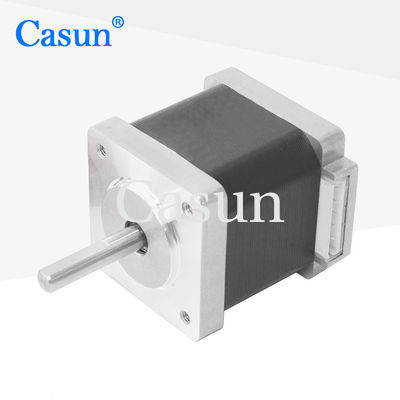

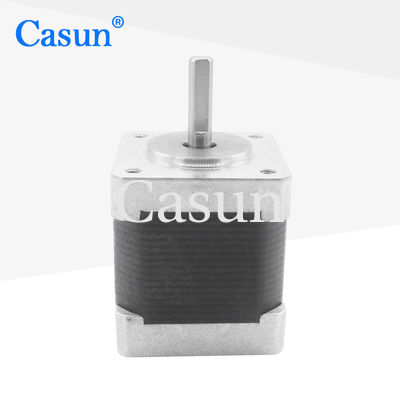

Product Appearance

Dimensions

Motor Specifications

Specification	Value
Step Angle	1.8°
Frame Size	35 mm
Number of Phase	2 Phase
Rated Current	0.4 A
Holding Torque	200 mN.m
Resistance	19 ohm
Inductance	39.5 mH
Rotor Inertia	12 g-cm²
Motor Weight	0.15 kg
Number of Leads	4
Connection	Unipolar

Torque Curves

Download torque curve data sheets for detailed performance specifications.

Available Options

Encoder

Brake

Gearbox

Connector

Customization Services

If our standard motor cannot meet your needs, we can customize the motor according to your requirements.

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Get a Quote

Frequently Asked Questions

Who are we?

We are based in Guangdong, China, starting from 2011. We sell to Domestic Market (63.00%), Western Europe (12.00%), North America (9.00%), Eastern Asia (8.00%), Northern Europe (2.00%), and other global markets. There are about 51-100 people in our office.

How can we guarantee quality?

Always a pre-production sample before mass production; Always final inspection before shipment.

What can you buy from us?

Stepper Motor, BLDC Motor

Why should you buy from us not from other suppliers?

We are specialized in producing and selling stepper motors for more than 11 years.

What services can we provide?

Accepted Delivery Terms: FOB, CFR, CIF, EXW, Express Delivery; Accepted Payment Currency: USD, CNY; Accepted Payment Type: T/T, L/C, D/P D/A, PayPal; Language Spoken: English, Chinese, Japanese
