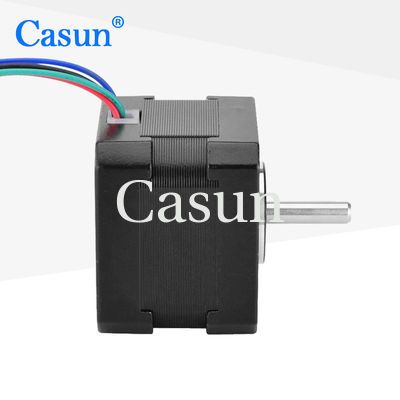

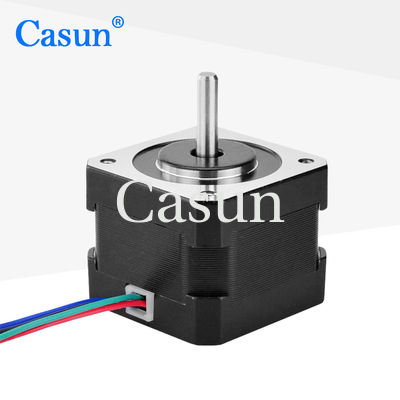

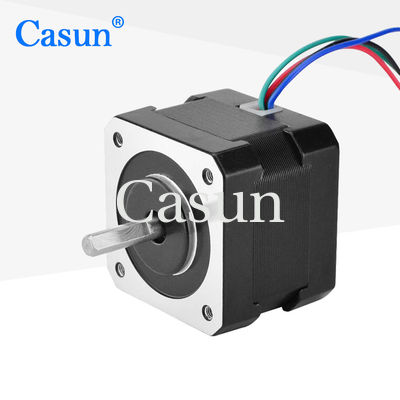

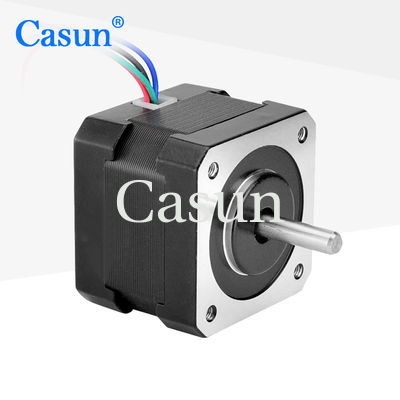

Bipolar 2 Phase NEMA 17 Stepper Motor 1.0A 0.3N.M For Robot

Bipolar 2 Phase NEMA 17 Stepper Motor 1.0A 0.3N.M For Robot

Bipolar NEMA 17 Stepper Motor

0.3N.M NEMA 17 Stepper Motor

Place of Origin:

CHINA

Brand Name:

Casun

Certification:

CE,ROHS,ISO

Model Number:

42SHD4034-20B1H

Contact Us

Request A Quote
Product Details
Step Angel:
1.8°
Holding Torque:
300mN.m
Current:
1.0A
Motor Length:
34mm
Shaft:
Milling Flat Shaft 20mm Length
Payment & Shipping Terms
Minimum Order Quantity
1PC
Price
$3.14-$5
Packaging Details
Carton:36x29x14cm
Delivery Time
7-15 days
Payment Terms
D/A, T/T, L/C, D/P
Supply Ability
40000+PCS+Month
RELATED PRODUCTS
Contact Us
86-020-36907671
Contact Now
Product Description

2 Phase NEMA 17 Stepper Motor 1.0A 0.3N.M For Type Of Robot



In a stationary state, a 42mm stepper motor usually only needs to maintain a small amount of current to maintain its current position.

It can be used for various types of robots, including industrial robots, service robots, and medical robots, to control joint movements.



Features:

  • Bipolar or unipolar versions available

  • Providing personalized services

  • A ten-year warranty for confident purchases

  • CE and RoHS approved

  • Our engineers will contact you within two days to offer the most effective solution

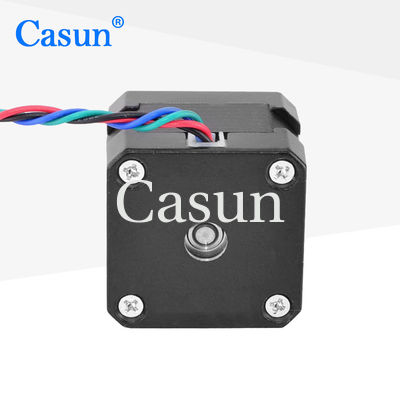

Appearance

Bipolar 2 Phase NEMA 17 Stepper Motor 1.0A 0.3N.M For Robot 0

Dimensions

Bipolar 2 Phase NEMA 17 Stepper Motor 1.0A 0.3N.M For Robot 1

Motor Specifications



Step Angel

1.8 °

Fram Size

42 mm

Number of Phase

2 Phase

Rated Current

1.0 A

Holding Torque

300 mN.m

Resistance

5.0 ohm

Inductance

6.2 mH

Rotor Inertia

38 g-cm²

Motor weight

0.2 kg

Number of leads

4

Connection

Bipolar

Operating Specifications

Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min







Torque Curves













Submodels

Model Holding Torque Step Angle Motor Length Type of Shaft Rated Current
42SHD4950 0.13N.m 1.8° 20mm D Shaft-20mm 1.0A
42SHD4003 0.26N.m 1.8° 34mm D Shaft-20mm 0.4A
42SHD0261 0.45N.m 1.8° 40mm D Shaft-20mm 1.68A
42SHD4425 0.59N.m 1.8° 48mm D Shaft-24mm 2.0A
42SHD4813 0.8N.m 1.8° 60mm D Shaft-24mm 2.1A





Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder

Brake

Gearbox

Shaft

Bipolar 2 Phase NEMA 17 Stepper Motor 1.0A 0.3N.M For Robot 2 Bipolar 2 Phase NEMA 17 Stepper Motor 1.0A 0.3N.M For Robot 3 Bipolar 2 Phase NEMA 17 Stepper Motor 1.0A 0.3N.M For Robot 4 Bipolar 2 Phase NEMA 17 Stepper Motor 1.0A 0.3N.M For Robot 5
