products details

Created with Pixso. Home Created with Pixso. Products Created with Pixso.
Hybrid Stepper Motor
Created with Pixso.

42*42*34mm 2 Phase Stepping Motor Nema 17 0.6A With CE ISO RHO Certification

name

42*42*34mm 2 Phase Stepping Motor Nema 17 0.6A With CE ISO RHO Certification

Brand Name: Casun
Model Number: 42SHD4071-24BH
MOQ: 1PC
Price: $3.14-$5
Payment Terms: D/A, T/T, L/C, D/P
Supply Ability: 40000+PCS+Month
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE,ROHS,ISO
Step Angel:
1.8°
Holding Torque:
320mN.m
Current:
0.6A
Motor Length:
34mm
Shaft:
Milling Flat Shaft 24mm Length
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Packaging Details:
Carton:36x29x14cm
Highlight:

2 Phase Stepping Motor Nema 17

,

0.6A 2 Phase Stepping Motor

Product Description
42×42×34mm 2 Phase Stepping Motor Nema 17 0.6A With CE ISO RHO Certification

The 42mm stepper motor is commonly used in 3D printers to drive the position and movement of the print head. High precision and reliability enable printers to accurately perform printing operations.

Features
  • Bipolar or unipolar versions available
  • We provide customized services and welcome contract manufacturing
  • Focused on drivetrain solutions
  • Professional research and development manufacturing
  • Our engineers will respond within 48 hours to provide the best solution

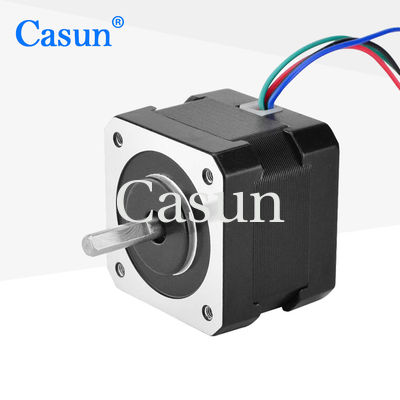

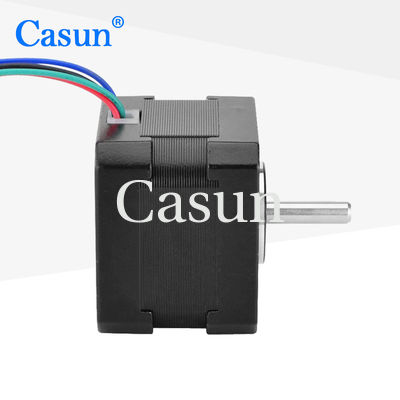

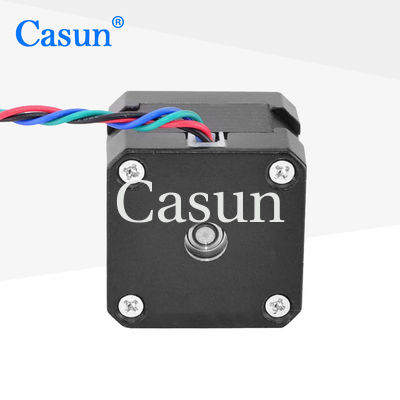

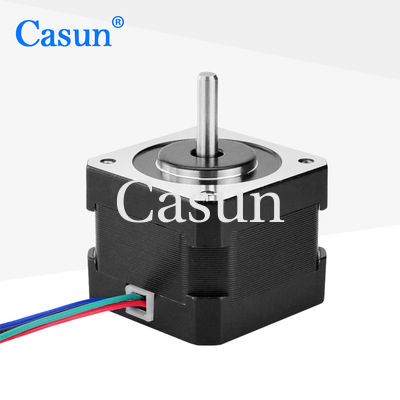

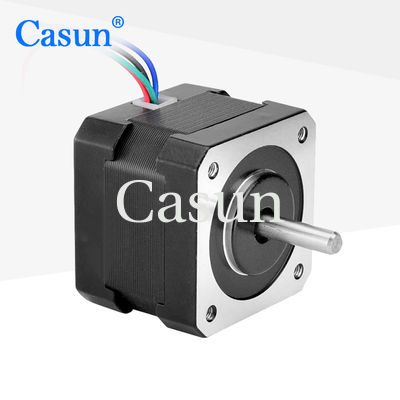

Appearance
42*42*34mm 2 Phase Stepping Motor Nema 17 0.6A With CE ISO RHO Certification 0
Dimensions
42*42*34mm 2 Phase Stepping Motor Nema 17 0.6A With CE ISO RHO Certification 1
Motor Specifications
Step Angle 1.8°
Frame Size 42 mm
Number of Phase 2 Phase
Rated Current 0.6 A
Holding Torque 320 mN.m
Resistance 20 ohm
Inductance 29 mH
Rotor Inertia 38 g-cm²
Motor Weight 0.2 kg
Number of Leads 4
Connection Bipolar
Operating Specifications
Maximum Temperature 80°C maximum
Ambient Temperature -20°C to 50°C
Storage Temperature -20°C to 100°C
Humidity Range 85% or less, non-condensing
Magnet Wire Insulation Class B 130°C
Insulation Resistance 100M Ohm at 500 VDC
Dielectric Strength 500 VDC for 1 min
Submodels
Model Holding Torque Step Angle Motor Length Type of Shaft Rated Current
42SHD4950 0.13N.m 1.8° 20mm D Shaft-20mm 1.0A
42SHD4003 0.26N.m 1.8° 34mm D Shaft-20mm 0.4A
42SHD0261 0.45N.m 1.8° 40mm D Shaft-20mm 1.68A
42SHD4425 0.59N.m 1.8° 48mm D Shaft-24mm 2.0A
42SHD4813 0.8N.m 1.8° 60mm D Shaft-24mm 2.1A
Customization Options

If our standard motor cannot meet your needs, we can customize the motor according to your requirements. Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Encoder
42*42*34mm 2 Phase Stepping Motor Nema 17 0.6A With CE ISO RHO Certification 2
Brake
42*42*34mm 2 Phase Stepping Motor Nema 17 0.6A With CE ISO RHO Certification 3
Gearbox
42*42*34mm 2 Phase Stepping Motor Nema 17 0.6A With CE ISO RHO Certification 4
Shaft
42*42*34mm 2 Phase Stepping Motor Nema 17 0.6A With CE ISO RHO Certification 5
Please click the "Get a quote" button below to tell us your requirements.
Tags:

2 Phase Bipolar Stepper Motor

Nema 6 Bipolar Stepper Motor

2 Phase Stepping Motor Nema 17
