GUANGZHOU FUDE ELECTRONIC TECHNOLOGY CO.,LTD Company Profile
products
Home > products > Hybrid Stepper Motor > 1.0A NEMA 17 Stepper Motor With Encoder 42*42*40mm 12V DC 4 Wires For Robot

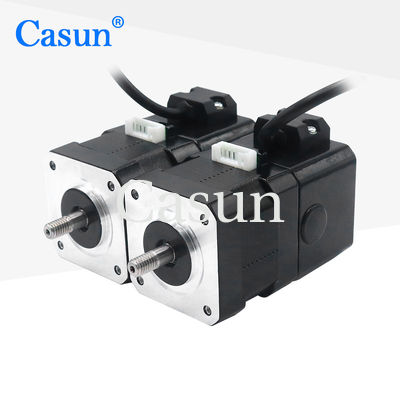

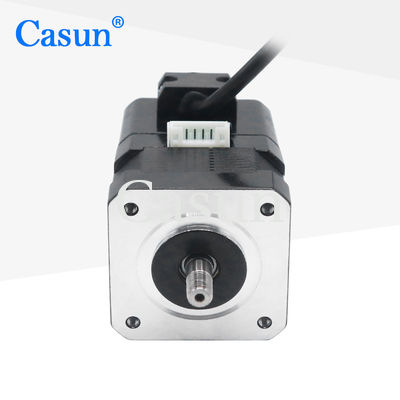

1.0A NEMA 17 Stepper Motor With Encoder 42*42*40mm 12V DC 4 Wires For Robot
1.0A NEMA 17 Stepper Motor With Encoder 42*42*40mm 12V DC 4 Wires For Robot
1.0A NEMA 17 Stepper Motor With Encoder 42*42*40mm 12V DC 4 Wires For Robot
1.0A NEMA 17 Stepper Motor With Encoder 42*42*40mm 12V DC 4 Wires For Robot
1.0A NEMA 17 Stepper Motor With Encoder 42*42*40mm 12V DC 4 Wires For Robot
1.0A NEMA 17 Stepper Motor With Encoder 42*42*40mm 12V DC 4 Wires For Robot
1.0A NEMA 17 Stepper Motor With Encoder 42*42*40mm 12V DC 4 Wires For Robot

1.0A NEMA 17 Stepper Motor With Encoder 42*42*40mm 12V DC 4 Wires For Robot

Product Details

Place of Origin: CHINA

Brand Name: Casun

Certification: CE,ROHS,ISO

Model Number: 42SHD0216-16PH-HP42

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: $3.14-$5

Packaging Details: Carton:36x29x14cm

Delivery Time: 7-15 days

Payment Terms: D/A, T/T, L/C, D/P

Supply Ability: 40000+PCS+Month

Get Best Price

Product Details

Product Description
Product Details
Highlight:

1.0A NEMA 17 Stepper Motor

,

NEMA 17 Stepper Motor With Encoder

Step Angel:
1.8°
Holding Torque:
418m
Current:
1.0A
Motor Length:
33mm
Rated Voltage:
12V DC
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Step Angel:
1.8°
Holding Torque:
418m
Current:
1.0A
Motor Length:
33mm
Rated Voltage:
12V DC
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Product Description

NEMA 17 Stepper Motor With Encoder 42*42*40mm 12V DC 4 Wires For Robot



By adding an encoder, it is easier to detect errors in the stepper motor and take corrective measures to improve the accuracy of the system.

Encoders can help smooth the motion of stepper motors, reducing the possibility of vibration and resonance.



Features:

  • Our specialization lies in providing tailor-made services

  • Providing personalized services

  • We actively pursue partnerships with dealers!

  • Your purchase is backed by a ten-year warranty, ensuring confidence

  • Our engineers will contact you within two days to offer the most effective solution

Appearance

1.0A NEMA 17 Stepper Motor With Encoder 42*42*40mm 12V DC 4 Wires For Robot 0

Dimensions

1.0A NEMA 17 Stepper Motor With Encoder 42*42*40mm 12V DC 4 Wires For Robot 1

Motor Specifications



Step Angel

1.8 °

Fram Size

42 mm

Number of Phase

2 Phase

Rated Current

1.0 A

Holding Torque

418m

Resistance

4.5 ohm

Inductance10

 mH

Rotor Inertia

57 g-cm²

Motor weight

0.24 kg

Number of leads

4

Connection

Bipolar

Operating Specifications

Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min







Torque Curves













Submodels

Model Holding Torque Step Angle Motor Length Type of Shaft Rated Current
42SHD4950 0.13N.m 1.8° 20mm D Shaft-20mm 1.0A
42SHD4003 0.26N.m 1.8° 34mm D Shaft-20mm 0.4A
42SHD0261 0.45N.m 1.8° 40mm D Shaft-20mm 1.68A
42SHD4425 0.59N.m 1.8° 48mm D Shaft-24mm 2.0A
42SHD4813 0.8N.m 1.8° 60mm D Shaft-24mm 2.1A





Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder

Brake

Gearbox

Shaft
1.0A NEMA 17 Stepper Motor With Encoder 42*42*40mm 12V DC 4 Wires For Robot 2 1.0A NEMA 17 Stepper Motor With Encoder 42*42*40mm 12V DC 4 Wires For Robot 3 1.0A NEMA 17 Stepper Motor With Encoder 42*42*40mm 12V DC 4 Wires For Robot 4 1.0A NEMA 17 Stepper Motor With Encoder 42*42*40mm 12V DC 4 Wires For Robot 5



Please click the "Get a quote" button below to tell us your requirements.
