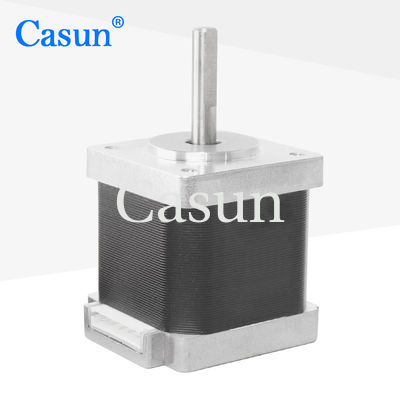

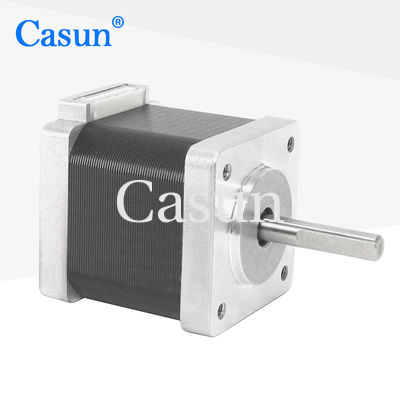

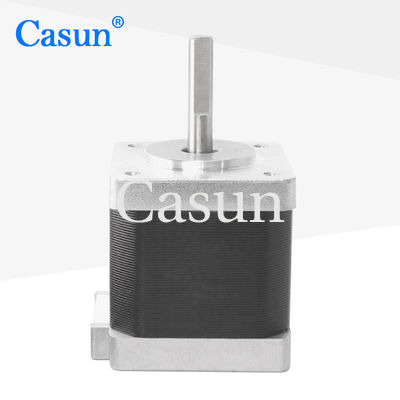

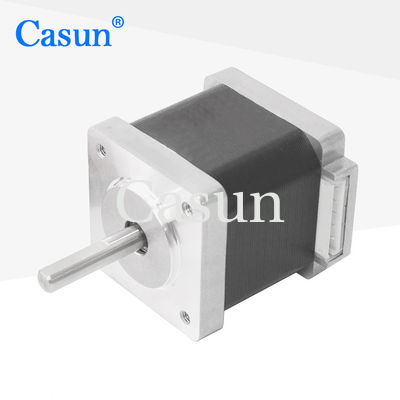

1.0A Micro Stepping Motor 1.8 Degree Hybrid NEMA 14 35mm Body

name

1.0A Micro Stepping Motor 1.8 Degree Hybrid NEMA 14 35mm Body

Brand Name: Casun
Model Number: 35SHD0806-20BV2
MOQ: 1PC
Price: $4.14-$6.98
Payment Terms: D/A, T/T, L/C, D/P
Supply Ability: 40000+PCS+Month
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE,ROHS,ISO
Step Angel:
1.8°
Holding Torque:
140mN.m
Current:
1.0A
Motor Length:
40mm
Shaft:
Milling Flat Shaft 20mm Length
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Packaging Details:
Carton:36x29x14cm
Highlight:

1.0A Micro Stepping Motor

,

1.8 Degree Micro Stepping Motor

Product Description

High Quality 1.8 Degree Hybrid NEMA 14 35mm Body Micro Stepping Motor Arduino

Due to their low vibration and noise levels, they are often used in medical equipment.

The motion of the NEMA14 stepper motor is predictable and repeatable.



Features:

  • Bipolar or unipolar versions available

  • Our engineers will respond within 48 hours to provide the best solution

  • Available in single or double shaft versions

  • To give the best solution, our engineers will contact you within 48 hours

  • Contract manufacturing accepted





Motor Specifications

Step Angel

1.8 °

Fram Size

35 mm

Number of Phase

2 Phase

Rated Current

1.0 A

Holding Torque

140 mN.m

Resistance

2.5 ohm

Inductance

1.9 mH

Rotor Inertia

18 g-cm²

Motor weight

0.21 kg

Number of leads

4

Connection

Bipolar





Appearance



1.0A Micro Stepping Motor 1.8 Degree Hybrid NEMA 14 35mm Body 0

Dimensions

1.0A Micro Stepping Motor 1.8 Degree Hybrid NEMA 14 35mm Body 1



Torque Curves



Download







If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Connector

Please click the "Get  a quote" button below to tell us your requirements.
