products details

Created with Pixso. Home Created with Pixso. Products Created with Pixso.
Hybrid Stepper Motor
Created with Pixso.

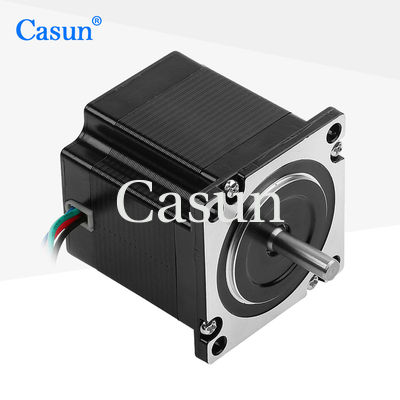

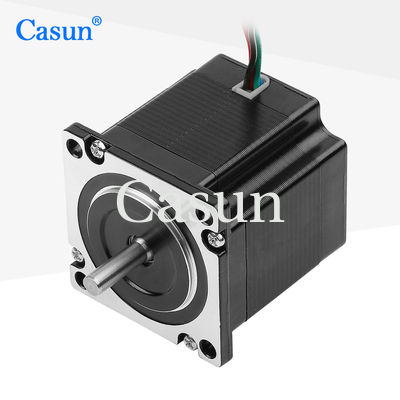

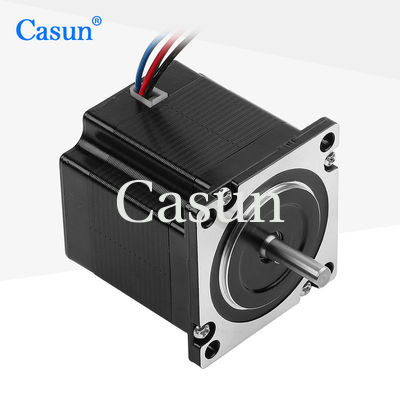

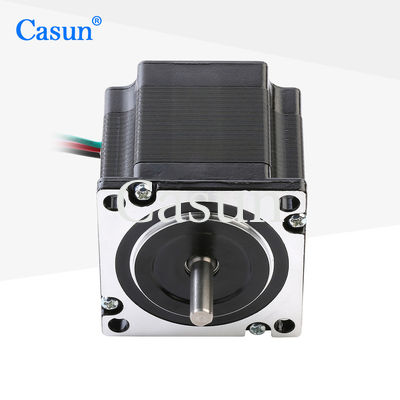

57*57*54mm Stepping Motor 2 Phase NEMA 23 2.3V 3.0A For 3 Axsis 4 Axsis CNC Kit

name

57*57*54mm Stepping Motor 2 Phase NEMA 23 2.3V 3.0A For 3 Axsis 4 Axsis CNC Kit

Brand Name: Casun
Model Number: 57SHD4415-20BH
MOQ: 1PC
Price: $3.14-$5
Payment Terms: D/A, T/T, L/C, D/P
Supply Ability: 40000+PCS+Month
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE,ROHS,ISO
Step Angel:
1.8°
Holding Torque:
1.1N.m
Current:
3.0A
Motor Length:
54mm
Shaft:
Milling Flat Shaft 20mm Length
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Packaging Details:
Carton:36x29x14cm
Highlight:

Stepping Motor 2 Phase NEMA 23

,

Stepping Motor 2 Phase 3.0A

Product Description

57*57*54mm Stepping Motor 2 Phase NEMA 23 2.3V 3.0A For 3 Axsis 4 Axsis CNC Kit



The 57mm Hybrid Stepper Motor Series offers powerful holding torque in a variety of sizes.

Use with a microstepping driver to reduce vibration and achieve higher step resolution.



Features:

  • High torque and high precision

  • Our products are designed for high torque and precision

  • Dealers are encouraged to apply

  • Personalized services are available upon request, and we also accept contract manufacturing orders

  • Wanted dealers! !

Appearance

57*57*54mm Stepping Motor 2 Phase NEMA 23 2.3V 3.0A For 3 Axsis 4 Axsis CNC Kit 0

Dimensions

57*57*54mm Stepping Motor 2 Phase NEMA 23 2.3V 3.0A For 3 Axsis 4 Axsis CNC Kit 1

Motor Specifications



Step Angel

1.8 °

Fram Size

57 mm

Number of Phase

2 Phase

Rated Current

3.0 A

Holding Torque

1.1 N.m

Resistance

2.0 ohm

Inductance

40 mH

Rotor Inertia

260 g-cm²

Motor weight

0.6 kg

Number of leads

4

Connection

Bipolar

Operating Specifications

Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min







Torque Curves













Submodels



Model Holding Torque Step Angle Length Type of Shaft Rated Current
57SHD4013-21B 0.6N.m 1.8° 41mm D Shaft-21mm 1.0A
57SHD4415-21B 1.1N.m 1.8° 54mm D Shaft-21mm 3.0A
57SHD4816-21B 2.0N.m 1.8° 76mm D Shaft-21mm 3.0A
57SHD4913-21B 2.5N.m 1.8° 83mm D Shaft-21mm 3.0A
57SHD4934-20B 3.0N.m 1.8° 100mm D Shaft-20mm 3.0A



Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder

Brake

Gearbox

Shaft
57*57*54mm Stepping Motor 2 Phase NEMA 23 2.3V 3.0A For 3 Axsis 4 Axsis CNC Kit 2 57*57*54mm Stepping Motor 2 Phase NEMA 23 2.3V 3.0A For 3 Axsis 4 Axsis CNC Kit 3 57*57*54mm Stepping Motor 2 Phase NEMA 23 2.3V 3.0A For 3 Axsis 4 Axsis CNC Kit 4 57*57*54mm Stepping Motor 2 Phase NEMA 23 2.3V 3.0A For 3 Axsis 4 Axsis CNC Kit 5



Please click the "Get a quote" button below to tell us your requirements.
