products details

Created with Pixso. Home Created with Pixso. Products Created with Pixso.
Hybrid Stepper Motor
Created with Pixso.

155mN.M NEMA 16 Stepper Motor For 3D Printer Engraving Machine Dc Stepping Motors

name

155mN.M NEMA 16 Stepper Motor For 3D Printer Engraving Machine Dc Stepping Motors

Brand Name: Casun
Model Number: 39SHY4101-10
MOQ: 1PC
Price: $3.38-$4.38
Payment Terms: D/A, T/T, L/C, D/P
Supply Ability: 40000+PCS+Month
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE,ROSH,ISO
Step Angel:
1.8°
Holding Torque:
120mN.m
Current:
0.4A
Motor Length:
27mm
Shaft:
Round Shaft 10mm Length
Vlotage:
9.24V
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Packaging Details:
Carton:36x29x14cm
Highlight:

155mN.M NEMA 16 Stepper Motor

,

3D Printer NEMA 16 Stepper Motor

Product Description

155mN.M 0.17kg NEMA 16 Stepper Motor For 3D Printer / Engraving Machine Dc Stepping Motors

Nema16 Stepper Motor 1.8 ° 39X27mm 0.4A 155mN.m 0.17kg for 3D Printer/Engraving Machine

39x39x27mm 0.4A Casun Stepper Motor Nema16 Mini Stepper Motor For Medical beauty equipment

Motor Specifications



Step Angel



1.8 °

Fram Size



27mm

Number of Phase



2 Phase

Rated Current



0.4A

Holding Torque



155mN.m

Resistance



23.1ohm

Inductance



25mH

Rotor Inertia



15 g-cm²

Motor weight



0.17kg

Number of leads



4

Connection



Bipolar





Appearance

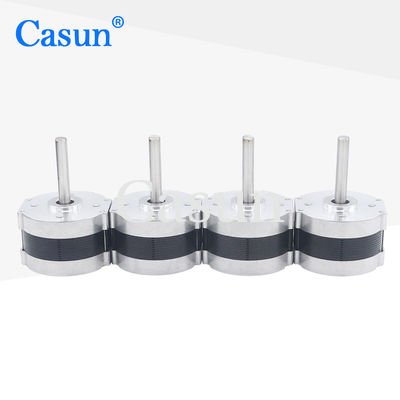

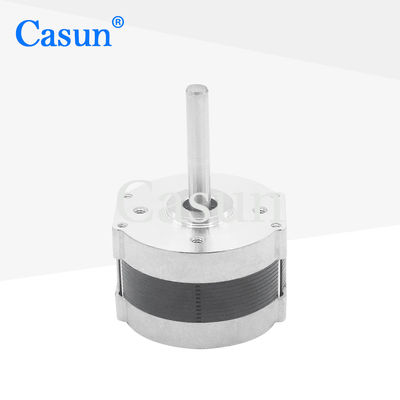

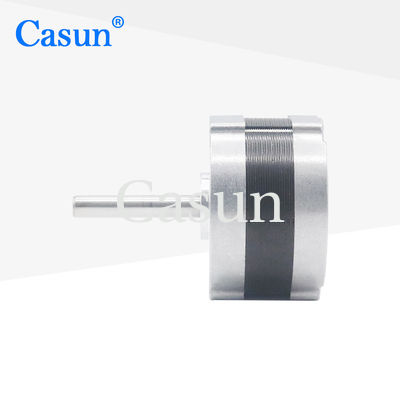

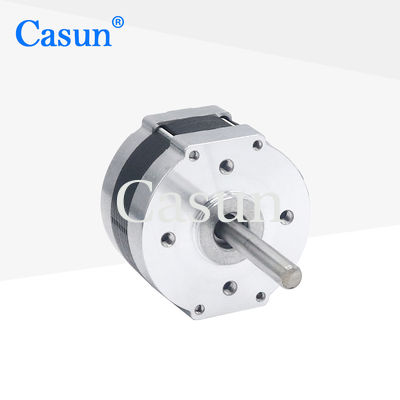

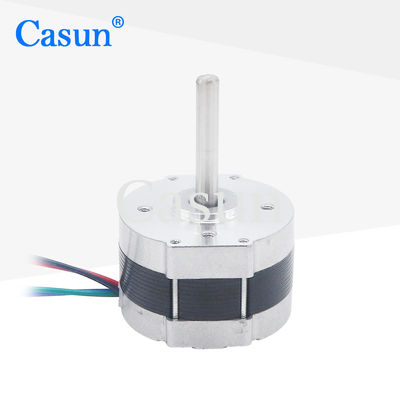

155mN.M NEMA 16 Stepper Motor For 3D Printer Engraving Machine Dc Stepping Motors 0

Dimensions

155mN.M NEMA 16 Stepper Motor For 3D Printer Engraving Machine Dc Stepping Motors 1



Torque Curves



















Download









If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Connector

Please click the "Get  a quote" button below to tell us your requirements.











Tags:

2 Phase Bipolar Stepper Motor

Nema 6 Bipolar Stepper Motor

155mN.M NEMA 16 Stepper Motor
