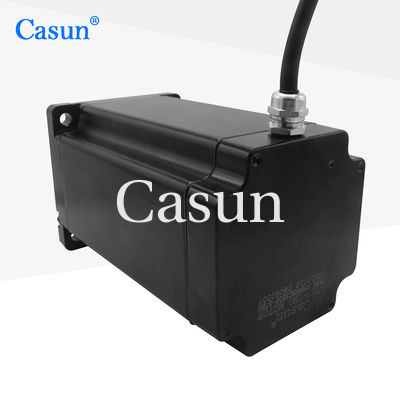

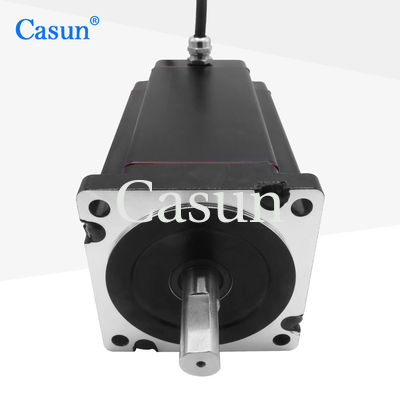

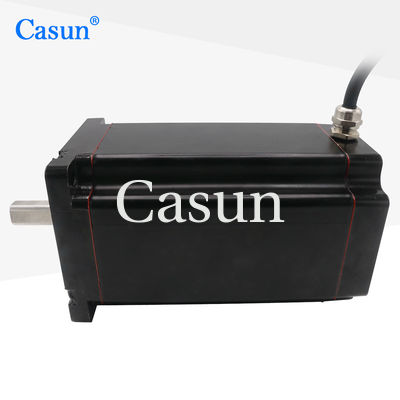

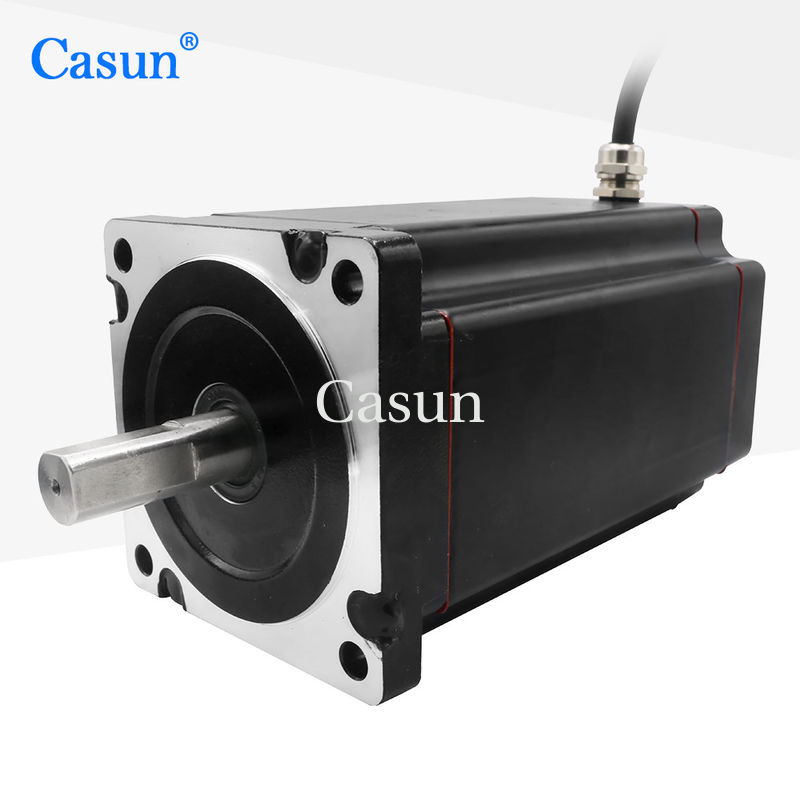

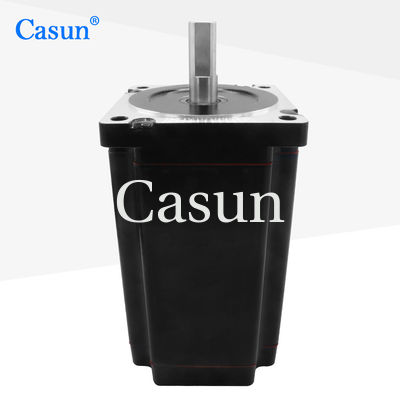

NEMA 34 WATERPROOF STEPPER MOTOR 9.0N 3.5A For Robot
NEMA 34 WATERPROOF STEPPER MOTOR 9.0N 3.5A For Robot
NEMA 34 WATERPROOF STEPPER MOTOR 9.0N 3.5A For Robot
NEMA 34 WATERPROOF STEPPER MOTOR 9.0N 3.5A For Robot
NEMA 34 WATERPROOF STEPPER MOTOR 9.0N 3.5A For Robot
NEMA 34 WATERPROOF STEPPER MOTOR 9.0N 3.5A For Robot

NEMA 34 WATERPROOF STEPPER MOTOR 9.0N 3.5A For Robot

Product Details

Place of Origin: CHINA

Brand Name: Casun

Certification: CE,ROHS,ISO

Model Number: FP86SHC3502-37BH

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: $9.49-$14

Packaging Details: Carton:36x29x14cm

Delivery Time: 7-15 days

Payment Terms: D/A, T/T, L/C, D/P

Supply Ability: 40000+PCS+Month

Get Best Price

Product Details

Product Description
Product Details
Highlight:

WATERPROOF NEMA 34 STEPPER MOTOR

,

3.5A NEMA 34 STEPPER MOTOR

,

9.0N NEMA 34 STEPPER MOTOR

Step Angle:
1.2°
Number Of Phase:
3
Rated Current:
3.5A
Body:
150mm
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Step Angle:
1.2°
Number Of Phase:
3
Rated Current:
3.5A
Body:
150mm
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Product Description

Its sealed design and waterproof stepper motor usually do not require frequent maintenance and cleaning, reducing maintenance costs.

Suitable for automation equipment, robots, packaging machinery, and agricultural machinery, etc.



Features:

  • Bipolar or unipolar versions available

  • Specialized in R&D and manufacturing

  • Specializing in delivering personalized services is our area of expertise

  • Every stepper motor model is adaptable to various applications

  • Our products deliver exceptional torque and precision

Dimensions

NEMA 34 WATERPROOF STEPPER MOTOR 9.0N 3.5A For Robot 0







Motor Specifications

Step Angel



1.2 °

Fram Size



86 mm

Number of Phase



3 Phase

Rated Current



3.5A

Holding Torque



9.0N.m

Resistance



3.7ohm

Inductance



25.7mH

Rotor Inertia



4500 g-cm²

Motor weight



5.0 kg

Number of leads



4

Connection



Bipolar



Operating Specifications





Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min









Torque Curves







Submodels



Model Holding Torque Step Angle Length Type of Shaft Rated Current
86SHD4003-32 4.0N.m 1.8° 69mm Key Shaft-32mm 4.0A
86SHD4101-32 4.5N.m 1.8° 76mm Key Shaft-32mm 4.0A
86SHD4201-37 5.6N.m 1.8° 98mm Key Shaft-37mm 4.0A
86SHD4314-37 6.8N.m 1.8° 112mm Key Shaft-37mm 5.0A
86SHD4404-37 8.0N.m 1.8° 127mm Key Shaft-37mm 5.0A
86SHD4505-37 12.0N.m 1.8° 150mm Key Shaft-37mm 5.5A



Download





If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
            Encoder          |               Brake           |              Gearbox            |           Shaft

NEMA 34 WATERPROOF STEPPER MOTOR 9.0N 3.5A For Robot 1 NEMA 34 WATERPROOF STEPPER MOTOR 9.0N 3.5A For Robot 2 NEMA 34 WATERPROOF STEPPER MOTOR 9.0N 3.5A For Robot 3 NEMA 34 WATERPROOF STEPPER MOTOR 9.0N 3.5A For Robot 4





Please click the "Get  a quote" button below to tell us your requirements.
