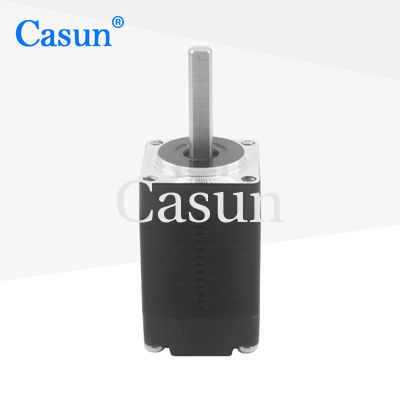

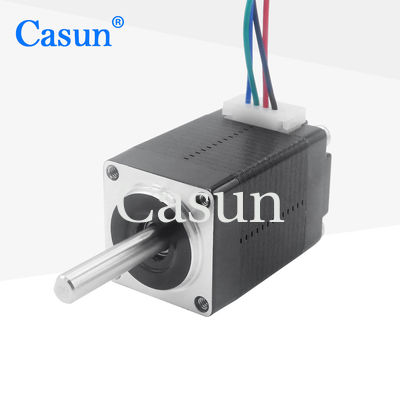

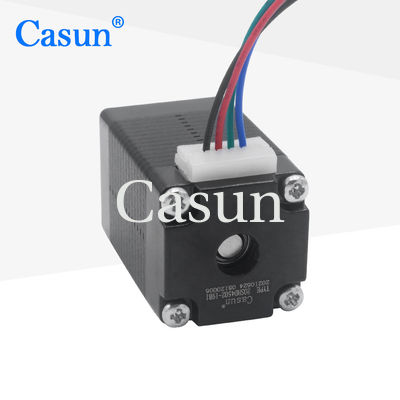

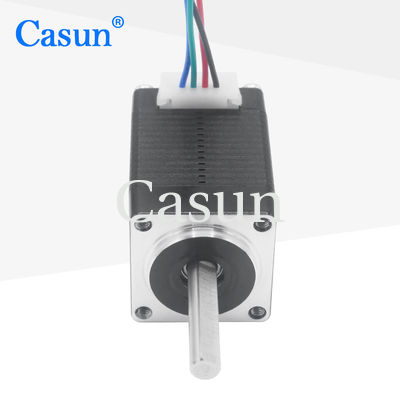

2 Phase Nema 8 Bipolar 1.8 Deg Stepping Motor 20x20x33mm 21mN.m 4 Wires For Machine

name

2 Phase Nema 8 Bipolar 1.8 Deg Stepping Motor 20x20x33mm 21mN.m 4 Wires For Machine

Brand Name: Casun
Model Number: 20SHD4502-19B1
MOQ: 1PC
Price: $5.94-$8.6
Payment Terms: D/A, T/T, L/C, D/P
Supply Ability: 40000+PCS+Month
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE,ROSH,ISO
Holding Torque:
21mN.m
Current:
0.8A
Motor Length:
33mm
Shaft:
Milling Flat Shaft 19mm Length
Insulation Class:
Class B
Phase:
2
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Packaging Details:
Carton:36x29x14cm
Highlight:

21mN.m Nema 8 Bipolar Stepping Motor

,

2 Phase Stepping Motor

Product Description

The 20mm base stepper motor has a simple structure, therefore it has high reliability and stability.

Medical and scientific equipment, Wearable technology, machine vision and 3D printers.



Features:

  • High accuracy and torque

  • Offer custom services

  • Available in single or double shaft versions

  • Different situations may call for a particular stepper motor model

  • The best solution will be offered by our engineers in contact with you within 48 hours





Motor Specifications

Step Angel

1.8 °

Fram Size

20 mm

Number of Phase

2 Phase

Rated Current

0.8 A

Holding Torque

21 mN.m

Resistance

4.5 ohm

Inductance

1.6 mH

Rotor Inertia

2.5 g-cm²

Motor weight

0.07 kg

Number of leads

4

Connection

Bipolar



Appearance



2 Phase Nema 8 Bipolar 1.8 Deg Stepping Motor 20x20x33mm 21mN.m 4 Wires For Machine 0

Dimensions

2 Phase Nema 8 Bipolar 1.8 Deg Stepping Motor 20x20x33mm 21mN.m 4 Wires For Machine 1



Torque Curves



















Download







If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Connector

Please click the "Get  a quote" button below to tell us your requirements.
