1.2 Degree NEMA 17 Stepper Motor 3 Phase 1.2A With CE RoHS ISO

name

1.2 Degree NEMA 17 Stepper Motor 3 Phase 1.2A With CE RoHS ISO

Brand Name: Casun
Model Number: 42SHF3202-22L1
MOQ: 1PC
Price: $3.14-$5
Payment Terms: D/A, T/T, L/C, D/P
Supply Ability: 40000+PCS+Month
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE,ROHS,ISO
Step Angel:
1.2°
Holding Torque:
360mN.m
Current:
1.2A
Motor Length:
40mm
Shaft:
Round Shaft 22mm Length
Phase:
Three
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Packaging Details:
Carton:36x29x14cm
Highlight:

1.2 Degree NEMA 17 Stepper Motor

,

1.2A NEMA 17 Stepper Motor

Product Description

Widely used in industrial applications that require precision, stability, and fast motion.

Through pulse signal control, it is easy to achieve complex motion trajectories.



Features:

  • High torque and high precision

  • For high-tech industry and electronic industry equipment

  • Our engineers will contact you within 48 hours to provide the best solution

  • We possess expertise in drivetrain solutions

  • Established in China for 12 years and has served more than 800 customers

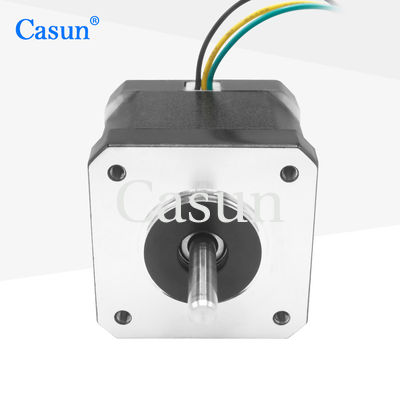

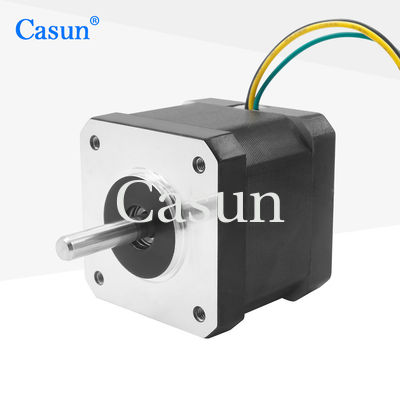

Appearance

1.2 Degree NEMA 17 Stepper Motor 3 Phase 1.2A With CE RoHS ISO 0

Dimensions

1.2 Degree NEMA 17 Stepper Motor 3 Phase 1.2A With CE RoHS ISO 1

Motor Specifications



Step Angel

1.2 °

Fram Size

42 mm

Number of Phase

2 Phase

Rated Current

1.2 A

Holding Torque

360 mN.m

Resistance

9.0 ohm

Inductance

10.3 mH

Rotor Inertia

57 g-cm²

Motor weight

0.24 kg

Number of leads

3

Connection

Bipolar

Operating Specifications

Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min







Torque Curves













Submodels

Model Holding Torque Step Angle Motor Length Type of Shaft Rated Current
42SHD4950 0.13N.m 1.8° 20mm D Shaft-20mm 1.0A
42SHD4003 0.26N.m 1.8° 34mm D Shaft-20mm 0.4A
42SHD0261 0.45N.m 1.8° 40mm D Shaft-20mm 1.68A
42SHD4425 0.59N.m 1.8° 48mm D Shaft-24mm 2.0A
42SHD4813 0.8N.m 1.8° 60mm D Shaft-24mm 2.1A





Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder

Brake

Gearbox

Shaft
1.2 Degree NEMA 17 Stepper Motor 3 Phase 1.2A With CE RoHS ISO 2 1.2 Degree NEMA 17 Stepper Motor 3 Phase 1.2A With CE RoHS ISO 3 1.2 Degree NEMA 17 Stepper Motor 3 Phase 1.2A With CE RoHS ISO 4 1.2 Degree NEMA 17 Stepper Motor 3 Phase 1.2A With CE RoHS ISO 5



Please click the "Get a quote" button below to tell us your requirements.



Tags:

2 Phase Bipolar Stepper Motor

Nema 6 Bipolar Stepper Motor

1.2 Degree NEMA 17 Stepper Motor
