GUANGZHOU FUDE ELECTRONIC TECHNOLOGY CO.,LTD Company Profile
products
Home > products > Hybrid Stepper Motor > Factory NEMA 17 2 Phase Stepper Motor 17HS15-1504S1 Dc Motors With CE ISO ROHS

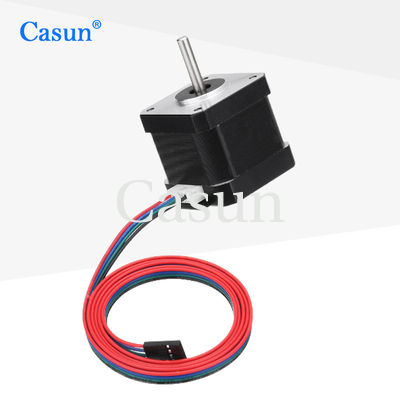

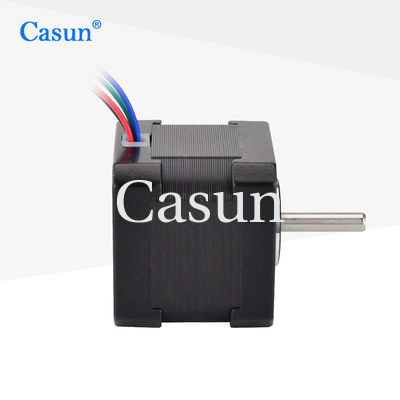

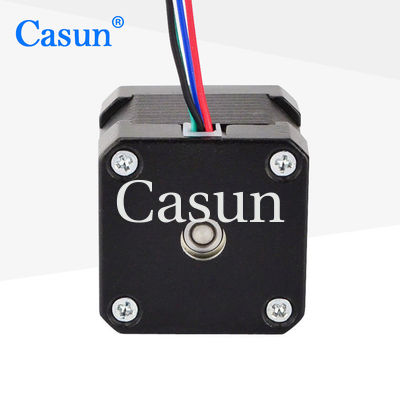

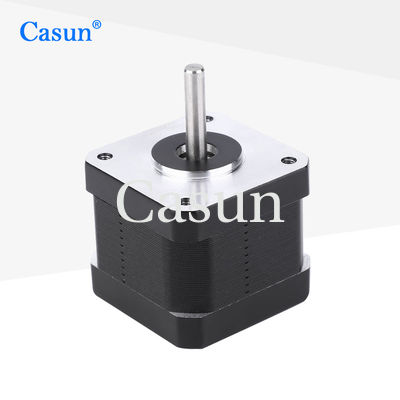

Factory NEMA 17 2 Phase Stepper Motor 17HS15-1504S1 Dc Motors With CE ISO ROHS
Factory NEMA 17 2 Phase Stepper Motor 17HS15-1504S1 Dc Motors With CE ISO ROHS
Factory NEMA 17 2 Phase Stepper Motor 17HS15-1504S1 Dc Motors With CE ISO ROHS
Factory NEMA 17 2 Phase Stepper Motor 17HS15-1504S1 Dc Motors With CE ISO ROHS
Factory NEMA 17 2 Phase Stepper Motor 17HS15-1504S1 Dc Motors With CE ISO ROHS
Factory NEMA 17 2 Phase Stepper Motor 17HS15-1504S1 Dc Motors With CE ISO ROHS
Factory NEMA 17 2 Phase Stepper Motor 17HS15-1504S1 Dc Motors With CE ISO ROHS
Factory NEMA 17 2 Phase Stepper Motor 17HS15-1504S1 Dc Motors With CE ISO ROHS

Factory NEMA 17 2 Phase Stepper Motor 17HS15-1504S1 Dc Motors With CE ISO ROHS

Product Details

Place of Origin: China

Brand Name: Casun

Certification: CE,ROHS,ISO

Model Number: 42SHD4287-24BH-2/ 17HS15-1504S1

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: $2.5-$5.5

Packaging Details: Carton:36x29x14cm

Delivery Time: 7-15 days

Payment Terms: D/A, T/T, L/C, D/P

Supply Ability: 40000+PCS+Month

Get Best Price

Product Details

Product Description
Product Details
High Light:

17HS15-1504S1 NEMA 17 Stepper Motor

,

2 Phase NEMA 17 Stepper Motor

,

17HS15-1504S1 Dc Motors

Step Angel:
1.8°
Holding Torque:
450mN.m
Current:
1.5A
Motor Length:
40mm
Shaft:
Milling Flat Shaft 24mm Length
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Step Angel:
1.8°
Holding Torque:
450mN.m
Current:
1.5A
Motor Length:
40mm
Shaft:
Milling Flat Shaft 24mm Length
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Product Description

NEMA 17 2 phase hybrid stepper motor low noise with CE certifications for 3d printer



The 42mm stepper motor is a space-efficient option for installation and arrangement in many industrial automation applications, such as 3D printers, textile machinery, and medical equipment.



Features:



We have been operating in China for 12 years, and we have served more than 800 clients.



Our specialty is providing custom services.



expert in drivetrain solutions



We are actively looking for dealers!



Custom services are available, and contract manufacturing is accepted.







Motor Specifications

Step Angel

1.8 °

Fram Size

42 mm

Number of Phase

2 Phase

Rated Current

1.5 A

Holding Torque

450 mN.m

Resistance

2.3 ohm

Inductance

4.4 mH

Rotor Inertia

54 g-cm²

Motor weight

0.3 kg

Number of leads

4

Connection

Bipolar

Appearance

Factory NEMA 17 2 Phase Stepper Motor 17HS15-1504S1 Dc Motors With CE ISO ROHS 0

Dimensions

Factory NEMA 17 2 Phase Stepper Motor 17HS15-1504S1 Dc Motors With CE ISO ROHS 1


Operating Specifications

Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min







Torque Curves

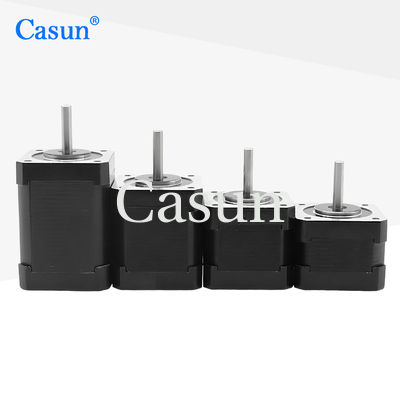

Submodels

Model Holding Torque Step Angle Motor Length Type of Shaft Rated Current
42SHD4950 0.13N.m 1.8° 20mm D Shaft-20mm 1.0A
42SHD4003 0.26N.m 1.8° 34mm D Shaft-20mm 0.4A
42SHD0261 0.45N.m 1.8° 40mm D Shaft-20mm 1.68A
42SHD4425 0.59N.m 1.8° 48mm D Shaft-24mm 2.0A
42SHD4813 0.8N.m 1.8° 60mm D Shaft-24mm 2.1A





Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder

Brake

Gearbox

Shaft
Factory NEMA 17 2 Phase Stepper Motor 17HS15-1504S1 Dc Motors With CE ISO ROHS 2 Factory NEMA 17 2 Phase Stepper Motor 17HS15-1504S1 Dc Motors With CE ISO ROHS 3 Factory NEMA 17 2 Phase Stepper Motor 17HS15-1504S1 Dc Motors With CE ISO ROHS 4 Factory NEMA 17 2 Phase Stepper Motor 17HS15-1504S1 Dc Motors With CE ISO ROHS 5



Please click the "Get a quote" button below to tell us your requirements.
