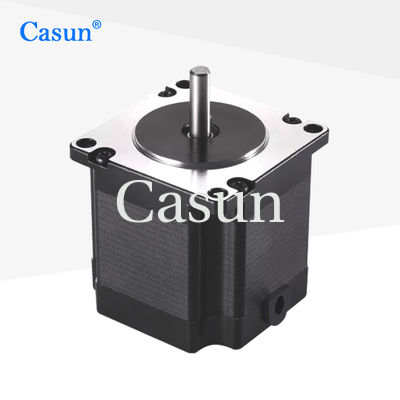

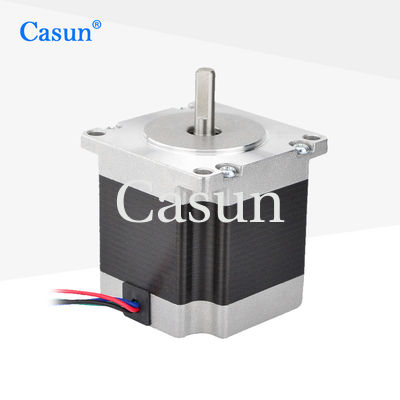

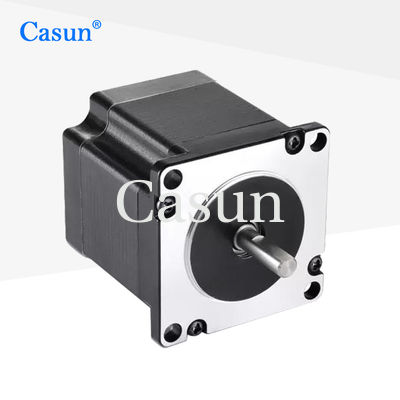

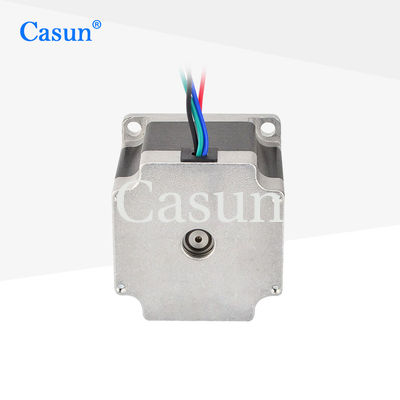

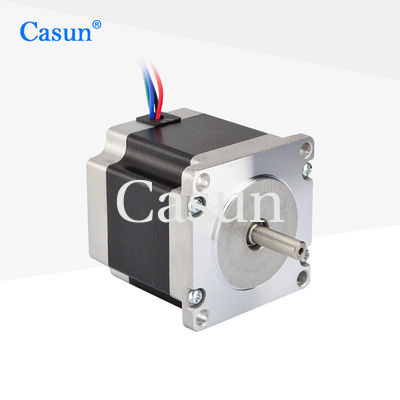

CNC Machine Nema 23 Stepper Motor High Torque Hybrid Dc Motors With ROHS CE ISO

name

CNC Machine Nema 23 Stepper Motor High Torque Hybrid Dc Motors With ROHS CE ISO

Brand Name: Casun
Model Number: 57SHD4425-21C
MOQ: 1PC
Price: $3.14-$5.8
Payment Terms: D/A, T/T, L/C, D/P
Supply Ability: 40000+PCS+Month
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE,ROHS,ISO
Step Angel:
1.8°
Holding Torque:
1.2N.m
Current:
1.8A
Motor Length:
54mm
Shaft:
Milling Flat Shaft 21mm Length
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Packaging Details:
Carton:36x29x14cm
Highlight:

high torque Nema 23 stepper motor

,

CNC machine Nema 23 stepper motor

,

ROHS Stepper Motor High Torque

Product Description

Due to the lack of complex mechanical conversion components, maintenance is simple and the service life is long.

Suitable for various applications, such as automation equipment, precision positioning systems, robots, electronic devices, etc.



Features:

  • High torque and high precision

  • Professional drivetrain solution specialist

  • Our engineers will be in touch within 48 hours to provide the best solution

  • Every stepper motor model is adaptable to various applications

  • Provide bespoke services

Appearance

CNC Machine Nema 23 Stepper Motor High Torque Hybrid Dc Motors With ROHS CE ISO 0

Dimensions

CNC Machine Nema 23 Stepper Motor High Torque Hybrid Dc Motors With ROHS CE ISO 1

Motor Specifications



Step Angel

1.8 °

Fram Size

57 mm

Number of Phase

2 Phase

Rated Current

1.8 A

Holding Torque

1.2 N.m

Resistance

0.9 ohm

Inductance

2.5 mH

Rotor Inertia

300 g-cm²

Motor weight

0.7 kg

Number of leads

4

Connection

Bipolar

Operating Specifications

Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min







Torque Curves

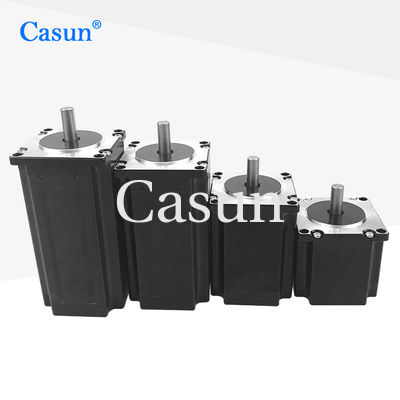

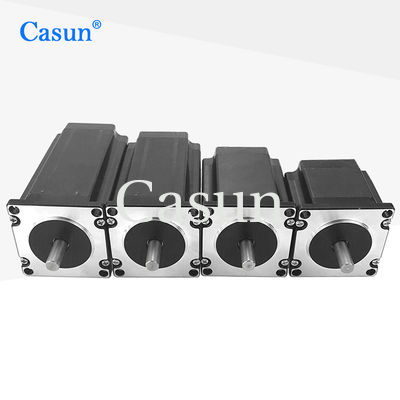

Submodels



Model Holding Torque Step Angle Length Type of Shaft Rated Current
57SHD4013-21B 0.6N.m 1.8° 41mm D Shaft-21mm 1.0A
57SHD4415-21B 1.1N.m 1.8° 54mm D Shaft-21mm 3.0A
57SHD4816-21B 2.0N.m 1.8° 76mm D Shaft-21mm 3.0A
57SHD4913-21B 2.5N.m 1.8° 83mm D Shaft-21mm 3.0A
57SHD4934-20B 3.0N.m 1.8° 100mm D Shaft-20mm 3.0A



Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder

Brake

Gearbox

Shaft
CNC Machine Nema 23 Stepper Motor High Torque Hybrid Dc Motors With ROHS CE ISO 2 CNC Machine Nema 23 Stepper Motor High Torque Hybrid Dc Motors With ROHS CE ISO 3 CNC Machine Nema 23 Stepper Motor High Torque Hybrid Dc Motors With ROHS CE ISO 4 CNC Machine Nema 23 Stepper Motor High Torque Hybrid Dc Motors With ROHS CE ISO 5



Please click the "Get a quote" button below to tell us your requirements.
