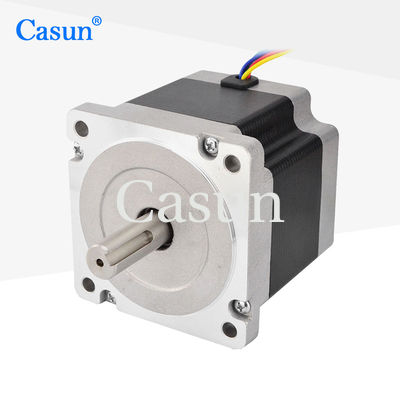

Nema 34 Bipolar 1.8 Deg Stepping Motor 86x86x76mm 4N.m 4 Wires For Printing Machine

name

Nema 34 Bipolar 1.8 Deg Stepping Motor 86x86x76mm 4N.m 4 Wires For Printing Machine

Brand Name: Casun
Model Number: 86SHD4114-37
MOQ: 1PC
Price: $24.92-$25.96
Payment Terms: D/A, T/T, L/C, D/P
Supply Ability: 40000+PCS+Month
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE,ROSH,ISO
Step Angel:
1.8°
Holding Torque:
4.0N.m
Current:
4.0A
Motor Length:
76mm
Shaft:
Keyway Shaft 37mm Length
Packaging Details:
Carton:36x29x14cm
Highlight:

4N.m Nema 34 Bipolar Stepping Motor

,

86x86x76mm Nema 34 Bipolar Stepping Motor

,

Printing Machine Stepper Motor

Product Description

NEMA 34 stepper motors can quickly respond to control signals and are suitable for situations that require rapid action.

The driving circuit of a stepper motor is relatively simple, easy to design and maintain.



Features:

  • Bipolar or unipolar versions available

  • Enjoy a ten-year warranty and purchase with confidenc

  • We provide tailored services and welcome contract-based production

  • High torque and precision guaranteed

  • Our engineers will contact you within 48 hours to provide the optimal solution

Dimensions

Nema 34 Bipolar 1.8 Deg Stepping Motor 86x86x76mm 4N.m 4 Wires For Printing Machine 0





Motor Specifications

Step Angel



 1.8 °

Fram Size



 86 mm

Number of Phase



 2 Phase

Rated Current



 4.0 A

Holding Torque



 4.0N.m

Resistance



 0.62ohm

Inductance



 3.5mH

Rotor Inertia



 1000 g-cm²

Motor weight



 2.3 kg

Number of leads



 4

Connection



 Bipolar





Operating Specifications

Step Angle: 1.8°

Maximum Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min









Torque Curves







Submodels



Model Holding Torque Step Angle Length Type of Shaft Rated Current
86SHD4003-32 4.0N.m 1.8° 69mm Key Shaft-32mm 4.0A
86SHD4101-32 4.5N.m 1.8° 76mm Key Shaft-32mm 4.0A
86SHD4201-37 5.6N.m 1.8° 98mm Key Shaft-37mm 4.0A
86SHD4314-37 6.8N.m 1.8° 112mm Key Shaft-37mm 5.0A
86SHD4404-37 8.0N.m 1.8° 127mm Key Shaft-37mm 5.0A
86SHD4505-37 12.0N.m 1.8° 150mm Key Shaft-37mm 5.5A



Download





If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Shaft

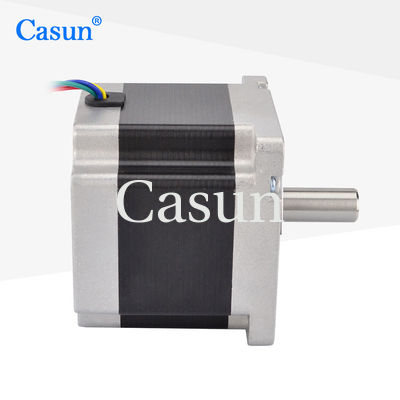

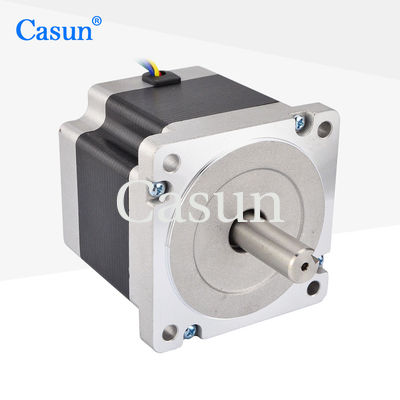

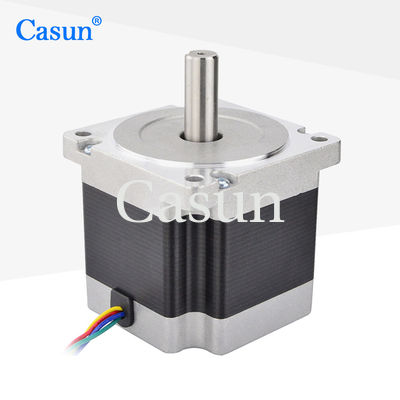

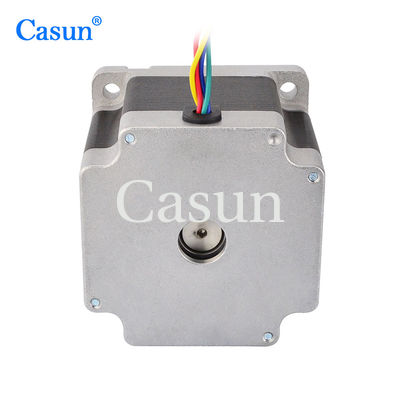

Nema 34 Bipolar 1.8 Deg Stepping Motor 86x86x76mm 4N.m 4 Wires For Printing Machine 1 Nema 34 Bipolar 1.8 Deg Stepping Motor 86x86x76mm 4N.m 4 Wires For Printing Machine 2 Nema 34 Bipolar 1.8 Deg Stepping Motor 86x86x76mm 4N.m 4 Wires For Printing Machine 3 Nema 34 Bipolar 1.8 Deg Stepping Motor 86x86x76mm 4N.m 4 Wires For Printing Machine 4





Please click the "Get a quote" button below to tell us your requirements.
