Home > products > Hybrid Stepper Motor > 1.8 Degree 2 Phase NEMA 14 Flat Stepper Motor 70mN.M 0.3A For SMT Machine

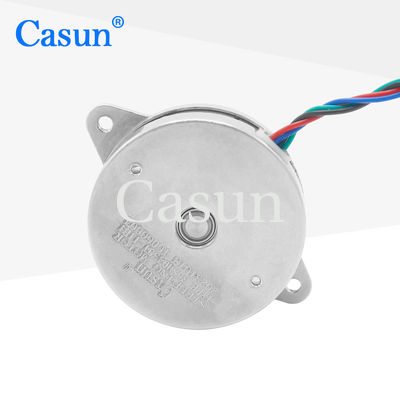

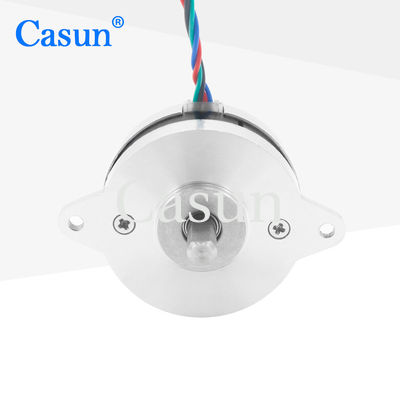

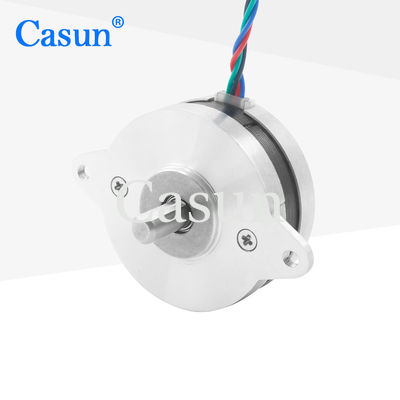

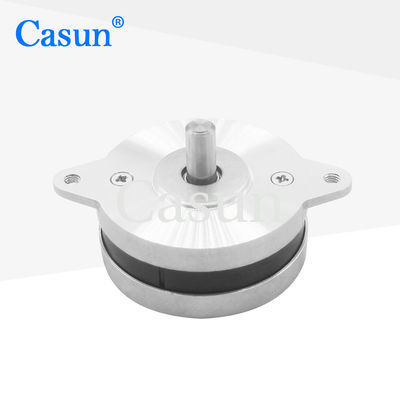

1.8 Degree 2 Phase NEMA 14 Flat Stepper Motor 70mN.M 0.3A For SMT Machine
1.8 Degree 2 Phase NEMA 14 Flat Stepper Motor 70mN.M 0.3A For SMT Machine
1.8 Degree 2 Phase NEMA 14 Flat Stepper Motor 70mN.M 0.3A For SMT Machine
1.8 Degree 2 Phase NEMA 14 Flat Stepper Motor 70mN.M 0.3A For SMT Machine
1.8 Degree 2 Phase NEMA 14 Flat Stepper Motor 70mN.M 0.3A For SMT Machine
1.8 Degree 2 Phase NEMA 14 Flat Stepper Motor 70mN.M 0.3A For SMT Machine

1.8 Degree 2 Phase NEMA 14 Flat Stepper Motor 70mN.M 0.3A For SMT Machine

Product Details

Place of Origin: CHINA

Brand Name: Casun

Certification: CE,ROHS,ISO

Model Number: 36SHD4301-11B1

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: $4.14-$6.98

Packaging Details: Carton:36x29x14cm

Delivery Time: 7-15 days

Payment Terms: D/A, T/T, L/C, D/P

Supply Ability: 40000+PCS+Month

Get Best Price

Product Details

Product Description
Product Details
High Light:

0.3A NEMA 14 Flat Stepper Motor

,

70mN.M NEMA 14 Flat Stepper Motor

,

SMT Machine Stepper Motor

Step Angel:
1.8°
Holding Torque:
70mN.m
Current:
0.3A
Motor Length:
15.3mm
Shaft:
Milling Flat Shaft 11mm Length
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Step Angel:
1.8°
Holding Torque:
70mN.m
Current:
0.3A
Motor Length:
15.3mm
Shaft:
Milling Flat Shaft 11mm Length
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Product Description

Controlled by the number of pulses, there is no need for additional position sensors to provide feedback on the motor's position.

Applied to various automation equipment, robots, 3D printers, CNC machine tools, medical equipment, and many other fields.



Features:

  • Welcoming contract manufacturing

  • Offer specialised services

  • Available in single or double shaft versions

  • Dealers wanted!!

  • We provide custom services and undertake contract manufacturing





Motor Specifications

Step Angel

1.8 °

Fram Size

36 mm

Number of Phase

2 Phase

Rated Current

0.3 A

Holding Torque

70 mN.m

Resistance

15.5 ohm

Inductance

7.0 mH

Rotor Inertia

4 g-cm²

Motor weight

0.06 kg

Number of leads

4

Connection

Bipolar





Appearance



1.8 Degree 2 Phase NEMA 14 Flat Stepper Motor 70mN.M 0.3A For SMT Machine 0

Dimensions

1.8 Degree 2 Phase NEMA 14 Flat Stepper Motor 70mN.M 0.3A For SMT Machine 1



Torque Curves









Download







If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Connector

Please click the "Get  a quote" button below to tell us your requirements.
