Home > products > Hybrid Stepper Motor > 42mm Brake Stepper Motor 1.0A NEMA 17 For Precision Positioning

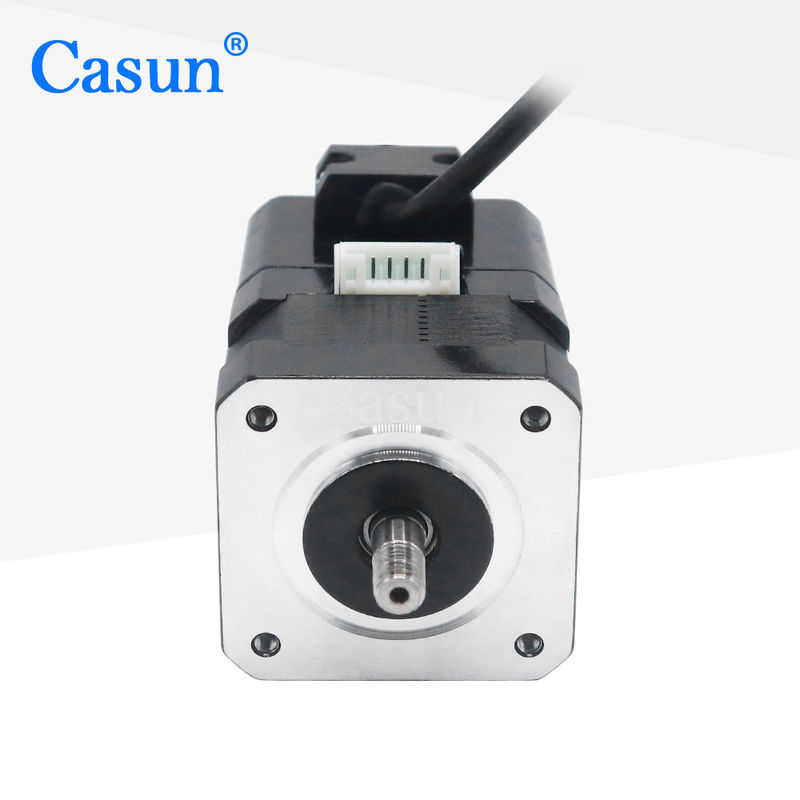

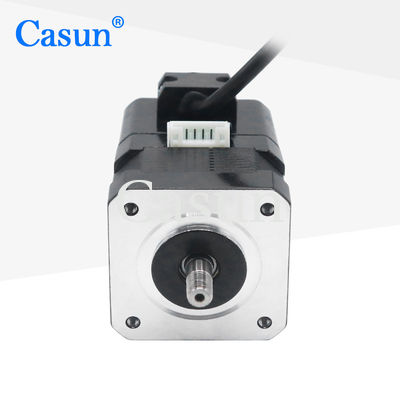

42mm Brake Stepper Motor 1.0A NEMA 17 For Precision Positioning
42mm Brake Stepper Motor 1.0A NEMA 17 For Precision Positioning
42mm Brake Stepper Motor 1.0A NEMA 17 For Precision Positioning
42mm Brake Stepper Motor 1.0A NEMA 17 For Precision Positioning
42mm Brake Stepper Motor 1.0A NEMA 17 For Precision Positioning
42mm Brake Stepper Motor 1.0A NEMA 17 For Precision Positioning
42mm Brake Stepper Motor 1.0A NEMA 17 For Precision Positioning

42mm Brake Stepper Motor 1.0A NEMA 17 For Precision Positioning

Product Details

Place of Origin: CHINA

Brand Name: Casun

Certification: CE,ROHS,ISO

Model Number: 42SHD0216-16PH-HP42

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: $3.14-$5

Packaging Details: Carton:36x29x14cm

Delivery Time: 7-15 days

Payment Terms: D/A, T/T, L/C, D/P

Supply Ability: 40000+PCS+Month

Get Best Price

Product Details

Product Description
Product Details
High Light:

1.0A Brake Stepper Motor

,

42mm Brake Stepper Motor

,

Precision Positioning Brake Stepper Motor

Step Angel:
1.8°
Holding Torque:
418m
Current:
1.0A
Motor Length:
33mm
Rated Voltage:
12V DC
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Step Angel:
1.8°
Holding Torque:
418m
Current:
1.0A
Motor Length:
33mm
Rated Voltage:
12V DC
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Product Description

Quickly stop the motor from rotating when powered off or commanded to stop, achieving precise positioning.

Suitable for devices that require security certification, such as medical equipment or industrial automation systems.



Features:

  • Our specialization lies in providing tailor-made services

  • Providing personalized services

  • We actively pursue partnerships with dealers!

  • Ten-year warranty and purchase without worry

  • Our engineers will contact you within 48 hours to offer the best solution

Appearance

42mm Brake Stepper Motor 1.0A NEMA 17 For Precision Positioning 0

Dimensions

42mm Brake Stepper Motor 1.0A NEMA 17 For Precision Positioning 1

Motor Specifications



Step Angel

1.8 °

Fram Size

42 mm

Number of Phase

2 Phase

Rated Current

1.0 A

Holding Torque

418m

Resistance

4.5 ohm

Inductance10

 mH

Rotor Inertia

57 g-cm²

Motor weight

0.24 kg

Number of leads

4

Connection

Bipolar

Operating Specifications

Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min







Torque Curves













Submodels

Model Holding Torque Step Angle Motor Length Type of Shaft Rated Current
42SHD4950 0.13N.m 1.8° 20mm D Shaft-20mm 1.0A
42SHD4003 0.26N.m 1.8° 34mm D Shaft-20mm 0.4A
42SHD0261 0.45N.m 1.8° 40mm D Shaft-20mm 1.68A
42SHD4425 0.59N.m 1.8° 48mm D Shaft-24mm 2.0A
42SHD4813 0.8N.m 1.8° 60mm D Shaft-24mm 2.1A





Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder

Brake

Gearbox

Shaft
42mm Brake Stepper Motor 1.0A NEMA 17 For Precision Positioning 2 42mm Brake Stepper Motor 1.0A NEMA 17 For Precision Positioning 3 42mm Brake Stepper Motor 1.0A NEMA 17 For Precision Positioning 4 42mm Brake Stepper Motor 1.0A NEMA 17 For Precision Positioning 5



Please click the "Get a quote" button below to tell us your requirements.
