products details

Created with Pixso. Home Created with Pixso. Products Created with Pixso.
Hybrid Stepper Motor
Created with Pixso.

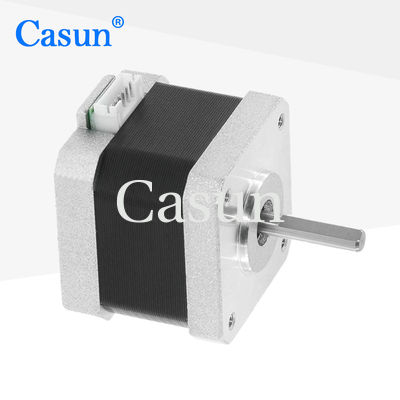

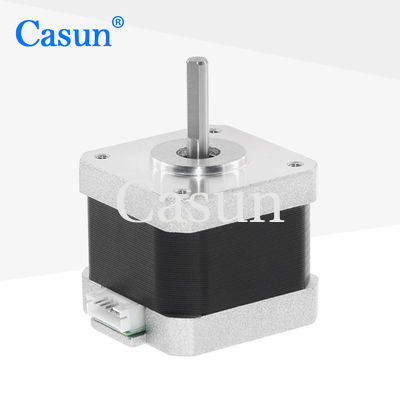

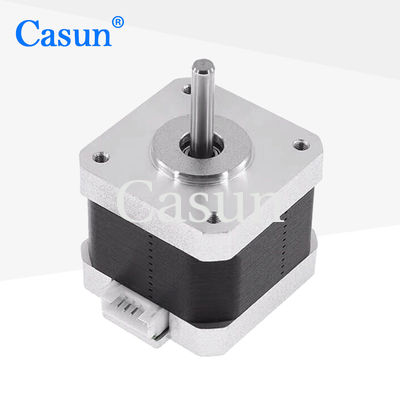

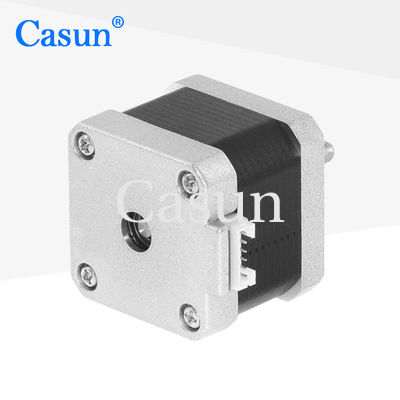

2 phase NEMA 17 Stepping Motor 1.0A 0.45N.m for Computer Peripherals

name

2 phase NEMA 17 Stepping Motor 1.0A 0.45N.m for Computer Peripherals

Brand Name: Casun
Model Number: 42SHD0238-20B
MOQ: 1PC
Price: $3.14-$5
Payment Terms: D/A, T/T, L/C, D/P
Supply Ability: 40000+PCS+Month
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE,ROSH,ISO
Step Angel:
1.8°
Holding Torque:
450mN.m
Current:
1.0A
Motor Length:
40mm
Shaft:
Milling Flat Shaft 20mm Length
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Packaging Details:
Carton:36x29x14cm
Highlight:

0.45N.m NEMA 17 Stepping Motor

,

Computer Peripherals NEMA 17 Stepping Motor

Product Description

It can be adjusted by controlling the frequency of the input pulse to achieve wide range speed control from extremely low speed to high speed.

Automated production lines, robotics technology, precision instruments, medical equipment, computer peripherals, etc.



Features:

  • Bipolar or unipolar versions available

  • Specialist in professional drivetrain solutions

  • Available in single or double shaft versions

  • CE and RoHS approved

  • Our engineers will contact you within 48 hours to provide the best solution

Appearance

2 phase NEMA 17 Stepping Motor 1.0A 0.45N.m for Computer Peripherals 0

Dimensions



2 phase NEMA 17 Stepping Motor 1.0A 0.45N.m for Computer Peripherals 1



Motor Specifications



Step Angel

1.8 °

Fram Size

42 mm

Number of Phase

2 Phase

Rated Current

1.0 A

Holding Torque

450 mN.m

Resistance

5.0 ohm

Inductance

10.0 mH

Rotor Inertia

57 g-cm²

Motor weight

0.24 kg

Number of leads

4

Connection

Bipolar

Operating Specifications

Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min







Torque Curves













Submodels

Model Holding Torque Step Angle Motor Length Type of Shaft Rated Current
42SHD4950 0.13N.m 1.8° 20mm D Shaft-20mm 1.0A
42SHD4003 0.26N.m 1.8° 34mm D Shaft-20mm 0.4A
42SHD0261 0.45N.m 1.8° 40mm D Shaft-20mm 1.68A
42SHD4425 0.59N.m 1.8° 48mm D Shaft-24mm 2.0A
42SHD4813 0.8N.m 1.8° 60mm D Shaft-24mm 2.1A





Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder

Brake

Gearbox

Shaft
2 phase NEMA 17 Stepping Motor 1.0A 0.45N.m for Computer Peripherals 2 2 phase NEMA 17 Stepping Motor 1.0A 0.45N.m for Computer Peripherals 3 2 phase NEMA 17 Stepping Motor 1.0A 0.45N.m for Computer Peripherals 4 2 phase NEMA 17 Stepping Motor 1.0A 0.45N.m for Computer Peripherals 5



Please click the "Get a quote" button below to tell us your requirements.
