Home > products > Hybrid Stepper Motor > 40mm 2 Phase 12V NEMA 17 Stepper Motor with -20 deg C to 50 deg C Ambient Temperature

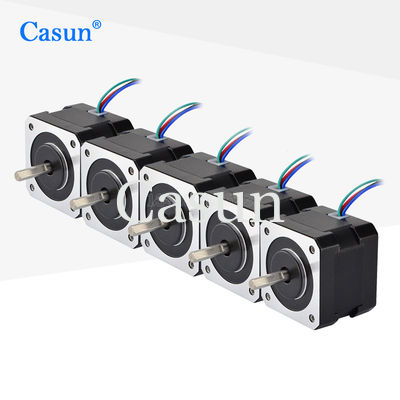

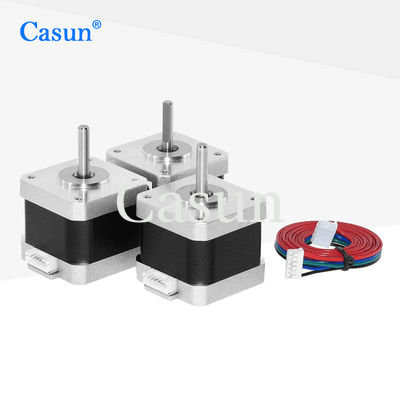

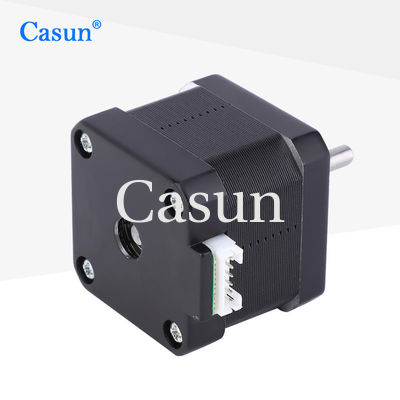

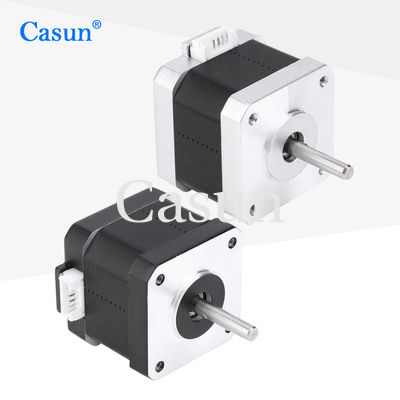

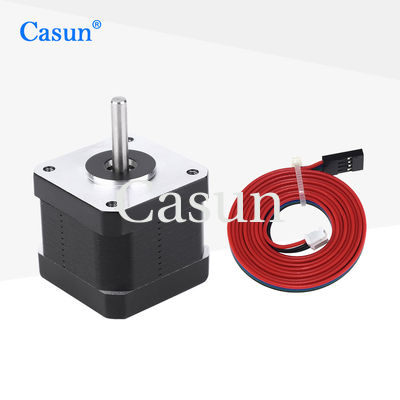

40mm 2 Phase 12V NEMA 17 Stepper Motor with -20 deg C to 50 deg C Ambient Temperature
40mm 2 Phase 12V NEMA 17 Stepper Motor with -20 deg C to 50 deg C Ambient Temperature
40mm 2 Phase 12V NEMA 17 Stepper Motor with -20 deg C to 50 deg C Ambient Temperature
40mm 2 Phase 12V NEMA 17 Stepper Motor with -20 deg C to 50 deg C Ambient Temperature
40mm 2 Phase 12V NEMA 17 Stepper Motor with -20 deg C to 50 deg C Ambient Temperature
40mm 2 Phase 12V NEMA 17 Stepper Motor with -20 deg C to 50 deg C Ambient Temperature
40mm 2 Phase 12V NEMA 17 Stepper Motor with -20 deg C to 50 deg C Ambient Temperature

40mm 2 Phase 12V NEMA 17 Stepper Motor with -20 deg C to 50 deg C Ambient Temperature

Product Details

Place of Origin: China

Brand Name: Casun

Certification: CE,ROSH,ISO

Model Number: 42SHD0231-24

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: $4-$8

Packaging Details: Carton:36x29x14cm

Delivery Time: 7-15 days

Payment Terms: D/A, T/T, L/C, D/P

Supply Ability: 40000+PCS+Month

Get Best Price

Product Details

Product Description
Product Details
Highlight:

40mm NEMA 17 Stepper Motor

,

12V NEMA 17 Stepper Motor

,

2 Phase NEMA 17 Stepper Motor

Step Angel:
1.8°
Holding Torque:
300 MN.m
Current:
0.6A
Motor Length:
40mm
Shaft:
24mm Length
Voltage:
6V
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Rotor Inertia:
57 G-cm^2
Rated Voltage:
6 V
Weight:
0.24 Kg
Detent Torque:
15mN.m
Shaft Length:
24 Mm
Number Of Leads:
4
Phase:
2
Rated Current:
0.6 A
Phase Inductance:
20 MH
Shaft Diameter:
5 Mm
Step Angle:
1.8 Degrees
Step Angel:
1.8°
Holding Torque:
300 MN.m
Current:
0.6A
Motor Length:
40mm
Shaft:
24mm Length
Voltage:
6V
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Rotor Inertia:
57 G-cm^2
Rated Voltage:
6 V
Weight:
0.24 Kg
Detent Torque:
15mN.m
Shaft Length:
24 Mm
Number Of Leads:
4
Phase:
2
Rated Current:
0.6 A
Phase Inductance:
20 MH
Shaft Diameter:
5 Mm
Step Angle:
1.8 Degrees
Product Description

0.6A Motori per stadi 40mm 2 Phase 1.8degree Hybrid 6V NEMA 17 Hybrid Stepper Motor

The 42mm Hybrid Stepper Motor Series offers powerful holding torque in a variety of sizes.

Use with a microstepping driver to reduce vibration and achieve higher step resolution.

Choose a baseline version or request your own customized configuration.



Features:

  • Bipolar or unipolar versions available

  • Hybrid stepper construction

  • Available in single or double shaft versions

  • CE and RoHS approved

  • Customizations on request

Appearance

40mm 2 Phase 12V NEMA 17 Stepper Motor with -20 deg C to 50 deg C Ambient Temperature 0



Dimensions

40mm 2 Phase 12V NEMA 17 Stepper Motor with -20 deg C to 50 deg C Ambient Temperature 1















Motor Specifications



Step Angel

1.8 °

Fram Size

40 mm

Number of Phase

2 Phase

Rated Current

0.6 A

Holding Torque

300 mN.m

Resistance

10 ohm

Inductance

20 mH

Rotor Inertia

57 g-cm²

Motor weight

0.24 kg

Number of leads

4

Connection

unipolar

Operating Specifications

Step Angle: 1.2°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min







Torque Curves













Submodels

Model Holding Torque Step Angle Motor Length Type of Shaft Rated Current
42SHD4950 0.13N.m 1.8° 20mm D Shaft-20mm 1.0A
42SHD4003 0.26N.m 1.8° 34mm D Shaft-20mm 0.4A
42SHD0261 0.45N.m 1.8° 40mm D Shaft-20mm 1.68A
42SHD4425 0.59N.m 1.8° 48mm D Shaft-24mm 2.0A
42SHD4813 0.8N.m 1.8° 60mm D Shaft-24mm 2.1A





Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder

Brake

Gearbox

Shaft
40mm 2 Phase 12V NEMA 17 Stepper Motor with -20 deg C to 50 deg C Ambient Temperature 2 40mm 2 Phase 12V NEMA 17 Stepper Motor with -20 deg C to 50 deg C Ambient Temperature 3 40mm 2 Phase 12V NEMA 17 Stepper Motor with -20 deg C to 50 deg C Ambient Temperature 4 40mm 2 Phase 12V NEMA 17 Stepper Motor with -20 deg C to 50 deg C Ambient Temperature 5



Please click the "Get a quote" button below to tell us your requirements.
