Hybrid NEMA 17 Stepper Motor 0.42N.m with CE for Graph Plotter

name

Hybrid NEMA 17 Stepper Motor 0.42N.m with CE for Graph Plotter

Brand Name: Casun
Model Number: 42SHD4202-24
MOQ: 1PC
Price: $3.14-$5
Payment Terms: D/A, T/T, L/C, D/P
Supply Ability: 40000+PCS+Month
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE,ROSH,ISO
Step Angel:
1.8°
Holding Torque:
420mN.m
Current:
0.5A
Motor Length:
40mm
Shaft:
Round Shaft 24mm Length
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Packaging Details:
Carton:36x29x14cm
Highlight:

Hybrid NEMA 17 Stepper Motor

,

0.42N.m NEMA 17 Stepper Motor

,

Graph Plotter NEMA 17 Stepper Motor

Product Description

The NEMA 17 stepper motor adopts reliable structural design and materials, with a long service life and stable performance.

They are easy to produce and assemble, making them an economical choice for many applications.



Features:

  • Customizations on request

  • Hybrid stepper construction

  • Available in single or double shaft versions

  • Customized services are available, and we engage in contract manufacturing

  • A ten-year warranty is offered, so buy with peace of mind

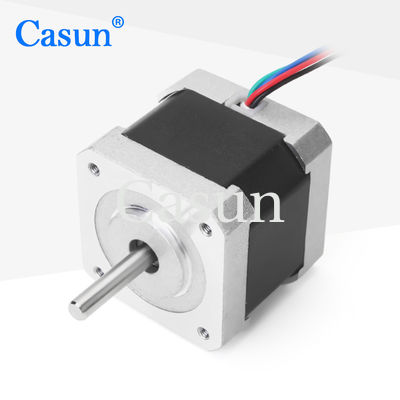

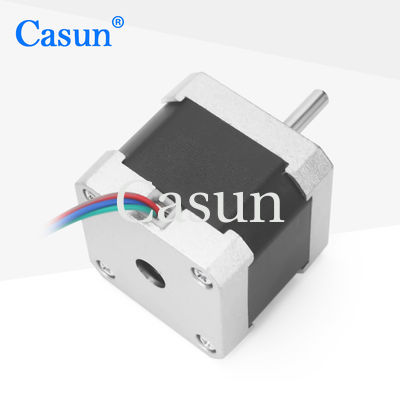

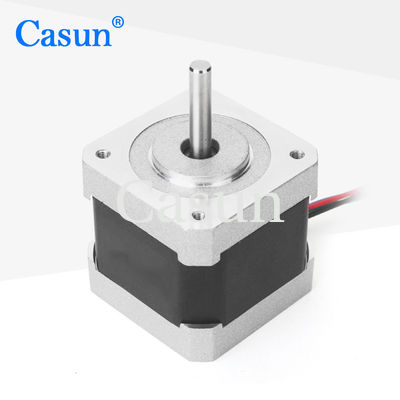

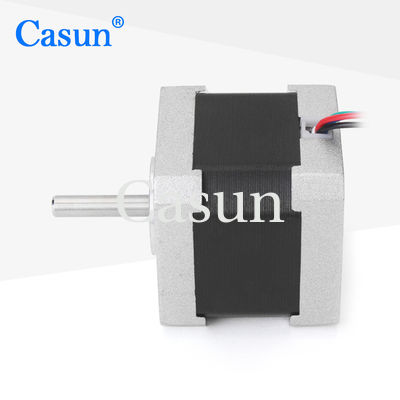

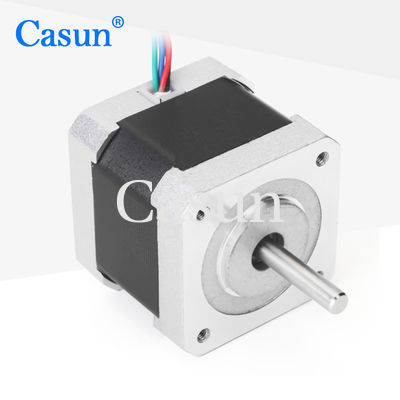

Appearance

Hybrid NEMA 17 Stepper Motor 0.42N.m with CE for Graph Plotter 0

Dimensions

Hybrid NEMA 17 Stepper Motor 0.42N.m with CE for Graph Plotter 1



Motor Specifications



Step Angel

1.8 °

Fram Size

40 mm

Number of Phase

2 Phase

Rated Current

0.5 A

Holding Torque

420 mN.m

Resistance

25 ohm

Inductance

50 mH

Rotor Inertia

57 g-cm²

Motor weight

0.24 kg

Number of leads

4

Connection

Bipolar

Operating Specifications

Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min







Torque Curves













Submodels

Model Holding Torque Step Angle Motor Length Type of Shaft Rated Current
42SHD4950 0.13N.m 1.8° 20mm D Shaft-20mm 1.0A
42SHD4003 0.26N.m 1.8° 34mm D Shaft-20mm 0.4A
42SHD0261 0.45N.m 1.8° 40mm D Shaft-20mm 1.68A
42SHD4425 0.59N.m 1.8° 48mm D Shaft-24mm 2.0A
42SHD4813 0.8N.m 1.8° 60mm D Shaft-24mm 2.1A





Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder

Brake

Gearbox

Shaft
Hybrid NEMA 17 Stepper Motor 0.42N.m with CE for Graph Plotter 2 Hybrid NEMA 17 Stepper Motor 0.42N.m with CE for Graph Plotter 3 Hybrid NEMA 17 Stepper Motor 0.42N.m with CE for Graph Plotter 4 Hybrid NEMA 17 Stepper Motor 0.42N.m with CE for Graph Plotter 5



Please click the "Get a quote" button below to tell us your requirements.



Tags:

2 Phase Bipolar Stepper Motor

Nema 6 Bipolar Stepper Motor

Hybrid NEMA 17 Stepper Motor
