products details

Created with Pixso. Home Created with Pixso. Products Created with Pixso.
Hybrid Stepper Motor
Created with Pixso.

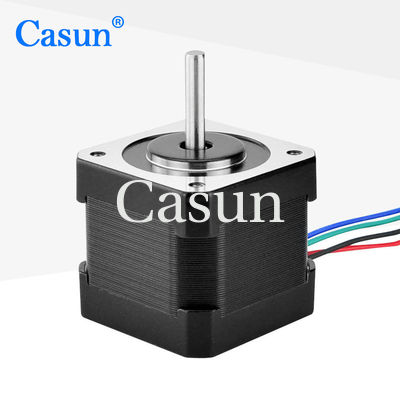

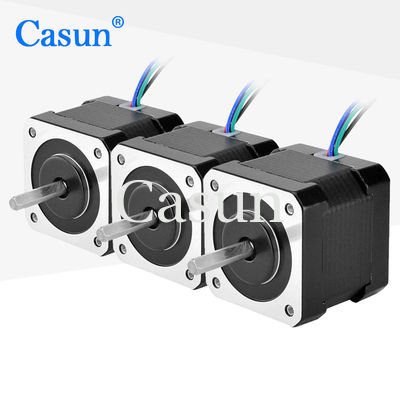

NEMA 17 Stepper Motor 42×42×40mm 0.3N.m 0.55A with CE ISO

name

NEMA 17 Stepper Motor 42×42×40mm 0.3N.m 0.55A with CE ISO

Brand Name: Casun
Model Number: 42SHD4002-24BH
MOQ: 1PC
Price: $3.14-$5
Payment Terms: D/A, T/T, L/C, D/P
Supply Ability: 40000+PCS+Month
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE,ROSH,ISO
Step Angel:
1.8°
Holding Torque:
300mN.m
Current:
0.55A
Motor Length:
34mm
Shaft:
Milling Flat Shaft 24mm Length
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Packaging Details:
Carton:36x29x14cm
Highlight:

42×42×40mm NEMA 17 Stepper Motor

,

34mm NEMA 17 Stepper Motor

,

0.55A NEMA 17 Stepper Motor

Product Description

The structure of stepper motors is relatively simple, without complex transmission mechanisms, so maintenance costs are relatively low.

Adopting reliable structural design and materials, it has a long service life and stable performance.



Features:

  • Bipolar or unipolar versions available

  • Each model of stepper motor can be suitable for different scenarios

  • Available in single or double shaft versions

  • CE and RoHS approved

  • We provide custom services and are open to contract manufacturing. Seeking dealers!

Appearance

NEMA 17 Stepper Motor 42×42×40mm 0.3N.m 0.55A with CE ISO 0

Dimensions

NEMA 17 Stepper Motor 42×42×40mm 0.3N.m 0.55A with CE ISO 1



Motor Specifications



Step Angel

1.8 °

Fram Size

42 mm

Number of Phase

2 Phase

Rated Current

0.55 A

Holding Torque

300 mN.m

Resistance

22 ohm

Inductance

28 mH

Rotor Inertia

38 g-cm²

Motor weight

0.2 kg

Number of leads

4

Connection

Bipolar

Operating Specifications

Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min







Torque Curves













Submodels

Model Holding Torque Step Angle Motor Length Type of Shaft Rated Current
42SHD4950 0.13N.m 1.8° 20mm D Shaft-20mm 1.0A
42SHD4003 0.26N.m 1.8° 34mm D Shaft-20mm 0.4A
42SHD0261 0.45N.m 1.8° 40mm D Shaft-20mm 1.68A
42SHD4425 0.59N.m 1.8° 48mm D Shaft-24mm 2.0A
42SHD4813 0.8N.m 1.8° 60mm D Shaft-24mm 2.1A





Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder

Brake

Gearbox

Shaft
NEMA 17 Stepper Motor 42×42×40mm 0.3N.m 0.55A with CE ISO 2 NEMA 17 Stepper Motor 42×42×40mm 0.3N.m 0.55A with CE ISO 3 NEMA 17 Stepper Motor 42×42×40mm 0.3N.m 0.55A with CE ISO 4 NEMA 17 Stepper Motor 42×42×40mm 0.3N.m 0.55A with CE ISO 5



Please click the "Get a quote" button below to tell us your requirements.



Tags:

2 Phase Bipolar Stepper Motor

Nema 6 Bipolar Stepper Motor

42×42×40mm NEMA 17 Stepper Motor
