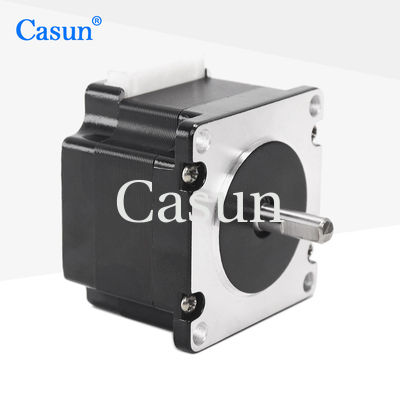

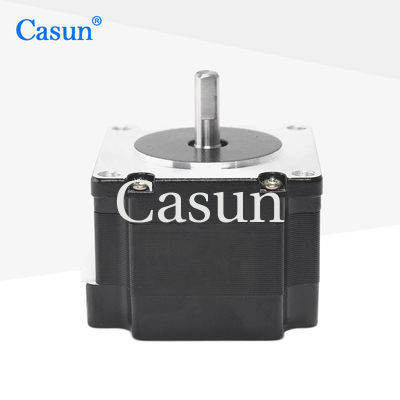

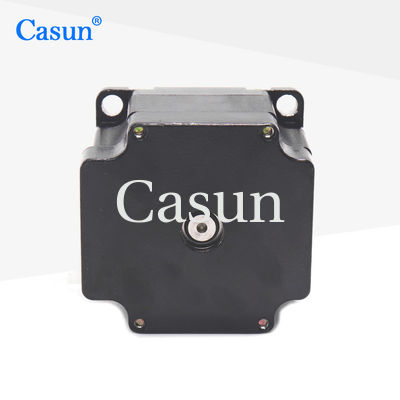

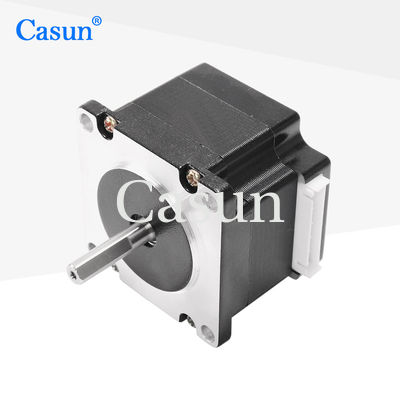

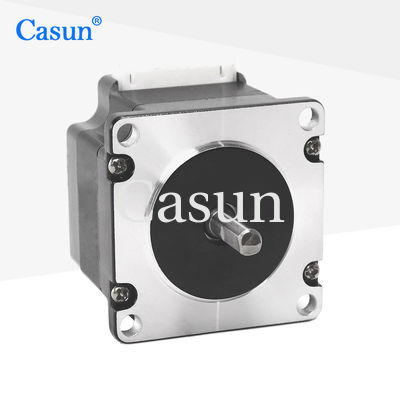

NEMA 23 TWO-PHASE 1.8° 57 STEPPER MOTOR 41MM BODY 2.4A ENGRAVING MACHINE

name

NEMA 23 TWO-PHASE 1.8° 57 STEPPER MOTOR 41MM BODY 2.4A ENGRAVING MACHINE

Brand Name: Casun
Model Number: 57SHD0048-20B
MOQ: 1PC
Price: $3.14-$5
Payment Terms: D/A, T/T, L/C, D/P
Supply Ability: 40000+PCS+Month
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE,ROHS,ISO
Step Angel:
1.8°
Holding Torque:
0.78N.m
Current:
2.4A
Motor Length:
41mm
Shaft:
Milling Flat Shaft 20mm Length
Shaft Diameter:
6.35mm
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Packaging Details:
Carton:36x29x14cm
Highlight:

57 STEPPER MOTOR

,

1.8° STEPPER MOTOR

,

41MM BODY STEPPER MOTOR

Product Description

NEMA 23 stepper motors typically have high torque output capabilities and can operate stably under various load conditions.

Widely used in various fields such as automation equipment, robots, and robotic arms.



Features:

  • High torque and high precision

  • Wanted dealers!

  • We are experts in drivetrain solutions

  • With a 12-year history in China, we have assisted over 800 clients

  • Every stepper motor model is adaptable to various applications





Motor Specifications



Step Angel

1.8 °

Fram Size

57 mm

Number of Phase

2 Phase

Rated Current

2.4 A

Holding Torque

0.78 N.m

Resistance

1.2 ohm

Inductance

3.1 mH

Rotor Inertia

170 g-cm²

Motor weight

0.45 kg

Number of leads

4

Connection

Bipolar

Appearance

NEMA 23 TWO-PHASE 1.8° 57 STEPPER MOTOR 41MM BODY 2.4A ENGRAVING MACHINE 0

Dimensions

NEMA 23 TWO-PHASE 1.8° 57 STEPPER MOTOR 41MM BODY 2.4A ENGRAVING MACHINE 1


Operating Specifications

Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min







Torque Curves













Submodels



Model Holding Torque Step Angle Length Type of Shaft Rated Current
57SHD4013-21B 0.6N.m 1.8° 41mm D Shaft-21mm 1.0A
57SHD4415-21B 1.1N.m 1.8° 54mm D Shaft-21mm 3.0A
57SHD4816-21B 2.0N.m 1.8° 76mm D Shaft-21mm 3.0A
57SHD4913-21B 2.5N.m 1.8° 83mm D Shaft-21mm 3.0A
57SHD4934-20B 3.0N.m 1.8° 100mm D Shaft-20mm 3.0A



Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder

Brake

Gearbox

Shaft
NEMA 23 TWO-PHASE 1.8° 57 STEPPER MOTOR 41MM BODY 2.4A ENGRAVING MACHINE 2 NEMA 23 TWO-PHASE 1.8° 57 STEPPER MOTOR 41MM BODY 2.4A ENGRAVING MACHINE 3 NEMA 23 TWO-PHASE 1.8° 57 STEPPER MOTOR 41MM BODY 2.4A ENGRAVING MACHINE 4 NEMA 23 TWO-PHASE 1.8° 57 STEPPER MOTOR 41MM BODY 2.4A ENGRAVING MACHINE 5



Please click the "Get a quote" button below to tell us your requirements.
