Home > products > Hybrid Stepper Motor > 1.8 Degree Stepper Motor 57x57x100mm 425oz 3.0N.m NEMA 23 For Electronic Embroidery Machine

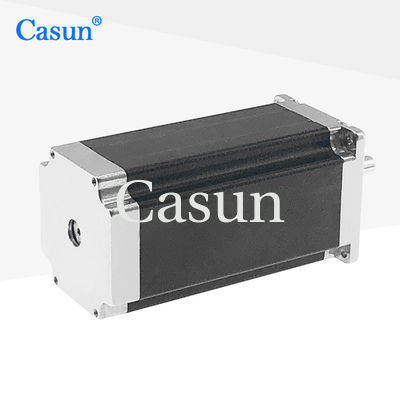

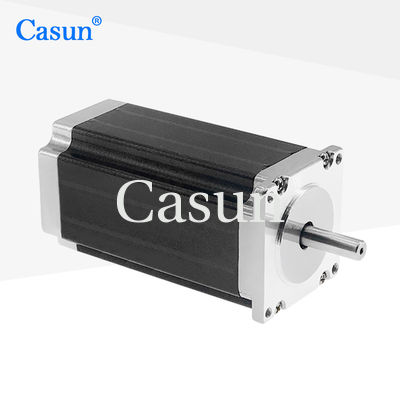

1.8 Degree Stepper Motor 57x57x100mm 425oz 3.0N.m NEMA 23 For Electronic Embroidery Machine
1.8 Degree Stepper Motor 57x57x100mm 425oz 3.0N.m NEMA 23 For Electronic Embroidery Machine
1.8 Degree Stepper Motor 57x57x100mm 425oz 3.0N.m NEMA 23 For Electronic Embroidery Machine
1.8 Degree Stepper Motor 57x57x100mm 425oz 3.0N.m NEMA 23 For Electronic Embroidery Machine
1.8 Degree Stepper Motor 57x57x100mm 425oz 3.0N.m NEMA 23 For Electronic Embroidery Machine
1.8 Degree Stepper Motor 57x57x100mm 425oz 3.0N.m NEMA 23 For Electronic Embroidery Machine

1.8 Degree Stepper Motor 57x57x100mm 425oz 3.0N.m NEMA 23 For Electronic Embroidery Machine

Product Details

Place of Origin: CHINA

Brand Name: Casun

Certification: CE,ROHS,ISO

Model Number: 57SHD4934-34B

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: $3.14-$5

Packaging Details: Carton:36x29x14cm

Delivery Time: 7-15 days

Payment Terms: D/A, T/T, L/C, D/P

Supply Ability: 40000+PCS+Month

Get Best Price

Product Details

Product Description
Product Details
Highlight:

1.8 Degree NEMA 23 Stepper Motor

,

3.0N.m NEMA 23 Stepper Motor

,

57x57x100mm NEMA 23 Stepper Motor

Step Angel:
1.8°
Holding Torque:
3000mN.m
Current:
3.0A
Motor Length:
100mm
Shaft:
Milling Flat Shaft 34mm Length
Shaft Diameter:
8mm
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Step Angel:
1.8°
Holding Torque:
3000mN.m
Current:
3.0A
Motor Length:
100mm
Shaft:
Milling Flat Shaft 34mm Length
Shaft Diameter:
8mm
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Product Description

NEMA 23 stepper motors have high speed capability, allowing for rapid rotation and positioning.

In the field of robotics, stepper motors can achieve precise motion control, improving the flexibility and stability of robots.



Features:

  • High torque and high precision

  • Deliver “various global accreditations” for machinery in the high-tech and electronics sectors

  • Professional drivetrain solution specialist

  • Specialists in professional drivetrain solutions

  • Every stepper motor model is adaptable to various applications





Motor Specifications



Step Angel

1.8 °

Fram Size

57 mm

Number of Phase

2 Phase

Rated Current

3.0 A

Holding Torque

3000 mN.m

Resistance

2.8 ohm

Inductance

11 mH

Rotor Inertia

650 g-cm²

Motor weight

1.3 kg

Number of leads

4

Connection

Bipolar

Appearance

1.8 Degree Stepper Motor 57x57x100mm 425oz 3.0N.m NEMA 23 For Electronic Embroidery Machine 0

Dimensions

1.8 Degree Stepper Motor 57x57x100mm 425oz 3.0N.m NEMA 23 For Electronic Embroidery Machine 1


Operating Specifications

Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min







Torque Curves













Submodels



Model Holding Torque Step Angle Length Type of Shaft Rated Current
57SHD4013-21B 0.6N.m 1.8° 41mm D Shaft-21mm 1.0A
57SHD4415-21B 1.1N.m 1.8° 54mm D Shaft-21mm 3.0A
57SHD4816-21B 2.0N.m 1.8° 76mm D Shaft-21mm 3.0A
57SHD4913-21B 2.5N.m 1.8° 83mm D Shaft-21mm 3.0A
57SHD4934-20B 3.0N.m 1.8° 100mm D Shaft-20mm 3.0A



Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder

Brake

Gearbox

Shaft
1.8 Degree Stepper Motor 57x57x100mm 425oz 3.0N.m NEMA 23 For Electronic Embroidery Machine 2 1.8 Degree Stepper Motor 57x57x100mm 425oz 3.0N.m NEMA 23 For Electronic Embroidery Machine 3 1.8 Degree Stepper Motor 57x57x100mm 425oz 3.0N.m NEMA 23 For Electronic Embroidery Machine 4 1.8 Degree Stepper Motor 57x57x100mm 425oz 3.0N.m NEMA 23 For Electronic Embroidery Machine 5



Please click the "Get a quote" button below to tell us your requirements.
