Home > products > Hybrid Stepper Motor > 220mN.m Hybrid Stepper Motor 1.0A 5V 1.8 Degree Four Wire Motor

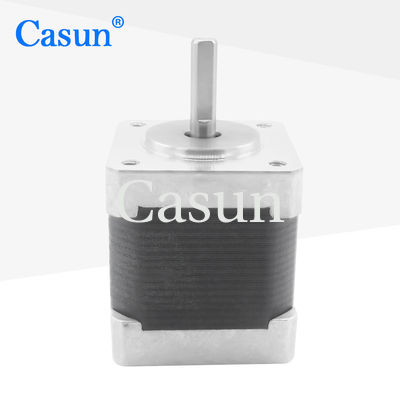

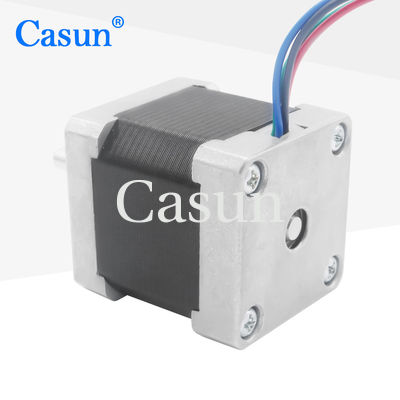

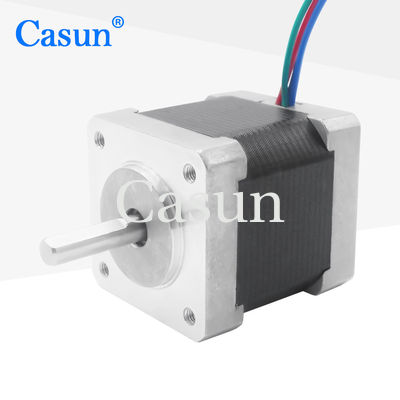

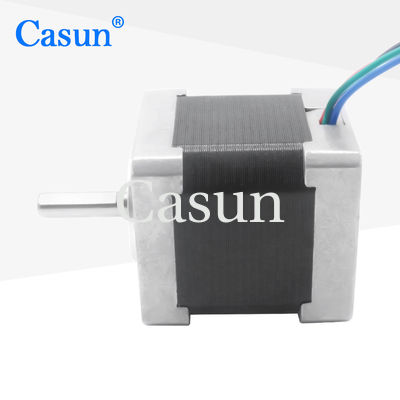

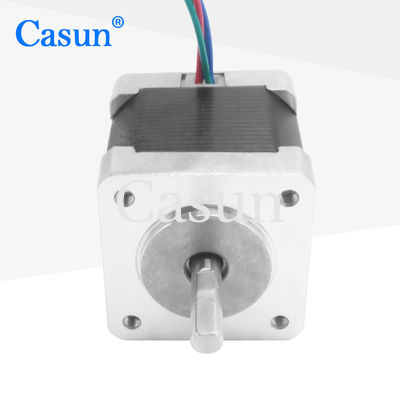

220mN.m Hybrid Stepper Motor 1.0A 5V 1.8 Degree Four Wire Motor

220mN.m Hybrid Stepper Motor 1.0A 5V 1.8 Degree Four Wire Motor

220mN.m Hybrid Stepper Motor 1.0A 5V 1.8 Degree Four Wire Motor

220mN.m Hybrid Stepper Motor 1.0A 5V 1.8 Degree Four Wire Motor

220mN.m Hybrid Stepper Motor 1.0A 5V 1.8 Degree Four Wire Motor

220mN.m Hybrid Stepper Motor 1.0A 5V 1.8 Degree Four Wire Motor

220mN.m Hybrid Stepper Motor 1.0A 5V 1.8 Degree Four Wire Motor

Product Details

Place of Origin: CHINA

Brand Name: Casun

Certification: CE,ROHS,ISO

Model Number: 35SHD4807-20Z

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: $23.94-$28.34

Packaging Details: Carton:38x29xc14m

Delivery Time: 7-15 days

Payment Terms: D/A, T/T, L/C, D/P

Supply Ability: 40000+PCS+Month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                1.0A Hybrid Stepper Motor, 1.8 degree Hybrid Stepper Motor, 220mN.m Hybrid Stepper Motor


Step Angle:	1.8°	Rated Voltage:	5V
Detent Torque:	18mN.m	Rated Current:	1.0A
Holding Torque:	220mN.m	Mass:	0.21kg

Step Angle:	1.8°
Rated Voltage:	5V
Detent Torque:	18mN.m
Rated Current:	1.0A
Holding Torque:	220mN.m
Mass:	0.21kg

Product Description

Nema14 35X35MM Hybrid Stepper Motor

The 35mm Hybrid Stepper Motor Series offers powerful holding torque in a variety of sizes.

Use with a microstepping driver to reduce vibration and achieve higher step resolution.

Choose a baseline version or request your own customized configuration.

Features:

Bipolar or unipolar versions available
Hybrid stepper construction
Available in single or double shaft versions
CE and RoHS approved
Customizations on request

Dimensions

Motor Specifications

Step Angel	1.8 °
Fram Size	35mm
Number of Phase	2 Phase
Rated Current	1Amp
Holding Torque	220mN.m
Resistance per phase	5Ω
Inductance	6.5mH
Rotor Inertia	18g-cm²
Motor weight	0.21kg
Detent torque	18mN.m
Insulation class	Class B

Operating Specifications

Step Angle: 1.8°

Maximum Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Shaft Radial Play:0.02Max. (450g-load)

Shaft Axial Play:0.08Max. (450g-load)

Max. radial force:28N (20mm from the flange)

Max. axial force):10N

Submodels

Body Length	maximum torque
20 mm	80mN.m
23 mm	120mN.m
26 mm	160mN.m
27 mm	220mN.m
30 mm	220mN.m
34 mm	250mN.m
40 mm	280mN.m
50 mm	330mN.m

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Shaft

220mN.m Hybrid Stepper Motor 1.0A 5V 1.8 Degree Four Wire Motor 1

Please click the "Get a quote" button below to tell us your requirements.

Tags:

2 Phase Bipolar Stepper Motor,

Nema 6 Bipolar Stepper Motor,

1.0A Hybrid Stepper Motor
