products details

Created with Pixso. Home Created with Pixso. Products Created with Pixso.
Hybrid Stepper Motor
Created with Pixso.

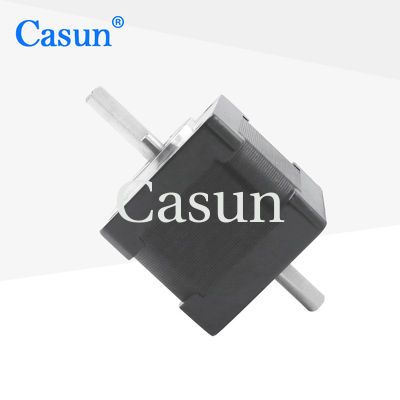

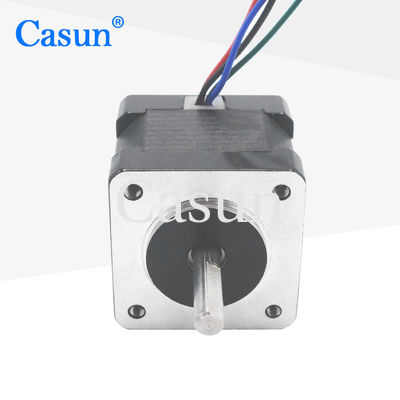

NEMA 14 4 Wires Step Motor Double Shaft Hybrid Kit 0.14Nm 1.0A Stepper Motor For Robot

name

NEMA 14 4 Wires Step Motor Double Shaft Hybrid Kit 0.14Nm 1.0A Stepper Motor For Robot

Brand Name: Casun
Model Number: P35SHD4113-21SH
MOQ: 1PC
Price: $4.14-$6.98
Payment Terms: D/A, T/T, L/C, D/P
Supply Ability: 40000+PCS+Month
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE,ROSH,ISO
Step Angel:
1.8°
Holding Torque:
60mN.m
Current:
0.4A
Motor Length:
20mm
Shaft:
Round Shaft 15mm Length
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Packaging Details:
Carton:36x29x14cm
Highlight:

1.0A NEMA 14 Stepper Motor

,

Hybrid Kit NEMA 14 Stepper Motor

,

0.14Nm NEMA 14 Stepper Motor

Product Description

The dual output shaft structure can better balance the load and reduce the wear of bearings and mechanical components.

Suitable for various mechanical structures and application scenarios, such as robots, CNC machines, 3D printers, etc.

Features:

  • Bipolar or unipolar versions available

  • High accuracy and torque

  • Available in single or double shaft versions

  • We specialize in custom solutions

  • Custom solutions and contract manufacturing are available. We are seeking dealers!





Motor Specifications

Step Angel

1.8 °

Fram Size

35 mm

Number of Phase

2 Phase

Rated Current

1.0 A

Holding Torque

140 mN.m

Resistance

2.7 ohm

Inductance

4.3 mH

Rotor Inertia

14 g-cm²

Motor weight

0.2 kg

Number of leads

4

Connection

Bipolar





Appearance



NEMA 14 4 Wires Step Motor Double Shaft Hybrid Kit 0.14Nm 1.0A Stepper Motor For Robot 0

Dimensions

NEMA 14 4 Wires Step Motor Double Shaft Hybrid Kit 0.14Nm 1.0A Stepper Motor For Robot 1





Torque Curves



















Download







If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Connector

Please click the "Get  a quote" button below to tell us your requirements.











Tags:

2 Phase Bipolar Stepper Motor

Nema 6 Bipolar Stepper Motor

1.0A NEMA 14 Stepper Motor
