products details

Created with Pixso. Home Created with Pixso. Products Created with Pixso.
Hybrid Stepper Motor
Created with Pixso.

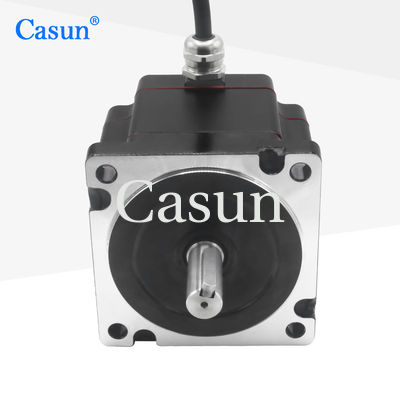

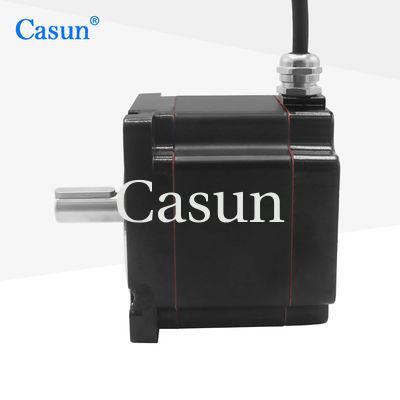

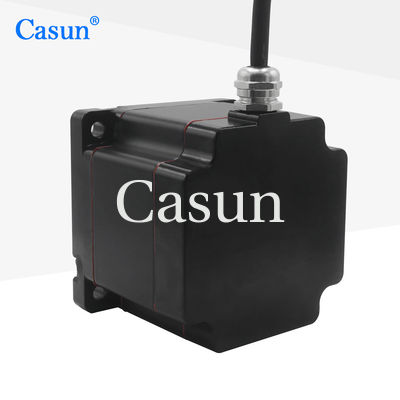

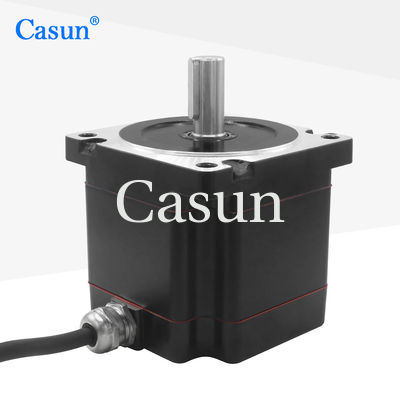

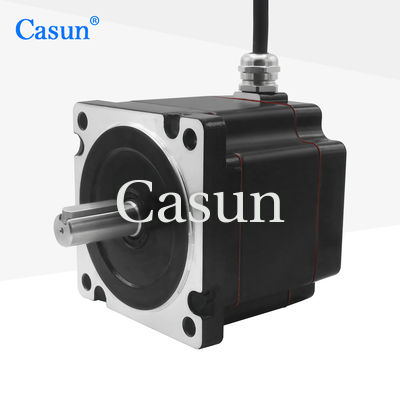

1.8 Degree 2 Phase NEMA 34 Waterproof Stepper Motor 76mm Body 5.2N.m

name

1.8 Degree 2 Phase NEMA 34 Waterproof Stepper Motor 76mm Body 5.2N.m

Brand Name: Casun
Model Number: F86SHD4112-32H
MOQ: 1PC
Price: $24.92-$25.96
Payment Terms: D/A, T/T, L/C, D/P
Supply Ability: 40000+PCS+Month
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE,ROSH,ISO
Step Angel:
1.8°
Holding Torque:
5.2N.m
Current:
5.0A
Motor Length:
76mm
Shaft:
Keyway Shaft 32mm Length
Packaging Details:
Carton:36x29x14cm
Highlight:

76mm NEMA 34 Stepper Motor

,

Waterproof NEMA 34 Stepper Motor

,

5.2N.m NEMA 34 Stepper Motor

Product Description

NEMA 34 is capable of driving heavier loads and is suitable for high-precision and high load motion control.

NEMA 34 stepper motors are widely used in various fields such as 3D printers, CNC machine tools, automation equipment, medical equipment, etc.



Features:

  • We are a professional research and development manufacturing company

  • Enjoy a ten-year warranty and purchase with confidenc

  • We provide tailored services and welcome contract-based production

  • High torque and precision guaranteed

  • Expect a response from our engineers within 48 hours with the best solution for your needs

Dimensions

1.8 Degree 2 Phase NEMA 34 Waterproof Stepper Motor 76mm Body 5.2N.m 0





Motor Specifications

Step Angel



 1.8 °

Fram Size



 86 mm

Number of Phase



 2 Phase

Rated Current



 5.0 A

Holding Torque



 5.2N.m

Resistance



 0.75ohm

Inductance



 6.4mH

Rotor Inertia



 1400 g-cm²

Motor weight



 2.3 kg

Number of leads



 4

Connection



 Bipolar





Operating Specifications

Step Angle: 1.8°

Maximum Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min









Torque Curves







Submodels



Model Holding Torque Step Angle Length Type of Shaft Rated Current
86SHD4003-32 4.0N.m 1.8° 69mm Key Shaft-32mm 4.0A
86SHD4101-32 4.5N.m 1.8° 76mm Key Shaft-32mm 4.0A
86SHD4201-37 5.6N.m 1.8° 98mm Key Shaft-37mm 4.0A
86SHD4314-37 6.8N.m 1.8° 112mm Key Shaft-37mm 5.0A
86SHD4404-37 8.0N.m 1.8° 127mm Key Shaft-37mm 5.0A
86SHD4505-37 12.0N.m 1.8° 150mm Key Shaft-37mm 5.5A



Download





If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Shaft

1.8 Degree 2 Phase NEMA 34 Waterproof Stepper Motor 76mm Body 5.2N.m 1 1.8 Degree 2 Phase NEMA 34 Waterproof Stepper Motor 76mm Body 5.2N.m 2 1.8 Degree 2 Phase NEMA 34 Waterproof Stepper Motor 76mm Body 5.2N.m 3 1.8 Degree 2 Phase NEMA 34 Waterproof Stepper Motor 76mm Body 5.2N.m 4





Please click the "Get a quote" button below to tell us your requirements.
