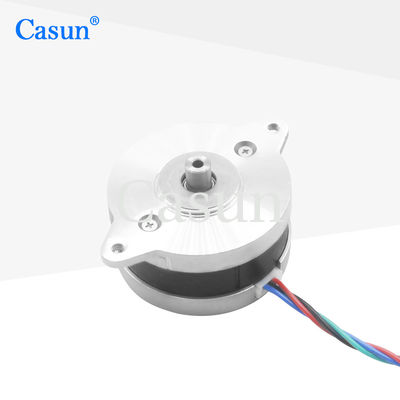

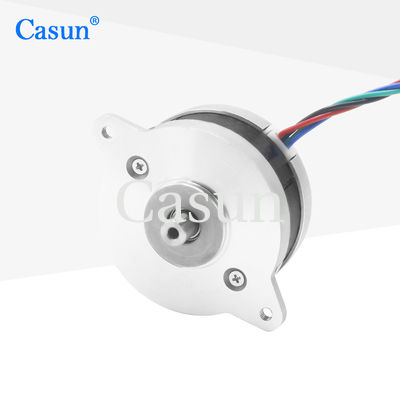

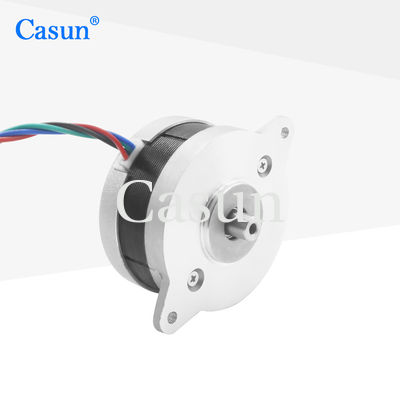

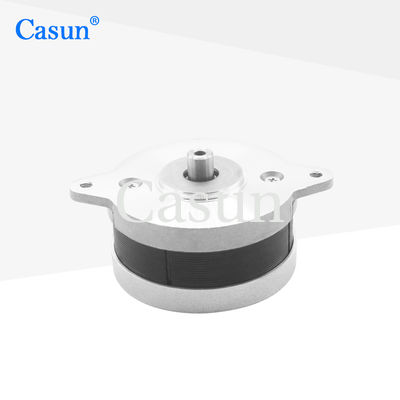

1.8 Degree 2 Phase 1.0A 100mN.m NEMA 14 Hybrid Stepper Motor With CE ISO

name

1.8 Degree 2 Phase 1.0A 100mN.m NEMA 14 Hybrid Stepper Motor With CE ISO

Brand Name: Casun
Model Number: 36SHD4401-6K
MOQ: 1PC
Price: $4.14-$6.98
Payment Terms: D/A, T/T, L/C, D/P
Supply Ability: 40000+PCS+Month
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE,ROHS,ISO
Step Angel:
1.8°
Holding Torque:
100mN.m
Current:
1.0A
Motor Length:
18.6mm
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Packaging Details:
Carton:36x29x14cm
Highlight:

100mN.m NEMA 14 Hybrid Stepper Motor

,

1.0A NEMA 14 Hybrid Stepper Motor

,

1.8 Degree NEMA 14 Stepper Motor

Product Description

Capable of stable operation in different working environments, including high temperature, low temperature, and humidity, with strong adaptability.

Made with high-quality materials and processes, it has strong durability and anti-interference ability.



Features:

  • We welcome contract manufacturing projects

  • Offer specialised services

  • Available in single or double shaft versions

  • Our stepper motors are versatile and adaptable to various applications

  • We provide custom services and undertake contract manufacturing





Motor Specifications

Step Angel

1.8 °

Fram Size

36 mm

Number of Phase

2 Phase

Rated Current

1.0 A

Holding Torque

100 mN.m

Resistance

2.15 ohm

Inductance

8.0 mH

Rotor Inertia

13.7 g-cm²

Motor weight

0.07 kg

Number of leads

4

Connection

Bipolar





Appearance



1.8 Degree 2 Phase 1.0A 100mN.m NEMA 14 Hybrid Stepper Motor With CE ISO 0

Dimensions

1.8 Degree 2 Phase 1.0A 100mN.m NEMA 14 Hybrid Stepper Motor With CE ISO 1



Torque Curves









Download







If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Connector

Please click the "Get  a quote" button below to tell us your requirements.
