Home > products > Hybrid Stepper Motor > NEMA 23 Dual Axis 8 Leads 1.8 Degree 1.26N.m Stepper Motor 57x57mm For CNC
NEMA 23 Dual Axis 8 Leads 1.8 Degree 1.26N.m Stepper Motor 57x57mm For CNC
NEMA 23 Dual Axis 8 Leads 1.8 Degree 1.26N.m Stepper Motor 57x57mm For CNC
NEMA 23 Dual Axis 8 Leads 1.8 Degree 1.26N.m Stepper Motor 57x57mm For CNC
NEMA 23 Dual Axis 8 Leads 1.8 Degree 1.26N.m Stepper Motor 57x57mm For CNC
NEMA 23 Dual Axis 8 Leads 1.8 Degree 1.26N.m Stepper Motor 57x57mm For CNC

NEMA 23 Dual Axis 8 Leads 1.8 Degree 1.26N.m Stepper Motor 57x57mm For CNC

Product Details

Place of Origin: CHINA

Brand Name: Casun

Certification: CE,ROHS,ISO

Model Number: 57SHD8409-21S

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: $3.14-$5

Packaging Details: Carton:36x29x14cm

Delivery Time: 7-15 days

Payment Terms: D/A, T/T, L/C, D/P

Supply Ability: 40000+PCS+Month

Get Best Price

Product Details

Product Description
Product Details
Highlight:

1.8 Degree NEMA 23 Stepper Motor

,

1.26N.m NEMA 23 Stepper Motor

,

57x57mm NEMA 23 Stepper Motor

Step Angel:
1.8°
Holding Torque:
1.26N.m
Current:
4.24A
Motor Length:
56mm
Shaft:
Dual Shaft 21mm Length
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Step Angel:
1.8°
Holding Torque:
1.26N.m
Current:
4.24A
Motor Length:
56mm
Shaft:
Dual Shaft 21mm Length
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Product Description

The dual output shaft design allows the motor to simultaneously drive two different loads or perform two different tasks.

Its flexible axis configuration allows it to be used in various applications, including robots, automation equipment, precision instruments, and more.



Features:

  • Experts in drivetrain solutions

  • We are open to contract manufacturing arrangements

  • Every stepper motor model is adaptable to various applications

  • Dealers are actively sought after

  • Our stepper motors are versatile and adaptable to various applications





Motor Specifications



Step Angel

1.8 °

Fram Size

57 mm

Number of Phase

4 Phase

Rated Current

4.24A / 2.12A / 3.0A

Holding Torque

1.26N.m / 0.9N.m

Resistance

1.05ohm / 0.375ohm / 0.75ohm

Inductance

4.4 mH / 1.1mH

Rotor Inertia

220 g-cm²

Motor weight1

0.7 kg

Number of leads

8

Connection

Bipolar

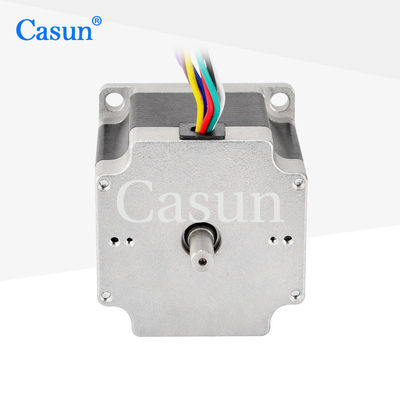

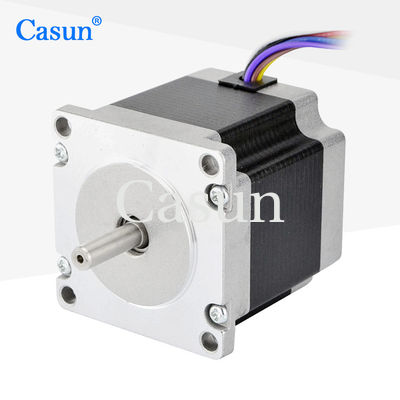

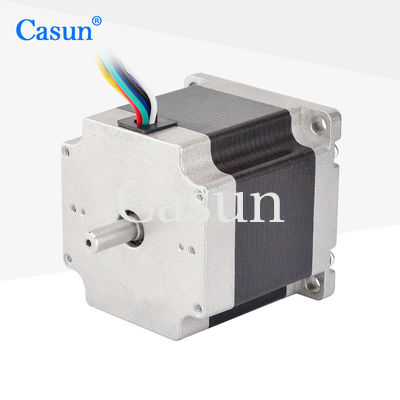

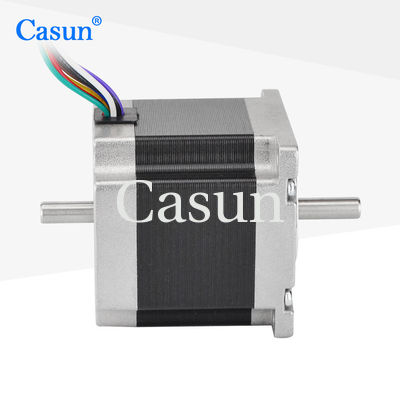

Appearance

NEMA 23 Dual Axis 8 Leads 1.8 Degree 1.26N.m Stepper Motor 57x57mm For CNC 0

Dimensions

NEMA 23 Dual Axis 8 Leads 1.8 Degree 1.26N.m Stepper Motor 57x57mm For CNC 1


Operating Specifications

Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min







Torque Curves













Submodels



Model Holding Torque Step Angle Length Type of Shaft Rated Current
57SHD4013-21B 0.6N.m 1.8° 41mm D Shaft-21mm 1.0A
57SHD4415-21B 1.1N.m 1.8° 54mm D Shaft-21mm 3.0A
57SHD4816-21B 2.0N.m 1.8° 76mm D Shaft-21mm 3.0A
57SHD4913-21B 2.5N.m 1.8° 83mm D Shaft-21mm 3.0A
57SHD4934-20B 3.0N.m 1.8° 100mm D Shaft-20mm 3.0A



Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder

Brake

Gearbox

Shaft
NEMA 23 Dual Axis 8 Leads 1.8 Degree 1.26N.m Stepper Motor 57x57mm For CNC 2 NEMA 23 Dual Axis 8 Leads 1.8 Degree 1.26N.m Stepper Motor 57x57mm For CNC 3 NEMA 23 Dual Axis 8 Leads 1.8 Degree 1.26N.m Stepper Motor 57x57mm For CNC 4 NEMA 23 Dual Axis 8 Leads 1.8 Degree 1.26N.m Stepper Motor 57x57mm For CNC 5



Please click the "Get a quote" button below to tell us your requirements.
