4 Phase Hybrid NEMA 17 Stepper Motor 145mN.m 8 Wire For Optical Device

name

4 Phase Hybrid NEMA 17 Stepper Motor 145mN.m 8 Wire For Optical Device

Brand Name: Casun
Model Number: 42SHD8909-24
MOQ: 1PC
Price: $3.14-$5
Payment Terms: D/A, T/T, L/C, D/P
Supply Ability: 40000+PCS+Month
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE,ROSH,ISO
Step Angel:
1.8°
Holding Torque:
145mN.m
Current:
1.0A
Motor Length:
23mm
Shaft:
Round Shaft 24mm Length
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Packaging Details:
Carton:36x29x14cm
Highlight:

8 wire NEMA 17 Stepper Motor

,

145mN.m NEMA 17 Stepper Motor

,

1.0A NEMA 17 Stepper Motor

Product Description

Suitable for high-end equipment and industrial scenarios, it can provide finer control and greater torque, making it an ideal choice for precise motion control.

There are 4 windings, and each phase also has two coils.



Features:

  • Customizations on request

  • Hybrid stepper construction

  • Available in single or double shaft versions

  • Our engineers will be in touch within 48 hours to provide the best solution

  • Each model of stepper motor can be suitable for different scenarios

Appearance

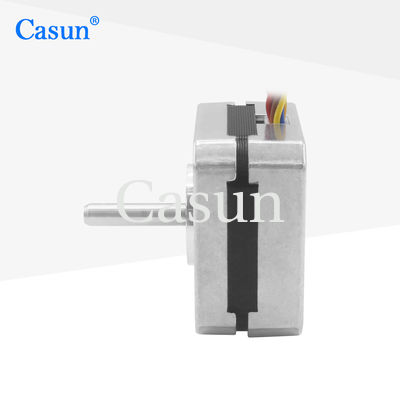

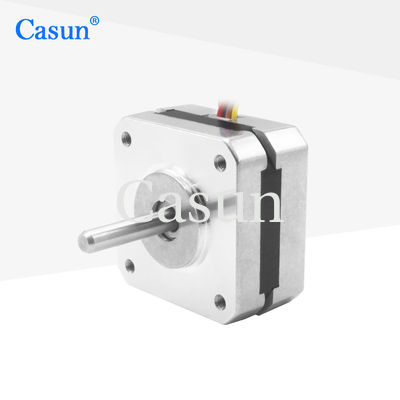

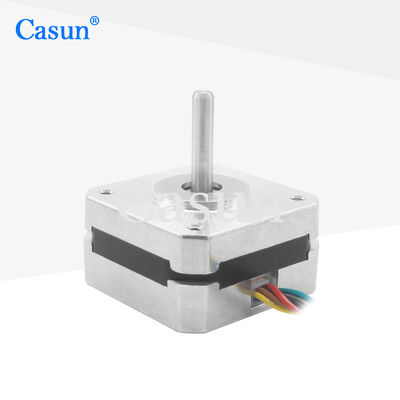

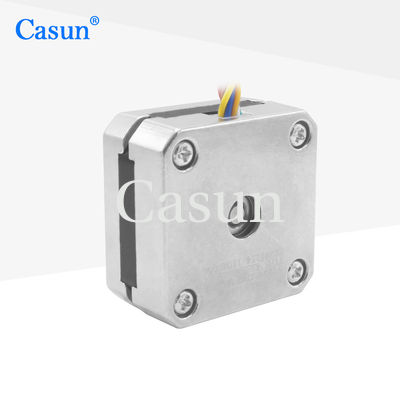

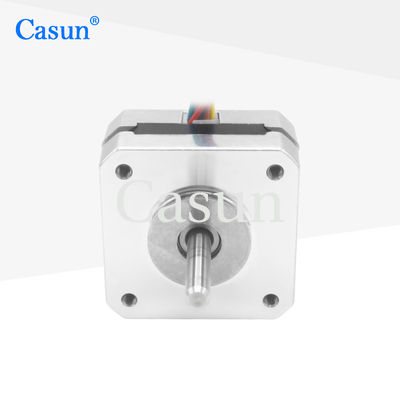

4 Phase Hybrid NEMA 17 Stepper Motor 145mN.m 8 Wire For Optical Device 0

Dimensions

4 Phase Hybrid NEMA 17 Stepper Motor 145mN.m 8 Wire For Optical Device 1



Motor Specifications

Step Angel

1.8 °

Fram Size

40 mm

Number of Phase

4 Phase

Rated Current

1.0 A

Holding Torque

145 mN.m

Resistance

3.2 ohm

Inductance

3.5 mH

Rotor Inertia

15 g-cm²

Motor weight

0.2 kg

Number of leads

8

Connection

Bipolar

Operating Specifications

Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min







Torque Curves













Submodels

Model Holding Torque Step Angle Motor Length Type of Shaft Rated Current
42SHD4950 0.13N.m 1.8° 20mm D Shaft-20mm 1.0A
42SHD4003 0.26N.m 1.8° 34mm D Shaft-20mm 0.4A
42SHD0261 0.45N.m 1.8° 40mm D Shaft-20mm 1.68A
42SHD4425 0.59N.m 1.8° 48mm D Shaft-24mm 2.0A
42SHD4813 0.8N.m 1.8° 60mm D Shaft-24mm 2.1A





Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder

Brake

Gearbox

Shaft
4 Phase Hybrid NEMA 17 Stepper Motor 145mN.m 8 Wire For Optical Device 2 4 Phase Hybrid NEMA 17 Stepper Motor 145mN.m 8 Wire For Optical Device 3 4 Phase Hybrid NEMA 17 Stepper Motor 145mN.m 8 Wire For Optical Device 4 4 Phase Hybrid NEMA 17 Stepper Motor 145mN.m 8 Wire For Optical Device 5



Please click the "Get a quote" button below to tell us your requirements.
