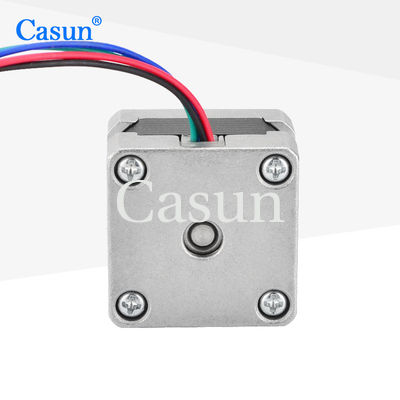

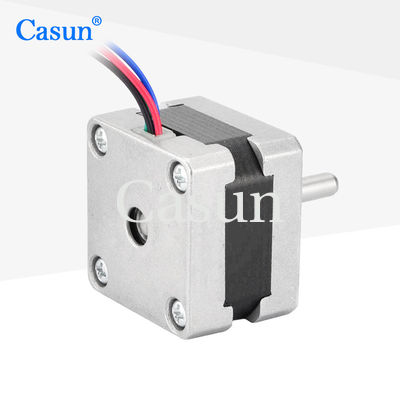

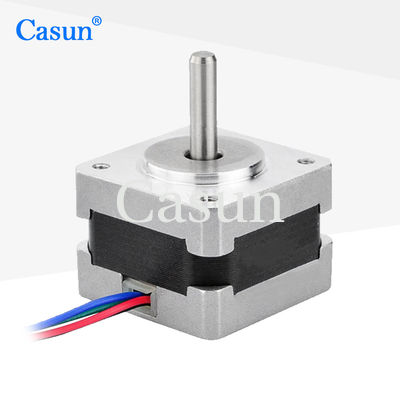

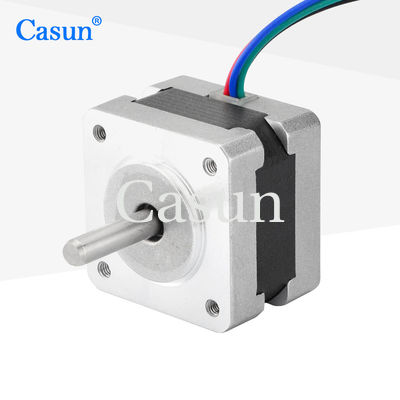

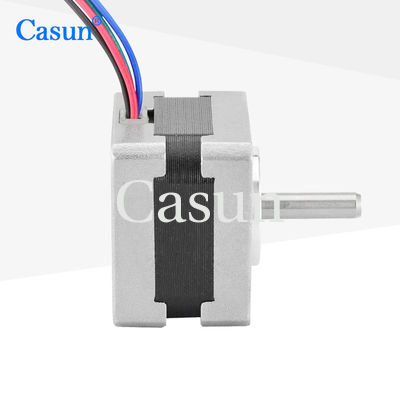

2 Phase 1.8 Deg Nema 14 Stepping Motor 12V 26mm Body 0.14N.m For Stage Lighting

name

2 Phase 1.8 Deg Nema 14 Stepping Motor 12V 26mm Body 0.14N.m For Stage Lighting

Brand Name: Casun
Model Number: P35SHD4003-10B
MOQ: 1PC
Price: $4.14-$6.98
Payment Terms: D/A, T/T, L/C, D/P
Supply Ability: 40000+PCS+Month
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE,ROHS,ISO
Step Angel:
1.8°
Holding Torque:
100mN.m
Current:
0.4A
Motor Length:
26mm
Shaft:
Milling Flat Shaft 10mm Length
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Packaging Details:
Carton:36x29x14cm
Highlight:

12V Nema 14 Stepping Motor

,

0.14N.m Nema 14 Stepping Motor

,

2 Phase Nema 14 Stepping Motor

Product Description

Easy to install in various devices, such as 3D printers, robots, automation equipment, etc.

The noise generated by stepper motors during operation is relatively small, making them suitable for applications with high noise requirements.



Features:

  • Bipolar or unipolar versions available

  • Hybrid stepper construction

  • Expertise in transmission system solutions, with a focus on specialized expertise

  • Seeking dealers! !

  • Ten-year warranty and purchase with confidence





Motor Specifications

Step Angel

1.8 °

Fram Size

35 mm

Number of Phase

2 Phase

Rated Current

0.4 A

Holding Torque

140 mN.m

Resistance

30 ohm

Inductance

26.5 mH

Rotor Inertia

12 g-cm²

Motor weight

0.15 kg

Number of leads

4

Connection

Bipolar





Appearance



2 Phase 1.8 Deg Nema 14 Stepping Motor 12V 26mm Body 0.14N.m For Stage Lighting 0

Dimensions

2 Phase 1.8 Deg Nema 14 Stepping Motor 12V 26mm Body 0.14N.m For Stage Lighting 1







Torque Curves



















Download







If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Connector

Please click the "Get  a quote" button below to tell us your requirements.
