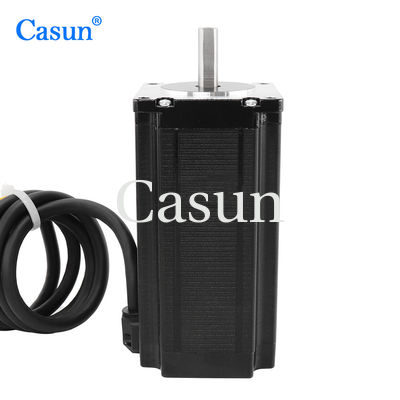

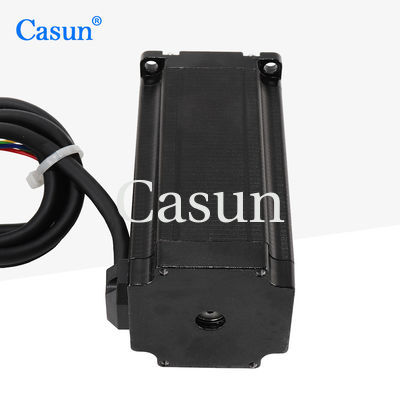

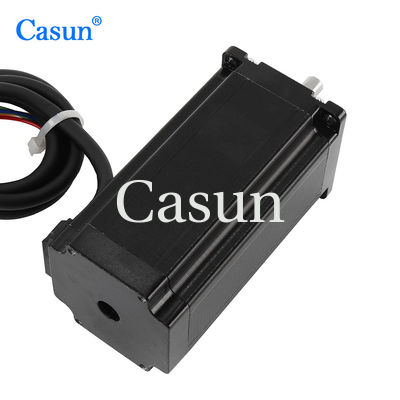

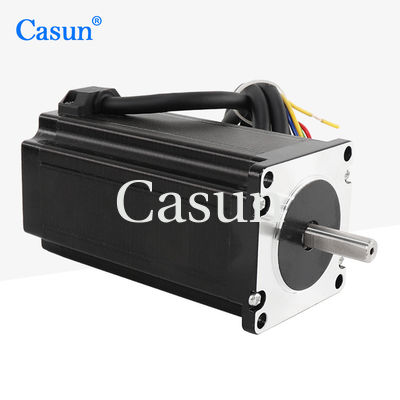

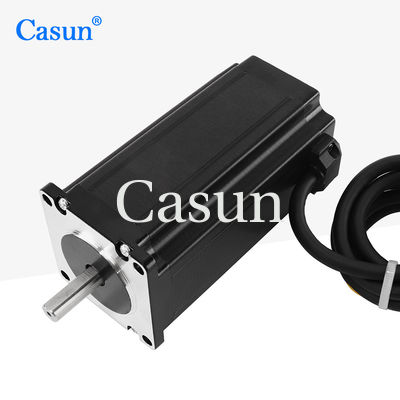

NEMA 23 Two - Phase 1.8° 57 STEPPER MOTOR 112mm Body High Torque 2.8A For CNC Mechanical Arm

name

NEMA 23 Two - Phase 1.8° 57 STEPPER MOTOR 112mm Body High Torque 2.8A For CNC Mechanical Arm

Brand Name: Casun
Model Number: 23HS11240
MOQ: 1PC
Price: $3.14-$5
Payment Terms: D/A, T/T, L/C, D/P
Supply Ability: 40000+PCS+Month
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE,ROHS,ISO
Step Angel:
1.8°
Holding Torque:
3.0N.m
Current:
4.0A
Motor Length:
112mm
Shaft:
Milling Flat Shaft 21mm Length
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Packaging Details:
Carton:36x29x14cm
Highlight:

2.8A NEMA 23 Stepper Motor

,

112mm NEMA 23 Stepper Motor

,

High Torque NEMA 23 Stepper Motor

Product Description

Users can adjust the driving current and control signal to change the speed and torque of the motor to meet the needs of different applications.

It has the advantages of high-precision control, powerful power output, good dynamic performance, efficient energy conversion, excellent stability, and easy control and maintenance.



Features:

  • High torque and high precision

  • We specialize in custom solutions

  • Provide "multiple international certifications"

  • We have a proven track record of success, serving over 800 customers in China for the past 12 years

  • High torque and high precision

Appearance

NEMA 23 Two - Phase 1.8° 57 STEPPER MOTOR 112mm Body High Torque 2.8A For CNC Mechanical Arm 0

Dimensions

NEMA 23 Two - Phase 1.8° 57 STEPPER MOTOR 112mm Body High Torque 2.8A For CNC Mechanical Arm 1

Motor Specifications



Step Angel

1.8 °

Fram Size

57 mm

Number of Phase

2 Phase

Rated Current

4.0 A

Holding Torque

3.0 N.m

Resistance

1.6 ohm

Inductance

6.8 mH

Rotor Inertia

800 g-cm²

Motor weight

1.7 kg

Number of leads

4

Connection

Bipolar

Operating Specifications

Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min







Torque Curves













Submodels



Model Holding Torque Step Angle Length Type of Shaft Rated Current
57SHD4013-21B 0.6N.m 1.8° 41mm D Shaft-21mm 1.0A
57SHD4415-21B 1.1N.m 1.8° 54mm D Shaft-21mm 3.0A
57SHD4816-21B 2.0N.m 1.8° 76mm D Shaft-21mm 3.0A
57SHD4913-21B 2.5N.m 1.8° 83mm D Shaft-21mm 3.0A
57SHD4934-20B 3.0N.m 1.8° 100mm D Shaft-20mm 3.0A



Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder

Brake

Gearbox

Shaft
NEMA 23 Two - Phase 1.8° 57 STEPPER MOTOR 112mm Body High Torque 2.8A For CNC Mechanical Arm 2 NEMA 23 Two - Phase 1.8° 57 STEPPER MOTOR 112mm Body High Torque 2.8A For CNC Mechanical Arm 3 NEMA 23 Two - Phase 1.8° 57 STEPPER MOTOR 112mm Body High Torque 2.8A For CNC Mechanical Arm 4 NEMA 23 Two - Phase 1.8° 57 STEPPER MOTOR 112mm Body High Torque 2.8A For CNC Mechanical Arm 5



Please click the "Get a quote" button below to tell us your requirements.
