57×57×100mm Stepping Motor 3.0A 3.4N.m For Conveyer Belt NEMA 23

name

57×57×100mm Stepping Motor 3.0A 3.4N.m For Conveyer Belt NEMA 23

Brand Name: Casun
Model Number: 57SHD4934-20B
MOQ: 1PC
Price: $3.14-$5
Payment Terms: D/A, T/T, L/C, D/P
Supply Ability: 40000+PCS+Month
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE,ROHS,ISO
Step Angel:
1.8°
Holding Torque:
3400mN.m
Current:
3.0A
Motor Length:
100mm
Shaft:
Milling Flat Shaft 20mm Length
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Packaging Details:
Carton:36x29x14cm
Highlight:

3.0A NEMA 23 Stepping Motor

,

NEMA 23 Stepping Motor

,

3.4N.m NEMA 23 Stepping Motor

Product Description

Due to its simple control method and structure, the production cost of stepper motors is relatively low.

Due to the absence of a commutator in stepper motors, mechanical wear is reduced, and the lifespan and reliability of the motor are improved.

Features:

  • High accuracy and torque

  • Enjoy a ten-year warranty and complete peace of mind

  • Boasting high torque and precision

  • Providing tailored solutions and open to OEM collaborations. Seeking distributors!

  • Based in China for 12 years and has assisted over 800 clients





Motor Specifications

Step Angel

1.8 °

Fram Size

57 mm

Number of Phase

4 Phase

Rated Current

3.0 A

Holding Torque

3400 mN.m

Resistance

2.8 ohm

Inductance

11 mH

Rotor Inertia

650 g-cm²

Motor weight

1.3 kg

Number of leads

4

Connection

Bipolar

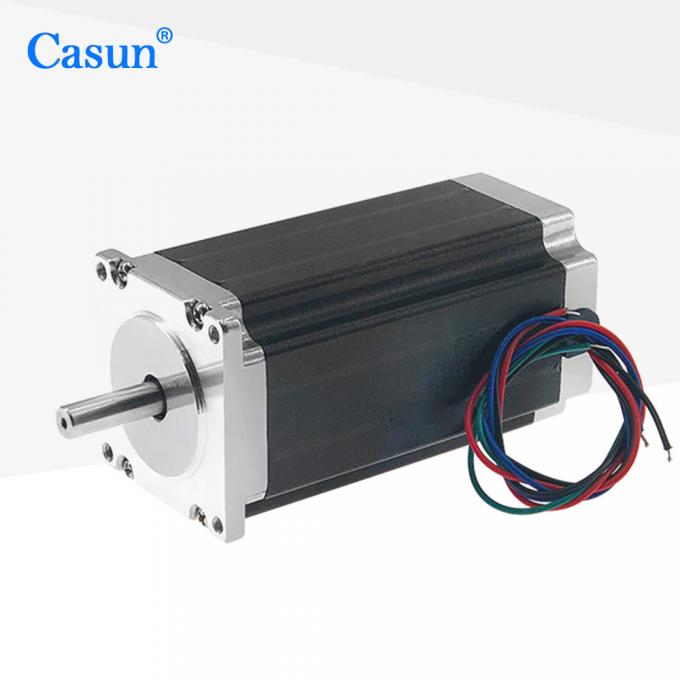

Appearance

57×57×100mm Stepping Motor 3.0A 3.4N.m For Conveyer Belt NEMA 23 0

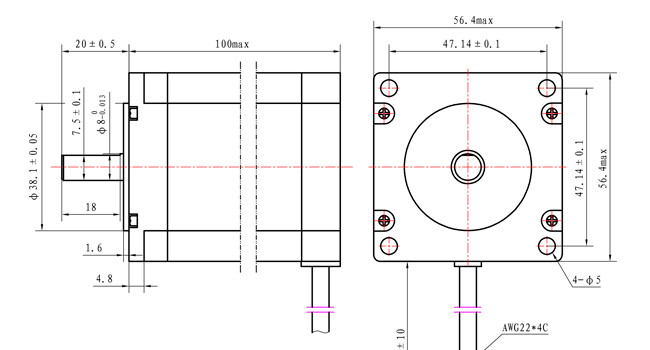

Dimensions

57×57×100mm Stepping Motor 3.0A 3.4N.m For Conveyer Belt NEMA 23 1


Operating Specifications

Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min







Torque Curves













Submodels



Model Holding Torque Step Angle Length Type of Shaft Rated Current
57SHD4013-21B 0.6N.m 1.8° 41mm D Shaft-21mm 1.0A
57SHD4415-21B 1.1N.m 1.8° 54mm D Shaft-21mm 3.0A
57SHD4816-21B 2.0N.m 1.8° 76mm D Shaft-21mm 3.0A
57SHD4913-21B 2.5N.m 1.8° 83mm D Shaft-21mm 3.0A
57SHD4934-20B 3.0N.m 1.8° 100mm D Shaft-20mm 3.0A



Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder

Brake

Gearbox

Shaft
57×57×100mm Stepping Motor 3.0A 3.4N.m For Conveyer Belt NEMA 23 2 57×57×100mm Stepping Motor 3.0A 3.4N.m For Conveyer Belt NEMA 23 3 57×57×100mm Stepping Motor 3.0A 3.4N.m For Conveyer Belt NEMA 23 4 57×57×100mm Stepping Motor 3.0A 3.4N.m For Conveyer Belt NEMA 23 5



Please click the "Get a quote" button below to tell us your requirements.
