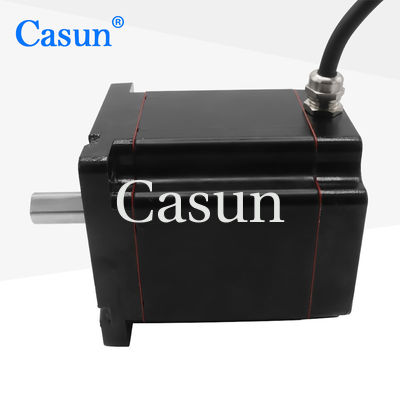

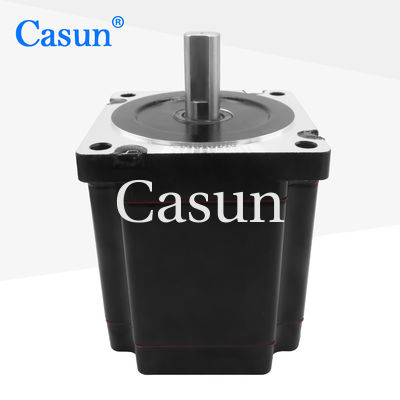

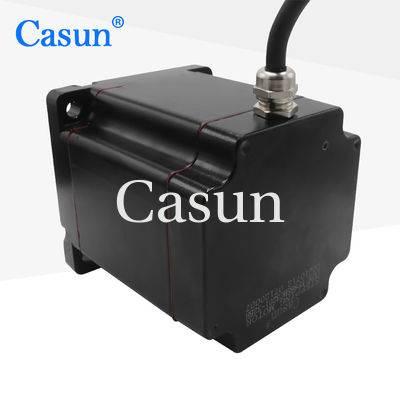

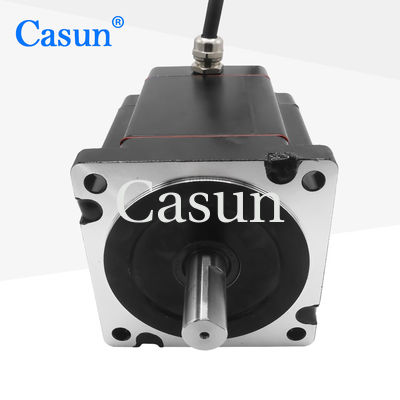

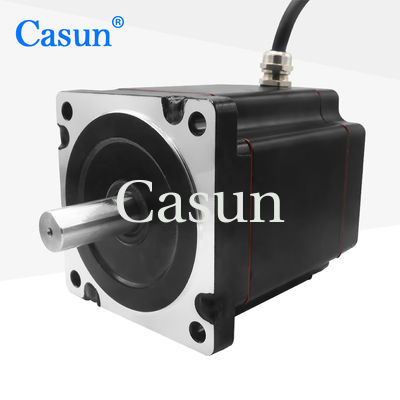

Casun Nema 34 High Tough And Precision 1.2° 4.0N.m Hybrid Stepper Motor For CNC

Casun Nema 34 High Tough And Precision 1.2° 4.0N.m Hybrid Stepper Motor For CNC

Brand Name:	Casun
Model Number:	FP86SHC3201-32BH
MOQ:	1PC
Price:	$27.95-$29.84
Payment Terms:	D/A, T/T, L/C, D/P
Supply Ability:	40000+PCS+Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE,ROHS,ISO

Packaging Details:

Carton:38x29x18cm

Highlight:

CASUN Hybrid Stepper Motor

CNC Hybrid Stepper Motor

Nema 34 Hybrid Stepper Motor

Product Description

Casun Nema 34 High Tough and Precision 1.2° 4.0N.m Hybrid Stepper Motor

The Casun Nema 34 Stepper Motor is a high-torque, high-precision hybrid stepper motor with a 1.2° step angle, delivering a robust 4.0 N.m holding torque. Engineered for demanding industrial applications, this motor ensures exceptional accuracy, smooth operation, and reliable performance in CNC machines, automation systems, robotics, and other precision motion control setups. Its hybrid design combines the benefits of permanent magnet and variable reluctance technologies, offering superior efficiency, low vibration, and long-term durability.

Key Features

Bipolar or unipolar versions available
Hybrid stepper construction
Available in single or double shaft versions
CE and RoHS approved
Customizations on request

Dimensions

Motor Specifications

Step Angle	1.2°
Frame Size	98 mm
Number of Phase	2 Phase
Rated Current	3.5 Amp
Holding Torque	4.0 N.m
Resistance	3.9 ohm
Inductance	22.2 mH
Rotor Inertia	1700 g.cm²
Motor Weight	2.9 kg
Connection	Bipolar

Operating Specifications

Motor

Step Angle	1.2°
Maximum Temperature	80°C maximum
Ambient Temperature	-20°C to 50°C
Storage Temperature	-20°C to 100°C
Humidity Range	85% or less, non-condensing
Magnet Wire Insulation	Class B 130°C
Insulation Resistance	100M Ohm at 500 VDC
Dielectric Strength	500 VDC for 1 min

Encoder

Voltage	5V
Output	A + A - B + B - Z + Z -

Available Submodels

Model	Holding Torque	Step Angle	Length	Type of Shaft	Rated Current
86SHD4003	4 N.m	1.8°	69 mm	KEY Shaft-32mm	4 A
86SHD4101	4.5 N.m	1.8°	76 mm	KEY Shaft-32mm	4 A
86SHD4201	5.6 N.m	1.8°	98 mm	KEY Shaft-37mm	4 A
86SHD4315	6.8 N.m	1.8°	112 mm	KEY Shaft-37mm	5 A
86SHD4505	12 N.m	1.8°	150 mm	KEY Shaft-37mm	5.5 A

Customization Options

If our standard motor cannot meet your needs, we can customize the motor according to your requirements. Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, and more.

Available Options

Please click the button below to tell us your requirements and get a customized quote.
