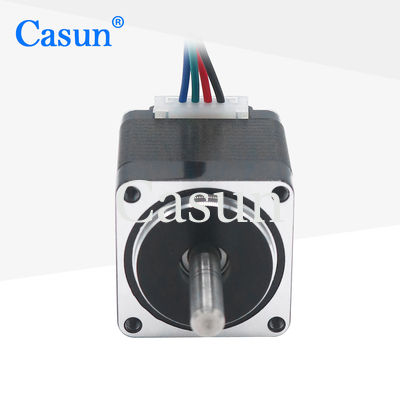

Nema 11 High Tough And Precision 80mN.m 0.67A Stepper Motor For Medical Machine

Nema 11 High Tough And Precision 80mN.m 0.67A Stepper Motor For Medical Machine

Brand Name:	Casun
Model Number:	28SHD4207-20
MOQ:	1PC
Price:	$8.88~$9.53
Payment Terms:	D/A, T/T, L/C, D/P
Supply Ability:	40000+PCS+Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE,ROHS,ISO

Phase:

Insulation Class:

Class B

Phase Resistance:

5.8ohms

Current:

0.67A

Voltage:

3.89V

Body Length:

33 Mm

Holding Torque:

80 MN.m

Weight:

0.12 Kg

Shaft Length:

20 Mm

Packaging Details:

Carton:38x29x18cm

Highlight:

80mN.m Stepper Motor

Medical Machine Stepper Motor

Precision Stepper Motor

Product Description

Nema 11 High Tough And Precision 80mN.m 0.67A Stepper Motor For Medical Machine

Casun Nema 11 High-Toughness Precision Stepper Motor delivers exceptional performance with 80 mN.m torque and 0.67 A current, making it ideal for medical machinery and other high-precision applications. Engineered for durability, accuracy, and smooth operation, this compact Nema 11 stepper motor ensures reliable motion control in demanding environments. Its high-toughness design enhances longevity, while the precise torque output guarantees consistent performance for sensitive medical equipment. Perfect for surgical devices, lab automation, and diagnostic tools requiring compact size, high precision, and robust construction.

Key Features

Bipolar or unipolar versions available
Hybrid stepper construction
Available in single or double shaft versions
CE and RoHS approved
Customizations on request

Dimensions

Motor Specifications

Step Angle	1.8°
Frame Size	32 mm
Number of Phase	2 Phase
Rated Current	0.67 Amp
Holding Torque	80 mN.m
Resistance	5.8 ohm
Inductance	4.1 mH
Rotor Inertia	9 g.cm²
Motor Weight	0.12 kg
Connection	Bipolar

Operating Specifications

Motor

Step Angle	1.8°
Maximum Temperature	80°C maximum
Ambient Temperature	-20°C to 50°C
Storage Temperature	-20°C to 100°C
Humidity Range	85% or less, non-condensing
Magnet Wire Insulation	Class B 130°C
Insulation Resistance	100M Ohm at 500 VDC
Dielectric Strength	500 VDC for 1 min

Encoder

Voltage	5V
Output	A + A - B + B - Z + Z -

Available Models

Model	Holding Torque	Step Angle	Length	Type of Shaft	Rated Current
28SHD4001	30 mN.m	1.8°	25 mm	Round Shaft-15mm	0.4 A
28SHD4202	60 mN.m	1.8°	32 mm	Round Shaft-15mm	0.67 A
28SHD4303	80 mN.m	1.8°	40.5 mm	Round Shaft-15mm	0.67 A
28SHD4401	95 mN.m	1.8°	44.5 mm	Round Shaft-15mm	0.67 A
28SHD4501	120 mN.m	1.8°	51.5 mm	Round Shaft-15mm	0.67 A

Custom Motor Solutions

If our standard motor cannot meet your needs, we can customize the motor according to your requirements. Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Available Options

Please click the "Get a quote" button below to tell us your requirements.
