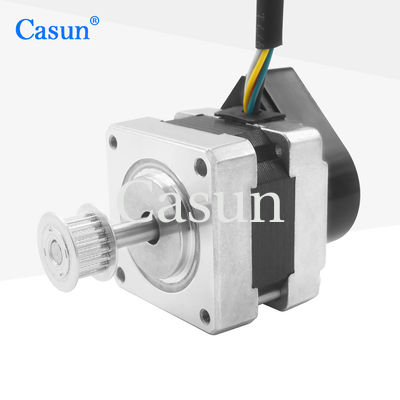

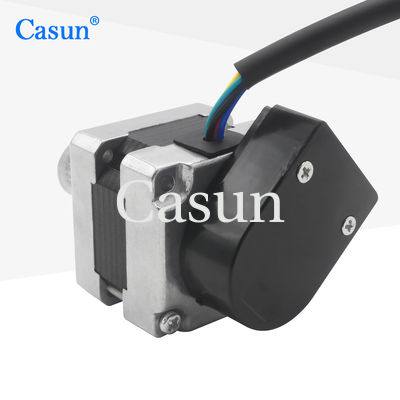

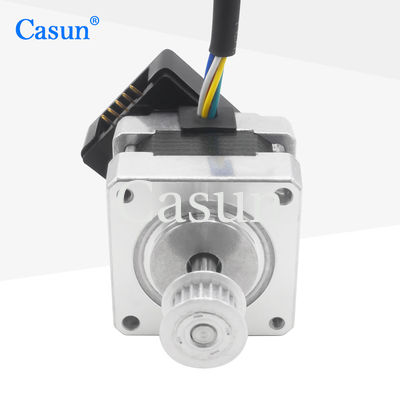

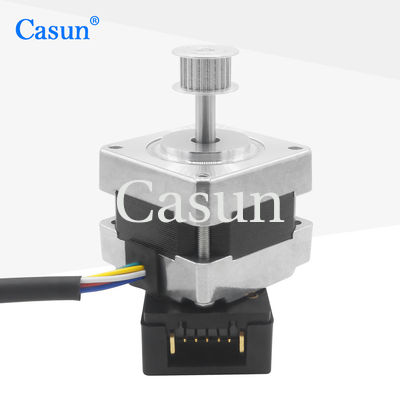

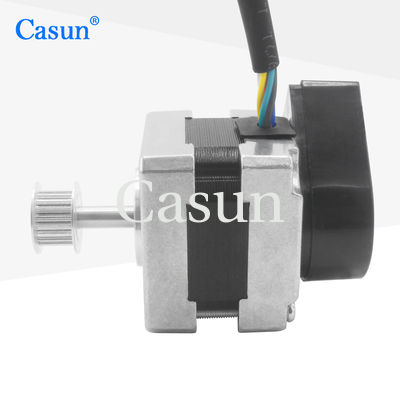

Hybrid Stepper Motor Nema16 105mN.m 8.75V Stepping Motor With Encoder And Gear

name

Hybrid Stepper Motor Nema16 105mN.m 8.75V Stepping Motor With Encoder And Gear

Brand Name: Casun
Model Number: 39SHE6320-24AQ
MOQ: 5PC
Price: $23.4~$25.36
Payment Terms: D/A, T/T, L/C, D/P
Supply Ability: 10000+PCS+Month
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE,ROHS,ISO
Holding Torque:
105 MN.m
Voltage:
8.75V
Current:
0.5A
Body Length:
32mm
Weight:
0.18 Kg
Phase Resistance:
12.5 Ohm ±10% （At 20℃）
Shaft Length:
24 Mm
Phase:
2
Insulation Class:
Class B
Packaging Details:
Carton:38x29x18cm
Highlight:

Nema 16 Stepper Motor

,

8.75V Nema 16 Stepper Motor

,

Stepping Motor With Encoder

Product Description
Casun Nema16 Hybrid Stepper Motor with Encoder and Gear
The Casun Nema16 Hybrid Stepper Motor combines encoder feedback and precision gearing to deliver exceptional motion control in a compact package. With 105 mN.m torque and 8.75 V operation, this motor is engineered for robotics, automation, and high-accuracy positioning systems where reliability and performance are critical.
Key Features
  • Bipolar or unipolar versions available
  • Hybrid stepper construction
  • Available in single- or double-shaft versions
  • CE and RoHS approved
  • Customizations on request
Motor Dimensions
Hybrid Stepper Motor Nema16 105mN.m 8.75V Stepping Motor With Encoder And Gear 0
Motor Specifications
Step Angle1.8°
Frame Size32 mm
Number of Phase2 Phase
Rated Current0.5 Amp
Holding Torque105 mN.m
Resistance17.5 ohm
Inductance9.6 mH
Rotor Inertia20 g.cm²
Motor Weight0.18 kg
ConnectionBipolar
Operating Specifications
Motor Operating Conditions:
Step Angle: 1.8°
Maximum Temperature: 80°C maximum
Ambient Temperature: -20°C to 50°C
Storage Temperature: -20°C to 100°C
Humidity Range: 85% or less, non-condensing
Magnet Wire Insulation: Class B 130°C
Insulation Resistance: 100M Ohm at 500 VDC
Dielectric Strength: 500 VDC for 1 min
Encoder Specifications:
Voltage: 5V
Output: A + A - B + B - Z + Z -
Available Submodels
Hybrid Stepper Motor Nema16 105mN.m 8.75V Stepping Motor With Encoder And Gear 1
Custom Motor Solutions
If our standard motor cannot meet your requirements, we can customize the motor according to your specific needs. Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, and more.
Available Options
Hybrid Stepper Motor Nema16 105mN.m 8.75V Stepping Motor With Encoder And Gear 2
Encoder
Hybrid Stepper Motor Nema16 105mN.m 8.75V Stepping Motor With Encoder And Gear 3
Brake
Hybrid Stepper Motor Nema16 105mN.m 8.75V Stepping Motor With Encoder And Gear 4
Gearbox
Hybrid Stepper Motor Nema16 105mN.m 8.75V Stepping Motor With Encoder And Gear 5
Shaft
Please click the "Get a quote" button below to tell us your requirements.
