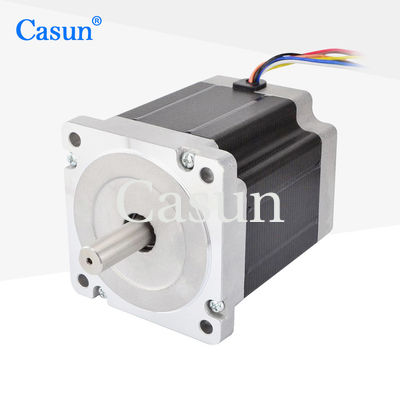

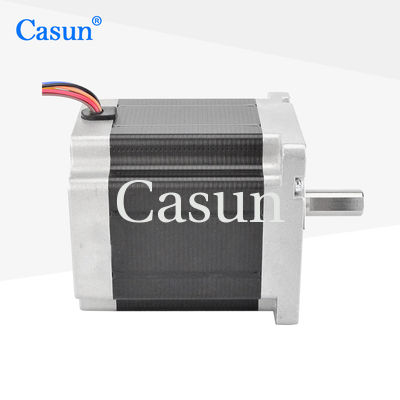

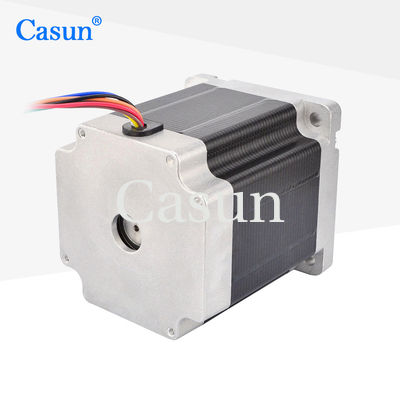

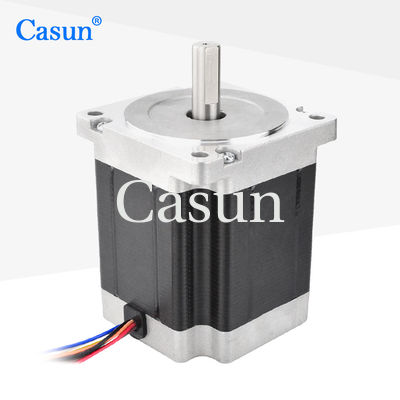

NEMA 34 Hybrid Stepping Motor 7N.M 98mm Body 1.8 Degree For Machine Tools

name

NEMA 34 Hybrid Stepping Motor 7N.M 98mm Body 1.8 Degree For Machine Tools

Brand Name: Casun
Model Number: 86SHD4201-37B
MOQ: 1PC
Price: $9.49-$14
Payment Terms: D/A, T/T, L/C, D/P
Supply Ability: 40000+PCS+Month
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE,ROHS,ISO
Step Angle:
1.8°
Number Of Phase:
2
Rated Current:
3.0A
Body:
98mm
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Packaging Details:
Carton:36x29x14cm
Highlight:

NEMA 34 Hybrid Stepping Motor

,

98mm Body Hybrid Stepping Motor

Product Description

NEMA 34 Hybrid Stepping Motor 7N.M 98mm Body 1.8 Degree For Machine Tools

The NEMA 34 stepper motors typically have high torque output and can provide sufficient power to drive heavy loads.

The movement is achieved through precise angle control, and each step of movement is precisely defined.



Features:

  • Bipolar or unipolar versions available

  • We provide customized services and are open to contract manufacturing

  • Each stepper motor model is suitable for diverse scenarios

  • Customized service offerings

  • Customizations on request

Dimensions

NEMA 34 Hybrid Stepping Motor 7N.M 98mm Body 1.8 Degree For Machine Tools 0







Motor Specifications



Step Angel



1.8 °

Fram Size



86 mm

Number of Phase



2 Phase

Rated Current



3.0A

Holding Torque



7N.m

Resistance



1.5ohm

Inductance



15mH

Rotor Inertia



1700 g-cm²

Motor weight



2.9 kg

Number of leads



4

Connection



Bipolar



Operating Specifications

Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min









Torque Curves







Submodels



Model Holding Torque Step Angle Length Type of Shaft Rated Current
86SHD4003-32 4.0N.m 1.8° 69mm Key Shaft-32mm 4.0A
86SHD4101-32 4.5N.m 1.8° 76mm Key Shaft-32mm 4.0A
86SHD4201-37 5.6N.m 1.8° 98mm Key Shaft-37mm 4.0A
86SHD4314-37 6.8N.m 1.8° 112mm Key Shaft-37mm 5.0A
86SHD4404-37 8.0N.m 1.8° 127mm Key Shaft-37mm 5.0A
86SHD4505-37 12.0N.m 1.8° 150mm Key Shaft-37mm 5.5A



Download





If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
            Encoder          |               Brake           |              Gearbox            |           Shaft

NEMA 34 Hybrid Stepping Motor 7N.M 98mm Body 1.8 Degree For Machine Tools 1 NEMA 34 Hybrid Stepping Motor 7N.M 98mm Body 1.8 Degree For Machine Tools 2 NEMA 34 Hybrid Stepping Motor 7N.M 98mm Body 1.8 Degree For Machine Tools 3 NEMA 34 Hybrid Stepping Motor 7N.M 98mm Body 1.8 Degree For Machine Tools 4
