【42SHD4910】NEMA 17 Hybrid Stepper Motor 2 phase 42*42*21mm Ultrathin Body 9Ncm for CNC Kit

【42SHD4910】NEMA 17 Hybrid Stepper Motor 2 phase 42*42*21mm Ultrathin Body 9Ncm for CNC Kit

Place of Origin:

CHINA

Brand Name:

Casun

Certification:

CE,ROHS,ISO

Model Number:

42SHD4910-14B

Contact Us

Request A Quote
Product Details
Step Angel:
1.8°
Holding Torque:
90mN.m
Current:
1.0A
Motor Length:
21mm
Shaft:
Milling Flat Shaft 14mm Length
Payment & Shipping Terms
Minimum Order Quantity
1PC
Price
$3.14-$5
Packaging Details
Carton:36x29x14cm
Delivery Time
7-15 days
Payment Terms
D/A, T/T, L/C, D/P
Supply Ability
40000+PCS+Month
RELATED PRODUCTS
Contact Us
86-020-36907671
Contact Now
Product Description

The 42mm Hybrid Stepper Motor Series offers powerful holding torque in a variety of sizes.

Use with a microstepping driver to reduce vibration and achieve higher step resolution.

Choose a baseline version or request your own customized configuration.



Features:

  • High torque and high precision

  • For high-tech industry and electronic industry equipment

  • Available in single or double shaft versions

  • Professional drivetrain solution specialist

  • Established in China for 12 years and has served more than 800 customers

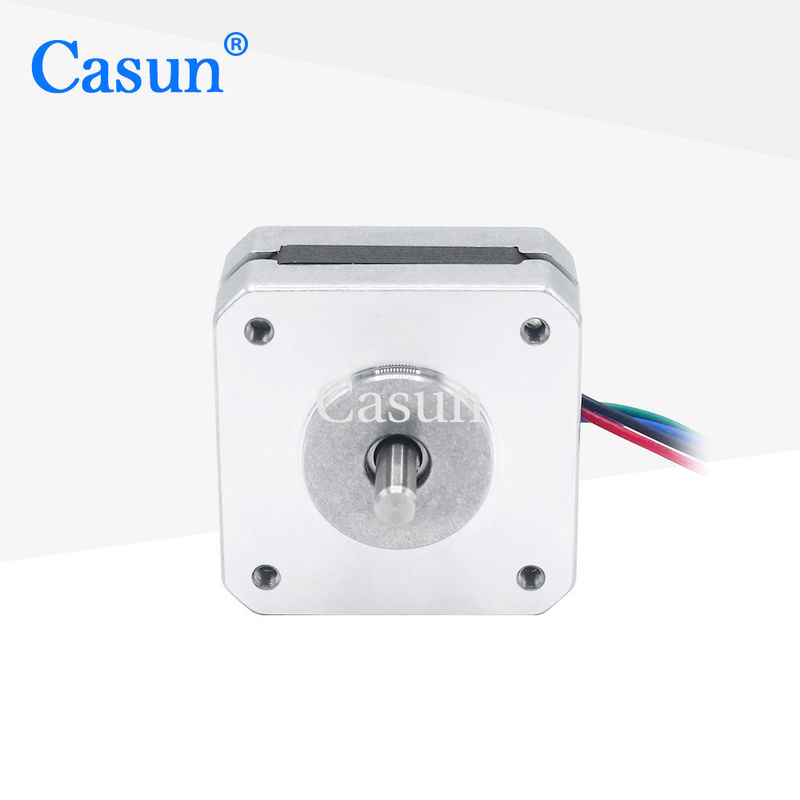

Appearance

【42SHD4910】NEMA 17 Hybrid Stepper Motor 2 phase 42*42*21mm Ultrathin Body 9Ncm for CNC Kit 0

Dimensions

【42SHD4910】NEMA 17 Hybrid Stepper Motor 2 phase 42*42*21mm Ultrathin Body 9Ncm for CNC Kit 1

Motor Specifications



Step Angel

1.8 °

Fram Size

42 mm

Number of Phase

2 Phase

Rated Current

1.0 A

Holding Torque

90 mN.m

Resistance

3.3 ohm

Inductance

3.0 mH

Rotor Inertia

38 g-cm²

Motor weight

0.2 kg

Number of leads

4

Connection

Bipolar

Operating Specifications

Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min







Torque Curves













Submodels

Model Holding Torque Step Angle Motor Length Type of Shaft Rated Current
42SHD4950 0.13N.m 1.8° 20mm D Shaft-20mm 1.0A
42SHD4003 0.26N.m 1.8° 34mm D Shaft-20mm 0.4A
42SHD0261 0.45N.m 1.8° 40mm D Shaft-20mm 1.68A
42SHD4425 0.59N.m 1.8° 48mm D Shaft-24mm 2.0A
42SHD4813 0.8N.m 1.8° 60mm D Shaft-24mm 2.1A





Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder

Brake

Gearbox

Shaft

【42SHD4910】NEMA 17 Hybrid Stepper Motor 2 phase 42*42*21mm Ultrathin Body 9Ncm for CNC Kit 2 【42SHD4910】NEMA 17 Hybrid Stepper Motor 2 phase 42*42*21mm Ultrathin Body 9Ncm for CNC Kit 3 【42SHD4910】NEMA 17 Hybrid Stepper Motor 2 phase 42*42*21mm Ultrathin Body 9Ncm for CNC Kit 4 【42SHD4910】NEMA 17 Hybrid Stepper Motor 2 phase 42*42*21mm Ultrathin Body 9Ncm for CNC Kit 5
